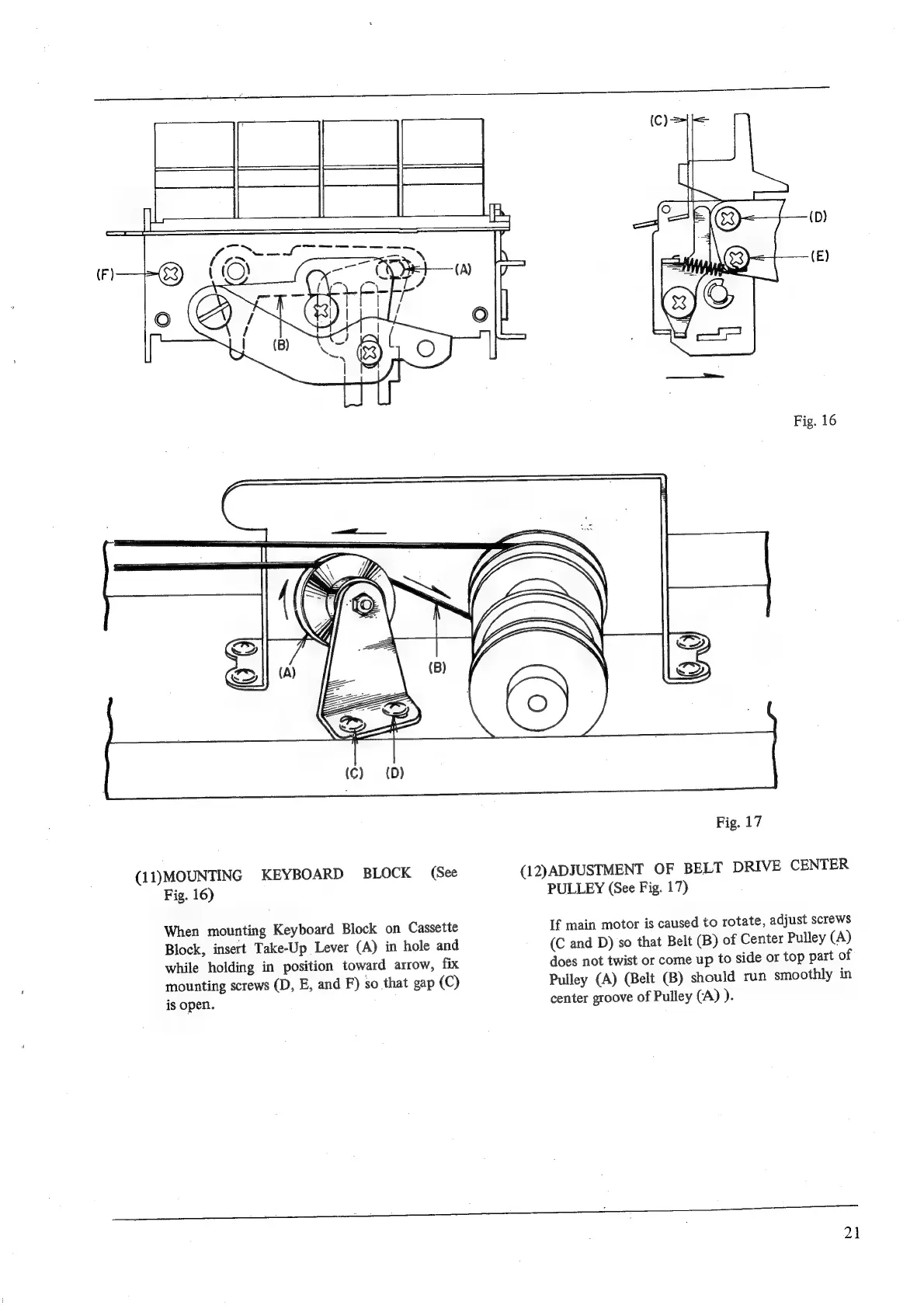

Fig. 16
1)MOUNTING
KEYBOARD
BLOCK
(See
Fig.
16)
When
mounting
Keyboard
Block
on
Cassette
Block,
insert
Take-Up
Lever
(A)
in
hole
and
while
holding
in
position
toward
arrow,
fix
mounting
screws
(D,
E,
and
F)
so
that
gap
(C)
is
open.
Fig. 17
(12)ADJUSTMENT
OF
BELT
DRIVE
CENTER
PULLEY (See Fig. 17)
If
main
motor
is
caused
to
rotate,
adjust
screws
(C
and
D)
so
that
Belt
(B)
of
Center
Pulley
(A)
does
not
twist
or
come
up
to
side
or
top
part
of
Pulley
(A)
(Belt
(B)
should
run
smoothly
in
center
groove
of
Pulley
(A)
).
