Akai X-360D - Control Locations; Control Diagram; Control List

OSS8OQ CG O@G8OQHOO

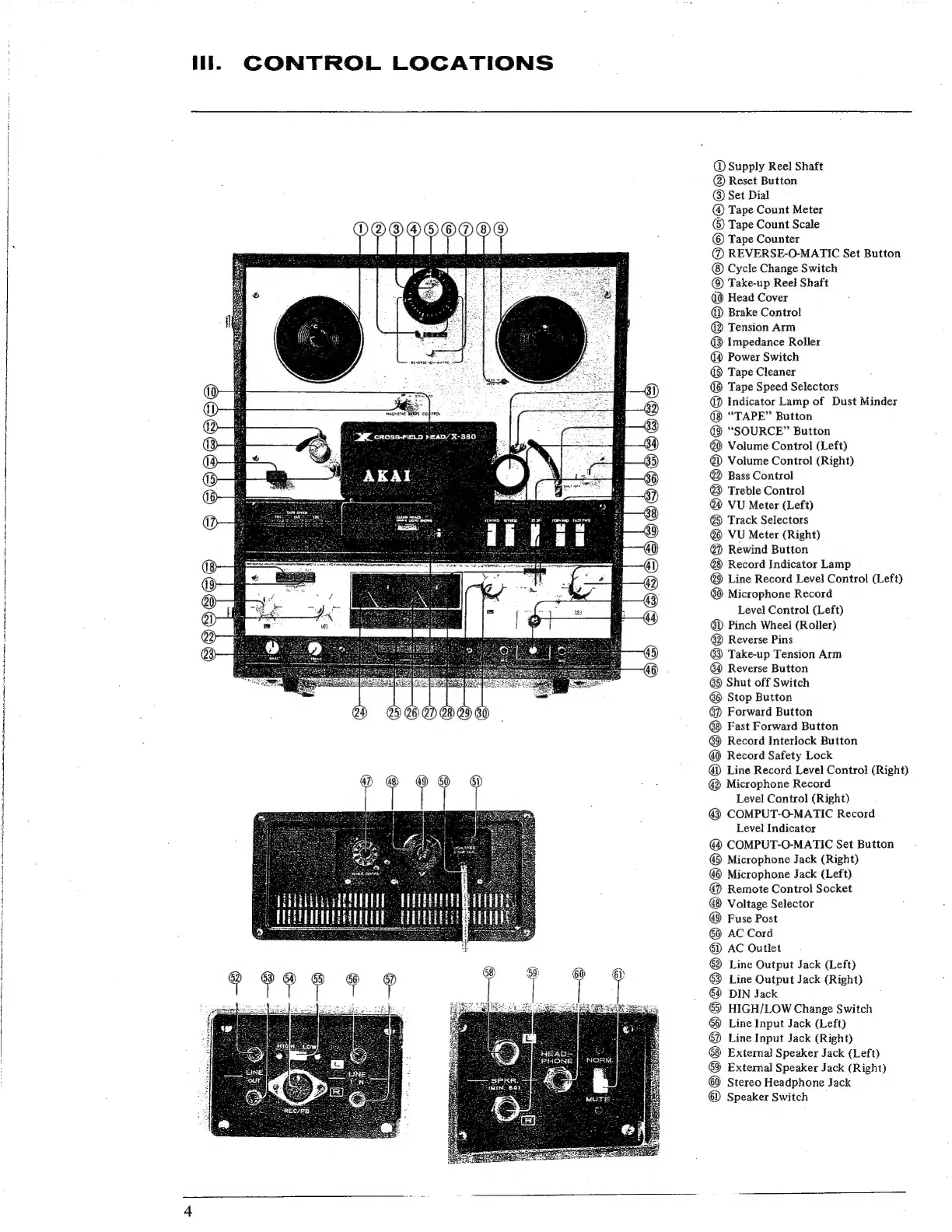

CONTROL LOCATIONS
DAOMHOOD®O®
SGOSSOSSSeeeese
e~
@ Supply Reel Shaft
@ Reset Button
@ Set Dial
@ Tape Count Meter
©) Tape Count Scale
© Tape Counter
@ REVERSE-O-MATIC Set Button
Cycle Change Switch
© Take-up Reel Shaft
d) Head Cover
@) Brake Control
@ Tension Arm
@3 Impedance Roller
@) Power Switch
@} Tape Cleaner
8 Tape Speed Selectors
@ Indicator Lamp of Dust Minder
3 “TAPE” Button
@ “SOURCE” Button
@) Volume Control (Left)
@) Volume Control (Right)
@) Bass Control
@) Treble Control
@ VU Meter (Left)
@) Track Selectors
@ VU Meter (Right)
@) Rewind Button
Record Indicator Lamp
@) Line Record Level Control (Left)
Microphone Record
Level Control (Left)
@)) Pinch Wheel (Roller)
@) Reverse Pins
63 Take-up Tension Arm
6) Reverse Button
@ Shut off Switch
G6 Stop Button
6? Forward Button
@§ Fast Forward Button
Record Interlock Button
@ Record Safety Lock
@ Line Record Level Control (Right)
@) Microphone Record
Level Control (Right)
@ COMPUT-O-MATIC Record
Level Indicator
@) COMPUT-O-MATIC Set Button
@® Microphone Jack (Right)
Microphone Jack (Left)
@ Remote Control Socket
Voltage Selector
Fuse Post
6 AC Cord
6) AC Outlet
6) Line Output Jack (Left)
63 Line Output Jack (Right)
@ DIN Jack
6} HIGH/LOW Change Switch
6 Line Input Jack (Left)
6) Line Input Jack (Right)
68 External Speaker Jack (Left)
6) External Speaker Jack (Right)
Stereo Headphone Jack
Speaker Switch
