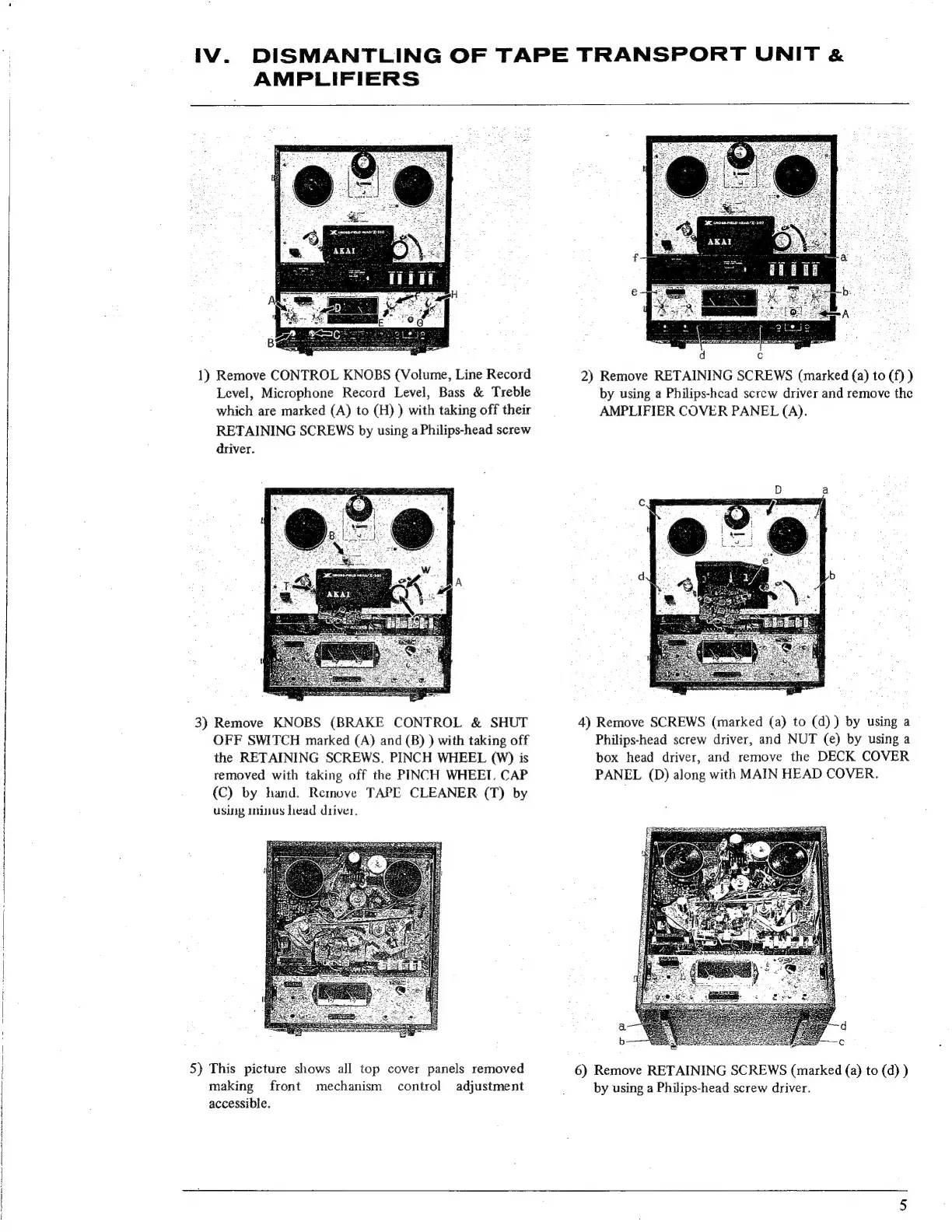

IV. DISMANTLING OF TAPE TRANSPORT UNIT &
AMPLIFIERS
: d c
1) Remove CONTROL KNOBS (Volume, Line Record 2) Remove RETAINING SCREWS (marked (a) to (f) )
Level, Microphone Record Level, Bass & Treble by using a Philips-hcad screw driver and remove the
which are marked (A) to (H) ) with taking off their AMPLIFIER COVER PANEL (A).
RETAINING SCREWS by using a Philips-head screw
driver.
3) Remove KNOBS (BRAKE CONTROL & SHUT 4) Remove SCREWS (marked (a) to (d)) by using a
OFF SWITCH marked (A) and (B) ) with taking off Philips-head screw driver, and NUT (e) by using a
the RETAINING SCREWS. PINCH WHEEL (W) is box head driver, and remove the DECK COVER
removed with taking off the PINCH WHEET, CAP PANEL (D) along with MAIN HEAD COVER.
(C) by hand. Remove TAPE CLEANER (T) by
using minus head driver,
5) This picture shows all top cover panels removed 6) Remove RETAINING SCREWS (marked (a) to (d) )
making front mechanism control adjustment by using a Philips-head screw driver.
accessible.
