Akai X-360D

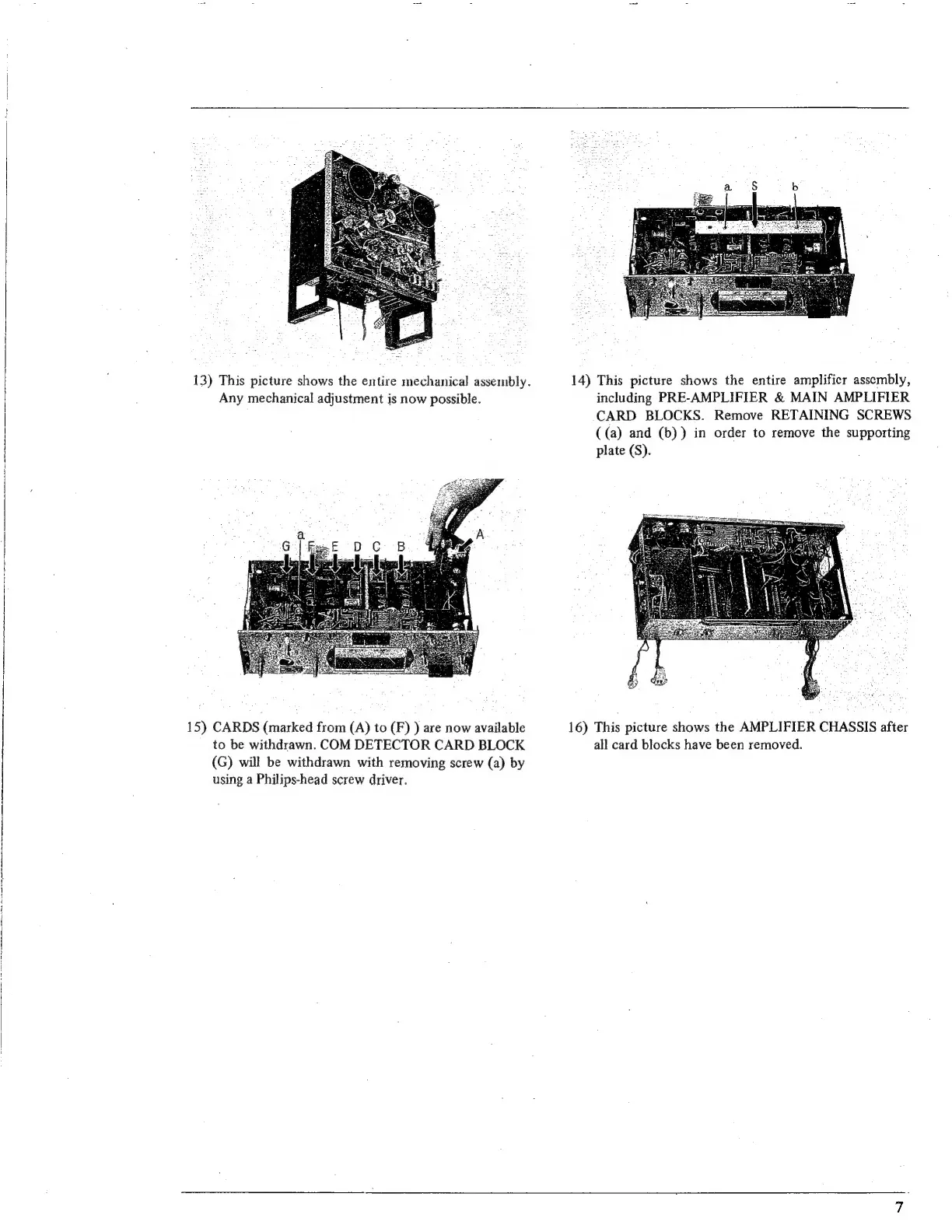

13) This picture shows the entire mechanical assembly. 14) This picture shows the entire amplificr assembly,
Any mechanical adjustment is now possible. including PRE-AMPLIFIER & MAIN AMPLIFIER
CARD BLOCKS. Remove RETAINING SCREWS
((a) and (b)) in order to remove the supporting
plate (S).
15) CARDS (marked from (A) to (F) ) are now available 16) This picture shows the AMPLIFIER CHASSIS after
to be withdrawn. COM DETECTOR CARD BLOCK all card blocks have been removed.
(G) will be withdrawn with removing screw (a) by
using a Philips-head screw driver.
