HOW to trigger an INPUT:
To trigger input 1,2 and 4 short it momentarily to ground.
To trigger input 3, short both 1 and 2 momentarily to ground.
To trigger input 5, short both 1 and 4 momentarily to ground.
To trigger input 6, short both 2 and 4 momentarily to ground.
The above single and 2 input combination (total 6 inputs) can be triggered directly
using the push button that is available from our web site. The input can be
expandable to 48 inputs using IN6 input board.
How to convert SR6 input into IR MODE (pause.prev,next):
<Use this mode if you want to use NEXT, PREV, PAUSE/PLAY, STOP and
VOL+/- functions using push buttons through the SR6 built in digital input.>

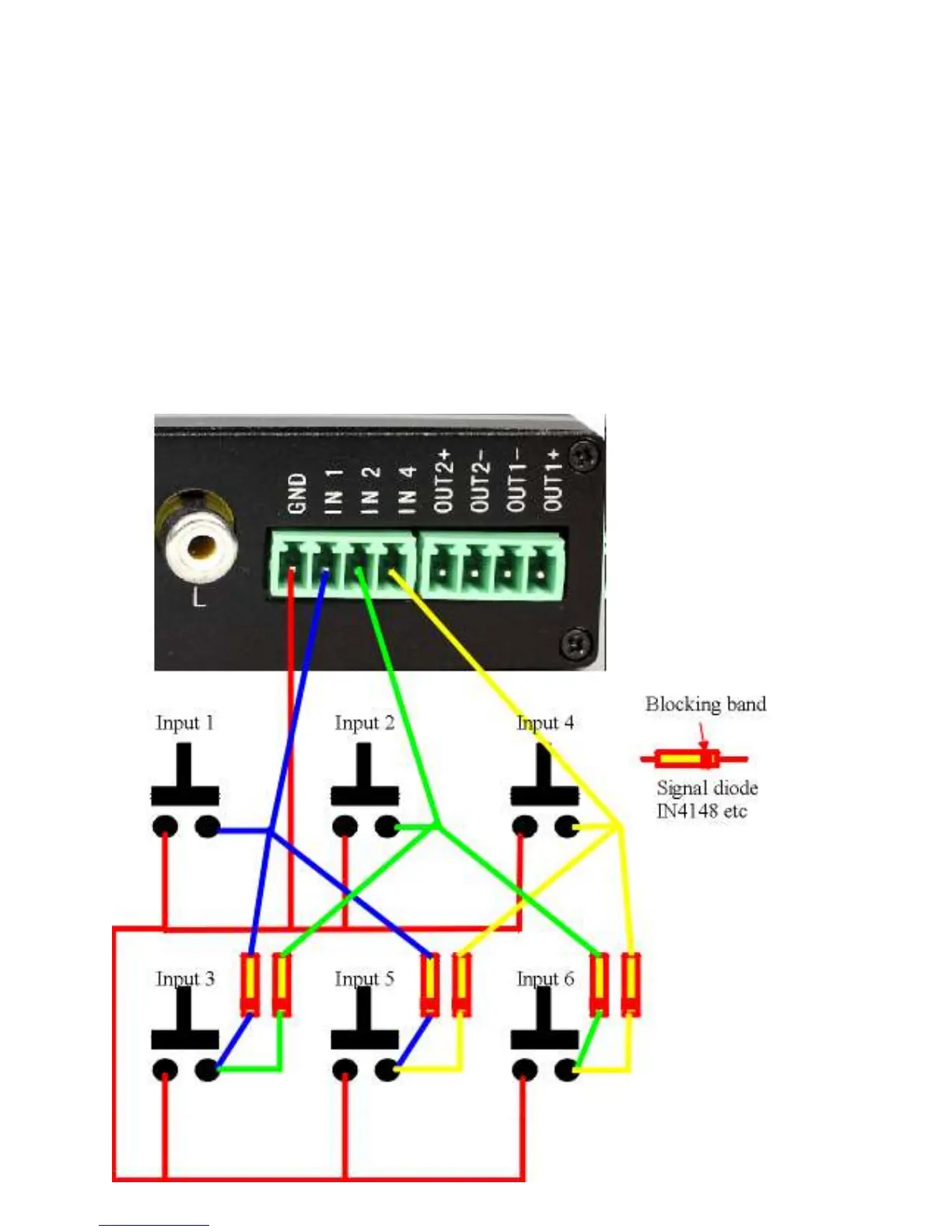

SR6 INPUT using single pole push button and diode:
Note:
Use any small signal diode such as IN4148 etc.
