Spare parts list
Item Part No Description Comment
96 00 4496 De-capper head assembly complete
1. 96 00 4470 Leaf Spring
2. 95 27 0557 Screw
3. 95 27 0558 Screw
4. 96 00 4475 Spring stop std. 9600 4499 for 16x100mm
Hemogard tubes.
5. 96 00 4472 Needle std. 9600 6172 for16x100 mm
Hemogard tubes.

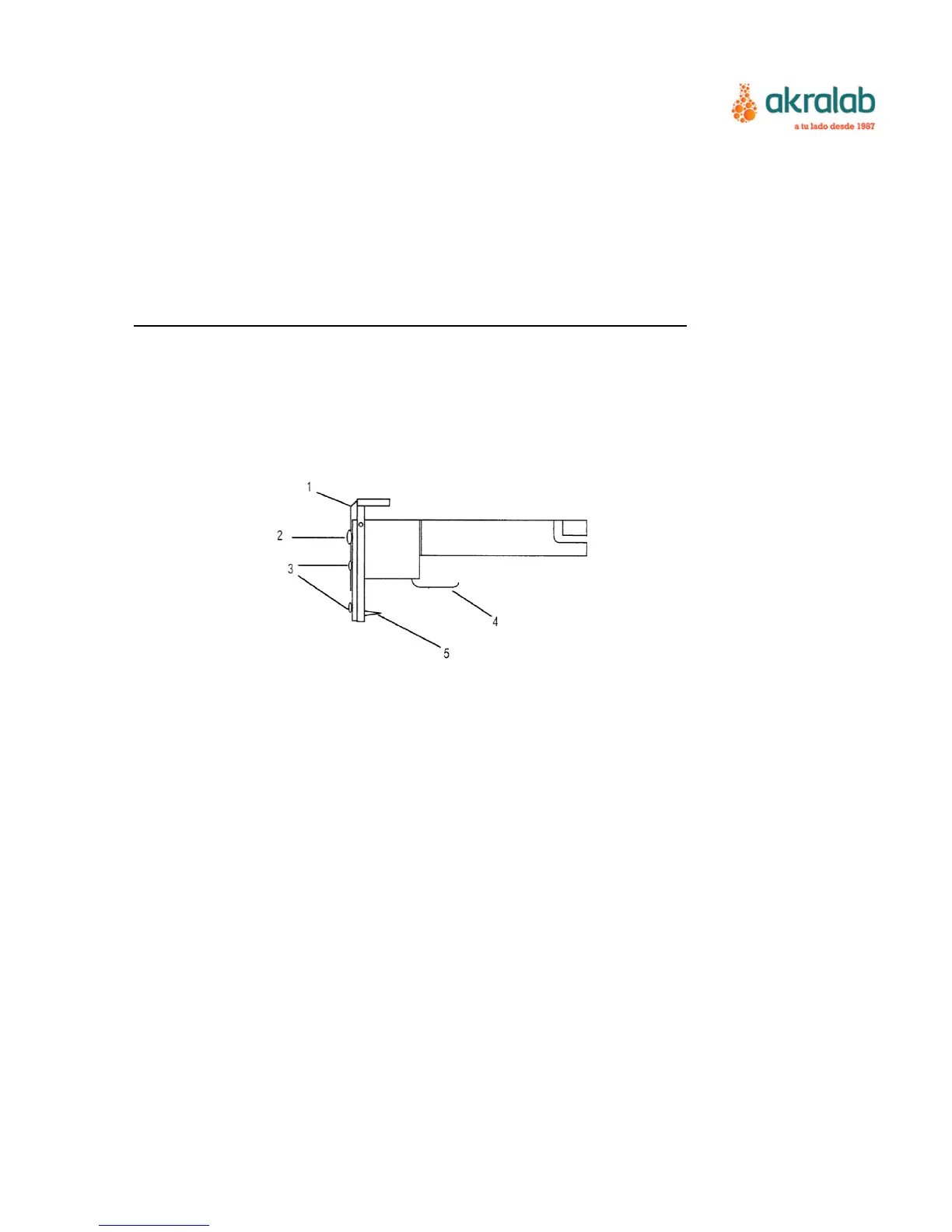

Figure 8: De-capper head assembly
96 00 4393 Carousel for 10 ml tubes yellow marking
96 00 4394 Carousel for 7 ml short tubes grey marking
96 00 4395 Carousel for 7 ml long tubes red marking
96 00 4484 Carousel for 5 ml tubes blue marking
96 00 4445 Pull spring under the disk drive
96 00 4468 Rubber pad
96 00 4397 Plexiglass cover
96 00 44 61 Hinge screw for the plexiglass cover
96 00 4509 Chute for caps right-hand side standard
96 00 4490 Chute for caps left-hand side optional
96 00 4463 Home position pin black pin on the disk drive
95 83 00 26 Fuse, T1A/250V slow blow
