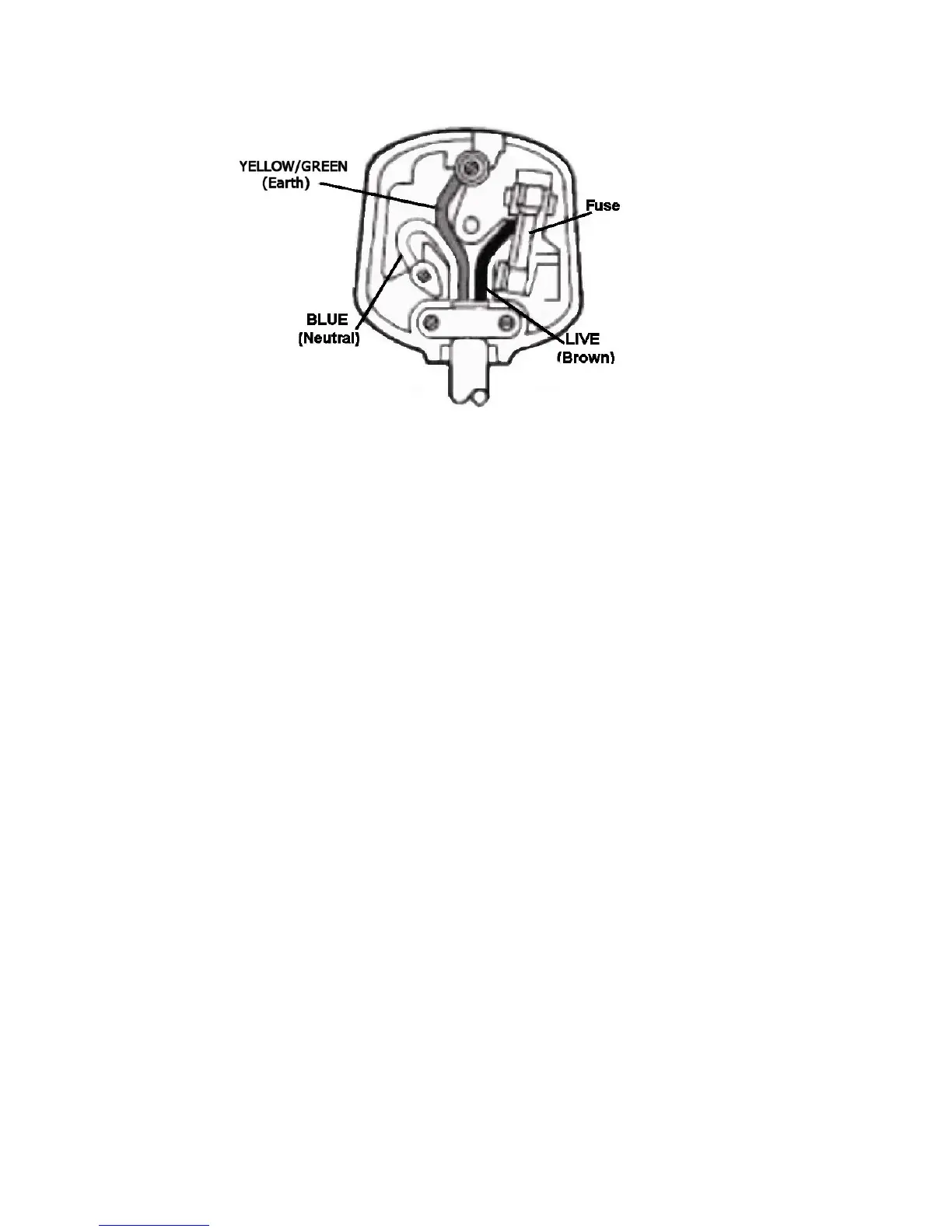

13. Mains Plug Wiring Diagram
If it becomes necessary to replace the Mains Plug, it should be
wired in accordance with the diagram as in Fig 24.
The Brown wire (Live) should be connected to the terminal (L)
The Blue wire (Neutral) should be connected to the terminal (N)
The Green/Yellow wire (Earth) should be connected to the
terminal (E).
This TV is a “CLASS 1” apparatus and MUST be earthed
20
Fig 24
