Quick Guide
A01/A02/A03
5

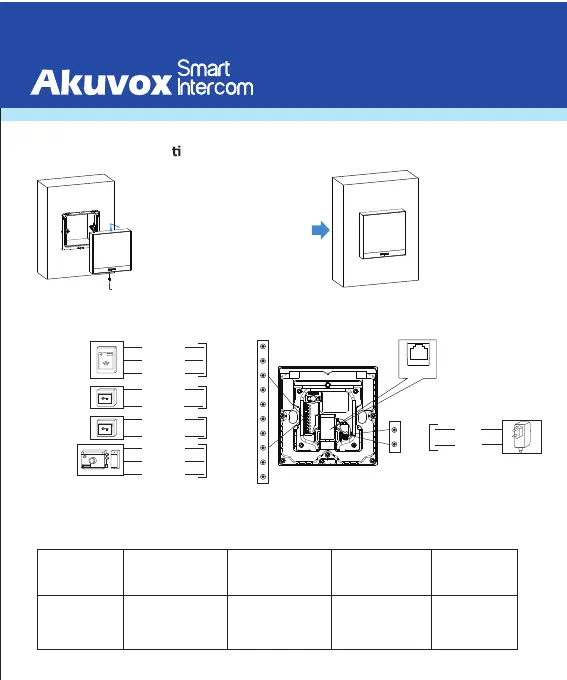

Step3: Device Moun ng
Push the device against the
hook hanger and tighten the
device with a M3x4 headless
screw
sing Allen wrench as
indicated
in the drawing.
Installation completed.
Device Wiring
+12V
GND
Voltage
Transformer
WG_D1
WG_D0
GND
Relay_IN2
GND
Relay_IN1
GND
NC
NO
COM
Wiegand
Card Reader
Exit
Exit
Door Lock
Wiegand
Input/Output
Doorbell 2
Input
Doorbell 1
Input
Relay
Output
Power
Input
Right
Left
Ethernet
Wire Length & AWG Table
Please follow the properly measured wire gauge/length to install device:
12V 1A Adapter
20 AWG 22 AWG 24 AWG 26 AWG
≤50m
≤40m
≤30m
≤15m
