PLUMBING ZONE
Plumbing Zone

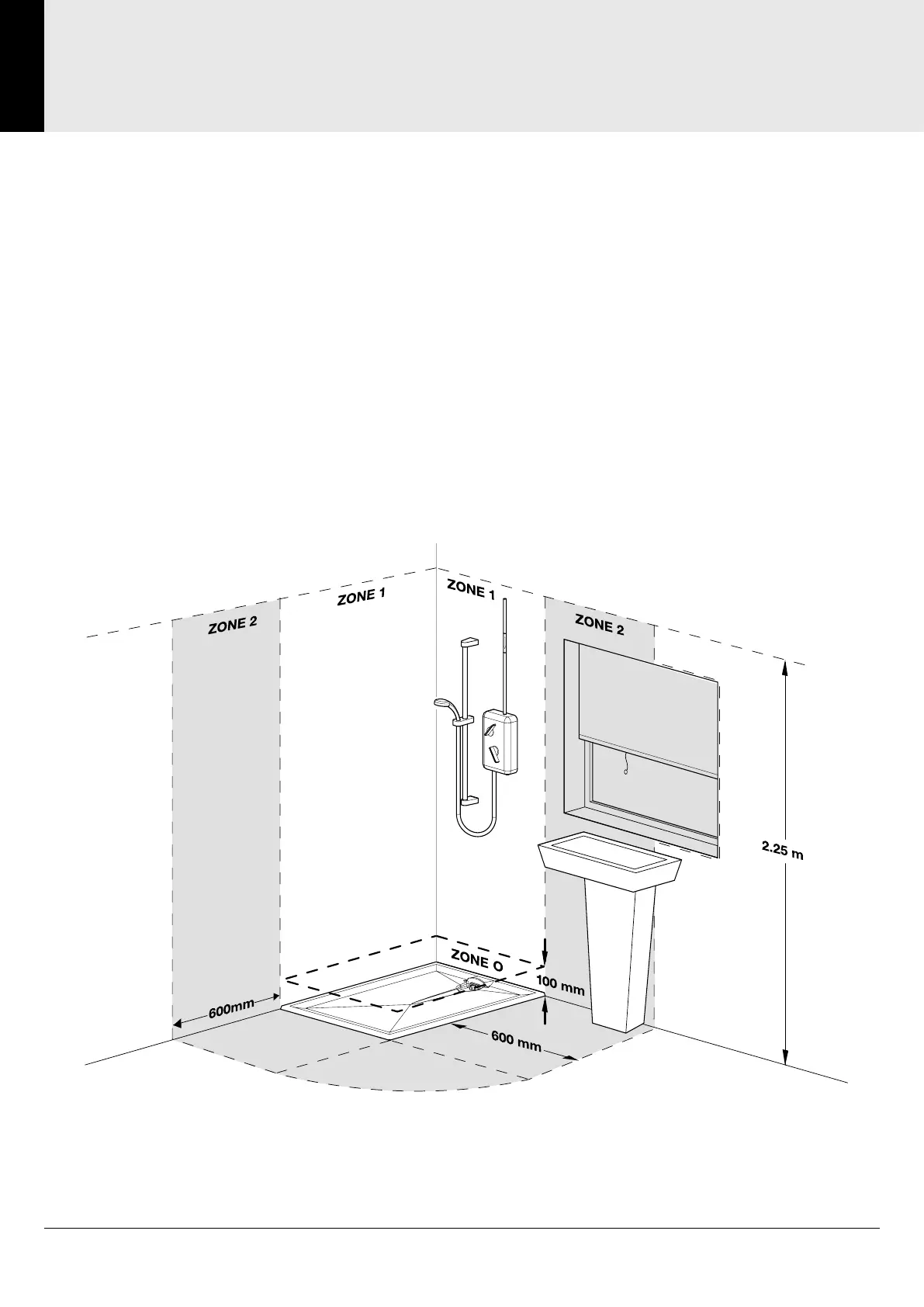

This product is rated IP45 and suitable to be installed in Zone 1, 2 or Zone 3 of a shower room only if these
instructions are fully complied with.
The unit must be located away from the direct line of water jets.
Zone 1 lies above Zone 0 up to a minimum of 2.25m or to the height of the fixed shower head from the
finished floor level, which ever is greater.
If the shower has no tray then zone 1 extends to 1.2m around the fixed shower head.
Zone 2 is the area extending 0.6m beyond Zone 1 and up to the same height as Zone 1.
FOR GUIDANCE ONLY- PLEASE REFER TO BS7671 FOR FURTHER DETAILS
