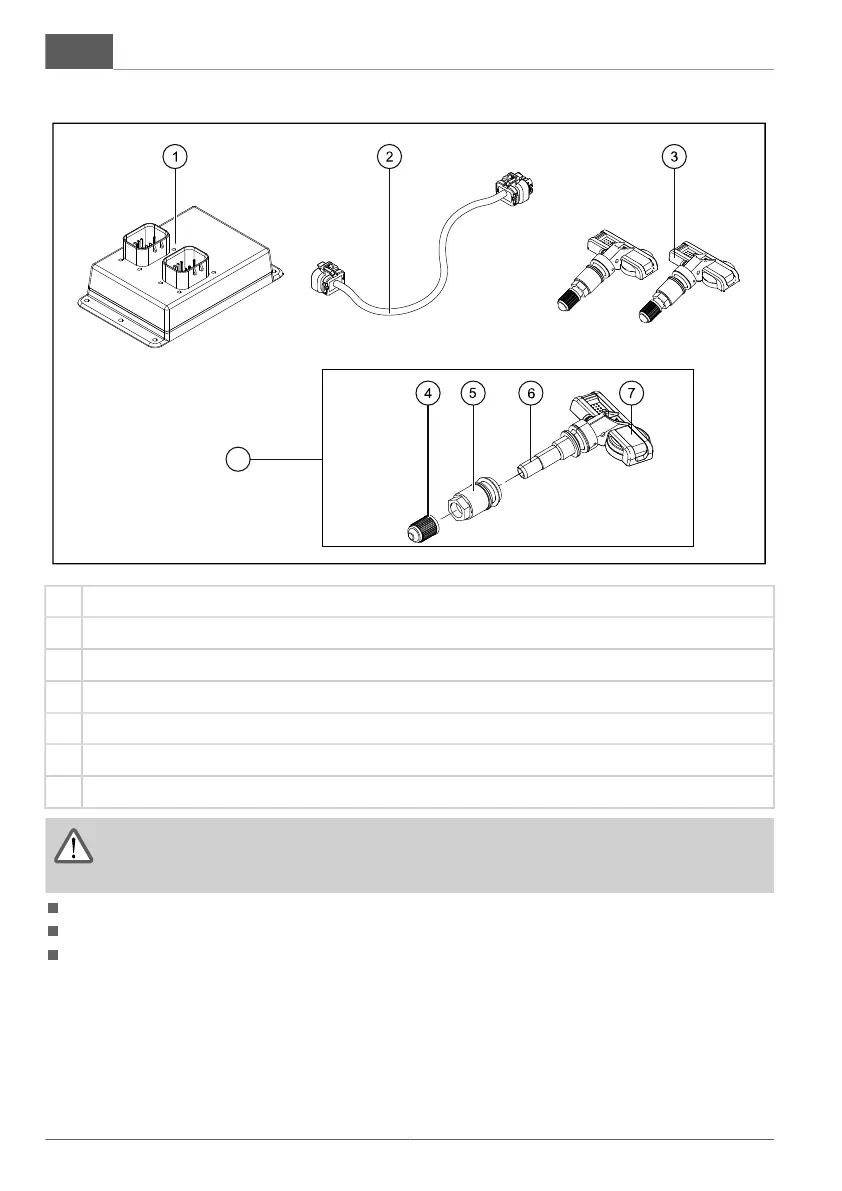

Installation of the TPMS receiver and TPMS sensors
1 TPMS receiver
2 TPMS wiring harness
3 TPMS sensor with valve (2 pieces); additional sensors (2 pieces each) optionally available
4 Valve cap
5 Screw nut with sealing ring
6 Valve
7 TPMS sensor
CAUTION!
Do not lay hoses and cables over sharp-edged corners!
Use edge protection!
Do not lay wiring harness over moving or hot parts.
Do not strain wiring harness due to pressure, pulling or shearing.
Never attach wiring harness to a brake line.
