Installing the TPMS receiver
ADVICE
Before installing the TPMS receiver, the
2LINK box must be installed, see installa-
tion instructions 695469.
Depending on the application, the TPMS receiver
can be connected to the ATC or an energy supply.

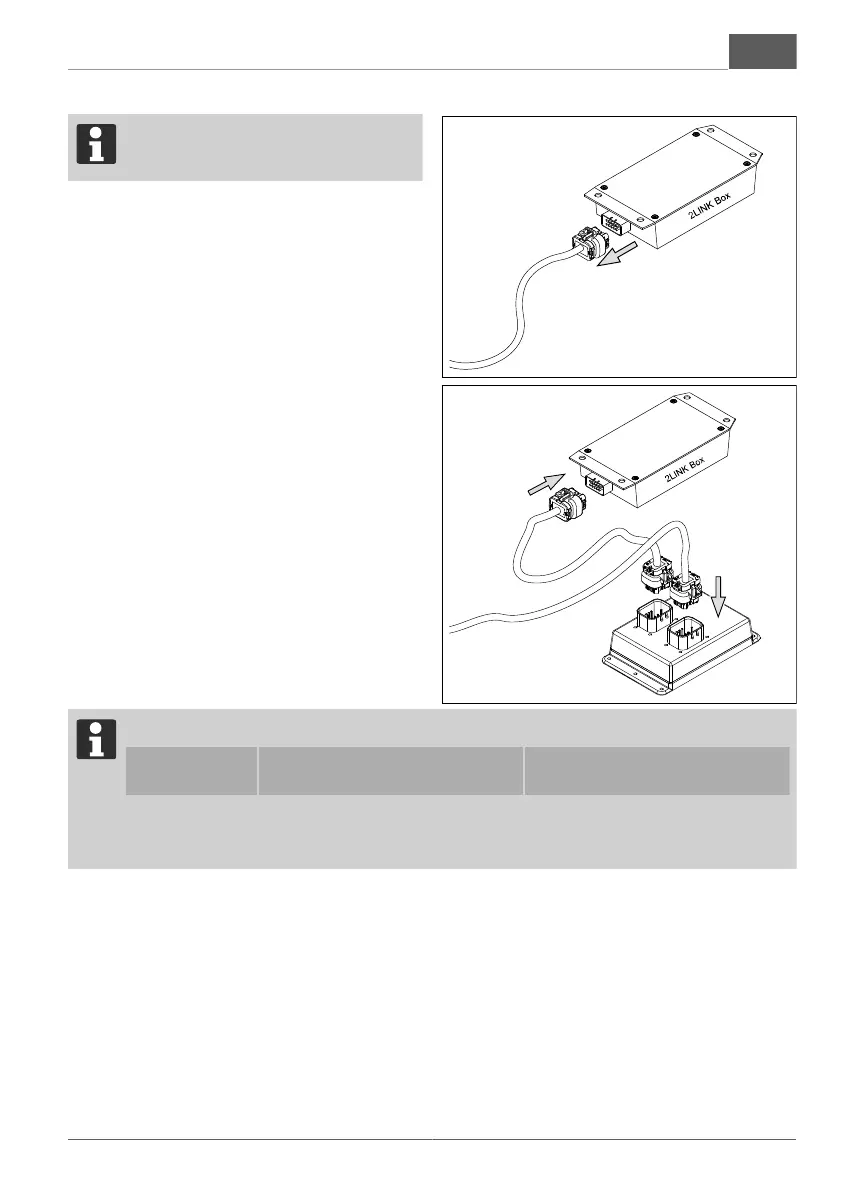

1. Install the TPMS receiver (1) between the
2LINK box and an energy supply (ATC, 12-volt
battery). Please note the cable length.
2. Pull the 2LINK wiring harness out of the 2LINK
box.
3. Plug the 2LINK wiring harness into the TPMS
receiver (1).
4. Plug one end of the TPMS wiring harness (2)
into the TPMS receiver (1) and plug the other
end into the 2LINK box.
5. Fix the wiring harness in place.
ADVICE
If no ATC is installed, the power supply must be connected directly via the 13-pin connector plug:
Wire on the 2LINK wiring har-
ness
Pin on 13-pin connector plug
12 V (+) ATC_12V (red) 9 (continuous pulse)
Earth (-) ATC_GND (black) 13
