Albis SceneGate Micro - Rear View

7
3.2 Rear View

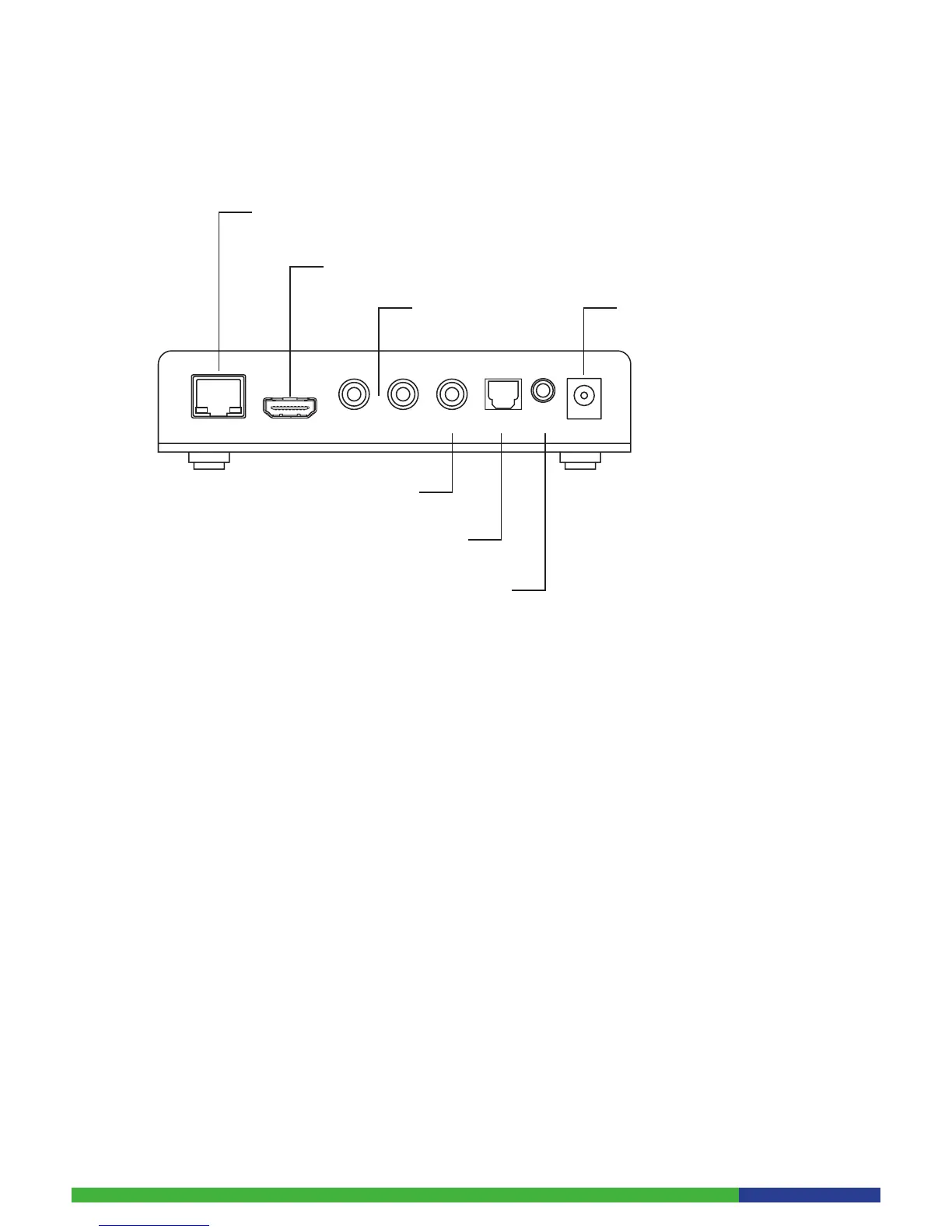

The rear side allows you to connect all your home entertainment equipment
to the STB.
LAN HDMIR CVBS S/PDIF IR DC12VL
Network Connector 10/100Base-T
(connect a lead from here to your network connection socket)
CVBS Video Output
Digital Audio Output
(for an optical connection to
your audio receiver)
HDMI
TM
1.3
(output connector for High Definition)
Analog Audio Output
(right / left)
Power Jack
(for the power lead)
IR
(for connection of an
external Infrared Receiver)
