■ Terminate the unused inputs with 75Ω loads
■ Connect the power supply unit and then connect the amplifier to the mains plug
Programming via display
Programming corresponding to hardware 3.1 and firmware 1.4.
1. Press
↵
to activate the display
2. Press
↵
for three seconds to enter the programming
menu
The display will go out after 3 minutes if inactive, but the menu will remain open on the last
selected function. Press any key to resume to continue.
Password protection
When a password has been set, the password must be
entered before accessing the programming menu. To enter
the password press the keys
▲▼ then press
↵
to confirm
each password number.
Automatic channel research and memorization
AUTO-SCAN
The AUTO-SCAN function will scan the UHF band in input 1 and the BIII band in input 2.
The remote power is preset to OFF. It can be changed to ON in the INPUT V/U 1 and INPUT
V/U 2 menu. The remote power voltage is preset to 24V in the ADVANCED menu. The AUTO-
SCAN threshold is preset to 50dBµV in the ADVANCED menu. The LTE filter is preset to 5G
LTE700 in the ADVANCED menu.
To start the automatic programming, AUTO-SCAN, place
the pointer _ below AUTO. Press
↵
to proceed. The
amplifier will start scanning the channels of the UHF band
on input [1] and the III band on input [2].
To stop the AUTO-SCAN procedure press
↵
for 5 seconds.
ALCAD
. CAD-704 .
PASSWORD?
PSW: 000
TUNING
AUTO MAN
DC : OFF
>GAIN: 20dB

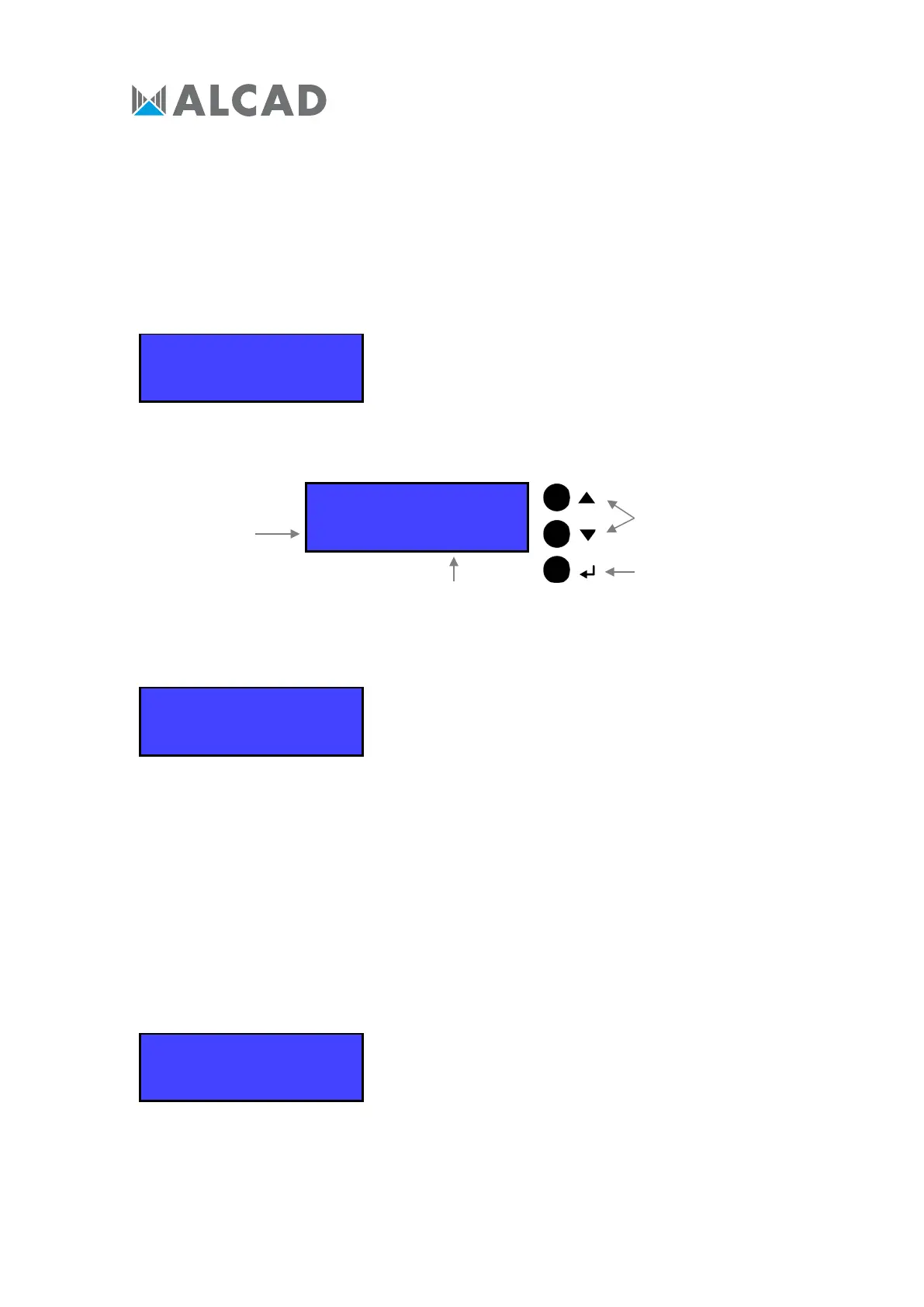

Function
selector
Pointer to scroll
figures
Keys for browsing
the menu
Key to confirm
