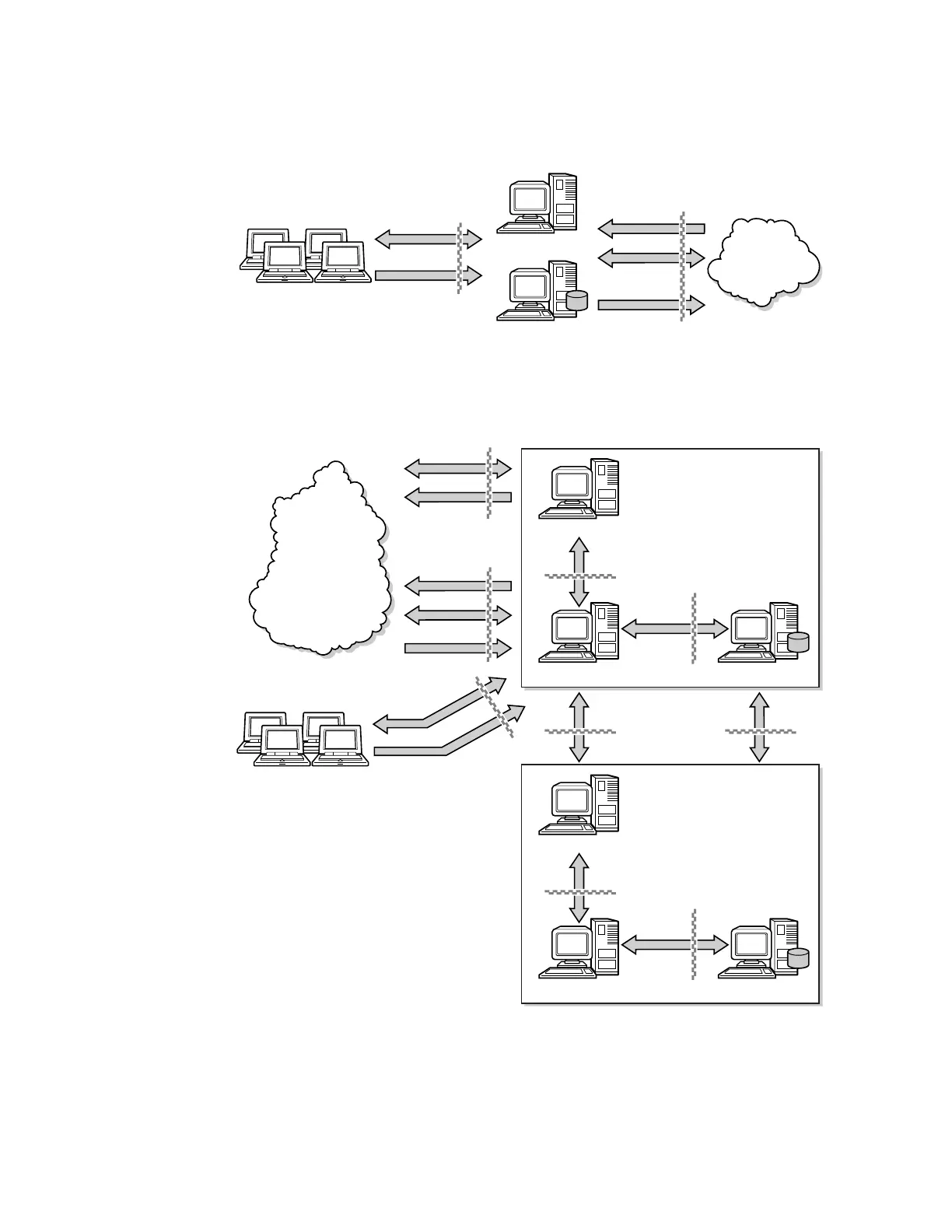

Figure 7-1 Firewalls and 5620 SAM standalone deployments
22668
5620 SAM Clients
JMS
EJB/HTTP
5620 SAM Server
5620 SAM Database
FTP
SNMP/SSH/
Telnet
SNMP traps
Managed
Network
Figure 7-2 Firewalls and 5620 SAM redundant deployments
22667
5620 SAM Server 5620 SAM Database
5620 SAM Auxiliary
5620 SAM Clients
TCP
(Oracle)
ftp/tftp
ftp/tftp
SNMP
SNMP/SSH/
Telnet
SNMP traps
JMS
JMS
EJB/HTTP
JMS
TCP (Oracle)
Managed
Network
Active
5620 SAM Server 5620 SAM Database
5620 SAM Auxiliary
TCP
(Oracle)
JMS
Standby
