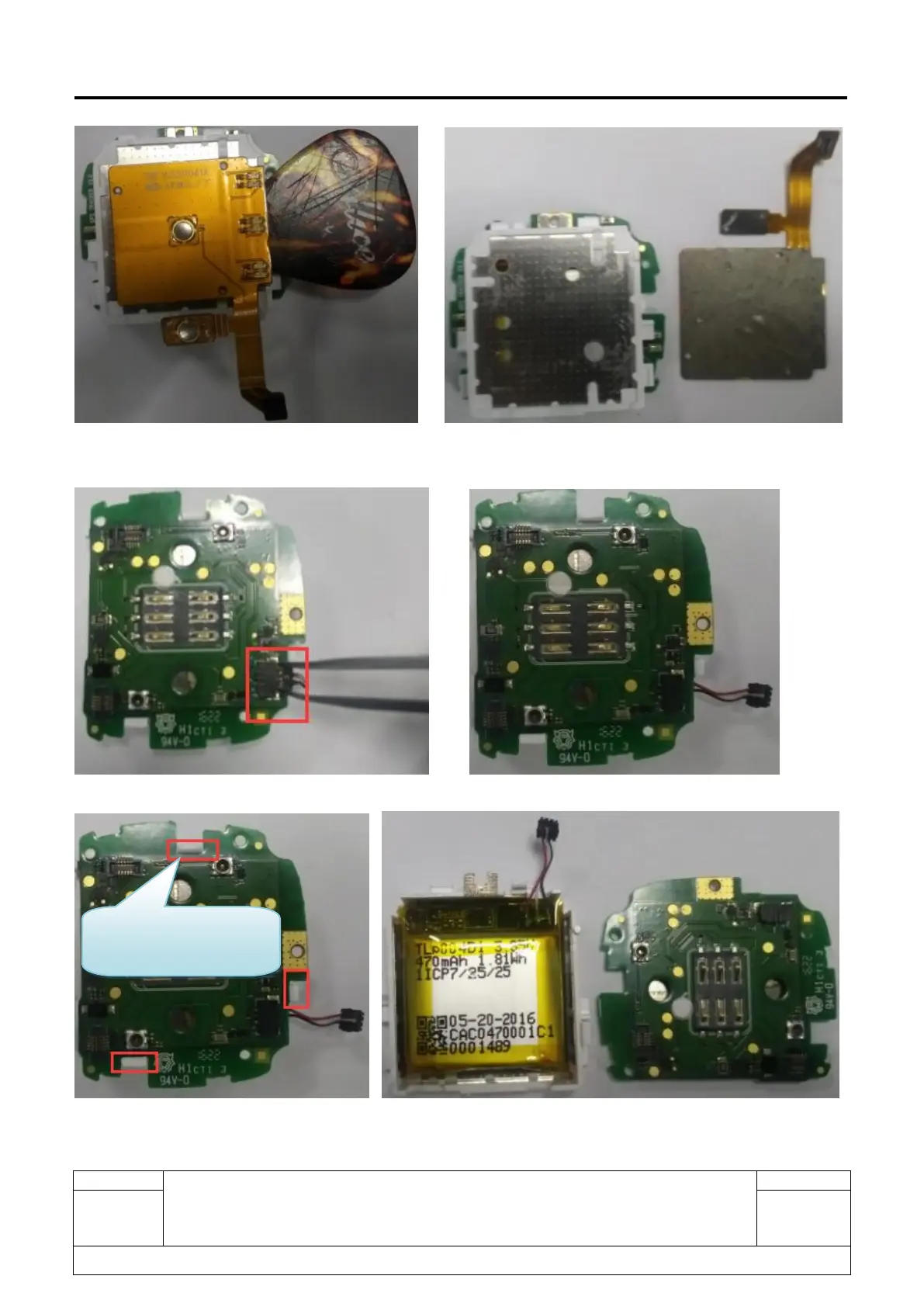

Step5: release the battery connectors and pull the PCBA out of the Frame.
Press the buckles to
spare the PCBA
