Alcatel OS6602-24 User Manual

4 OmniSwitch 6600 Family March 2005
OmniSwitch 6600-U24 (OS6600-U24)
The OS6600-U24 is a stackable edge/workgroup switch offer-
ing 24 100 SFP Ethernet ports. The OS6600-U24 can also be
equipped with up to four Gigabit Ethernet ports for connec-
tions to a high speed backbone or server.
The OS6600-U24 chassis contains the following components:
• Console port (RJ-45)
• Stack indicator and status LEDs
• 24 100 Ethernet SFP ports
• One slot for OS6600-GNI-U2 (fiber) or OS6600-GNI-
C2 (copper) Gigabit Ethernet uplink module
• One slot for a Gigabit Ethernet uplink module as
described above or a stacking module
• Factory-installed power supply
• Bay for optional back up power supply
• Built-in fan tray with three fans
• Grounding block for type LCD8-10A-L grounding lug
OmniSwitch 6600-P24 (OS6600-P24)
The OS6600-U24 is a stackable edge/workgroup switch offer-
ing 24 Power over Ethernet (PoE) 10/100 Ethernet ports. The
OS6600-P24 can also be equipped with up to four Gigabit
Ethernet ports for connections to a high speed backbone or
server.
The OS6600-U24 chassis contains the following components:
• Console port (RJ-45)
• Stack indicator and status LEDs
• 24 10/100 PoE ports
• One slot for OS6600-GNI-U2 (fiber) or OS6600-GNI-
C2 (copper) Gigabit Ethernet uplink module
• One slot for a Gigabit Ethernet uplink module as
described above or a stacking module
• Factory-installed power supply
• Connector for optional back up power supply
• Built-in fan tray with three fans
• Grounding block for type LCD8-10A-L grounding lug

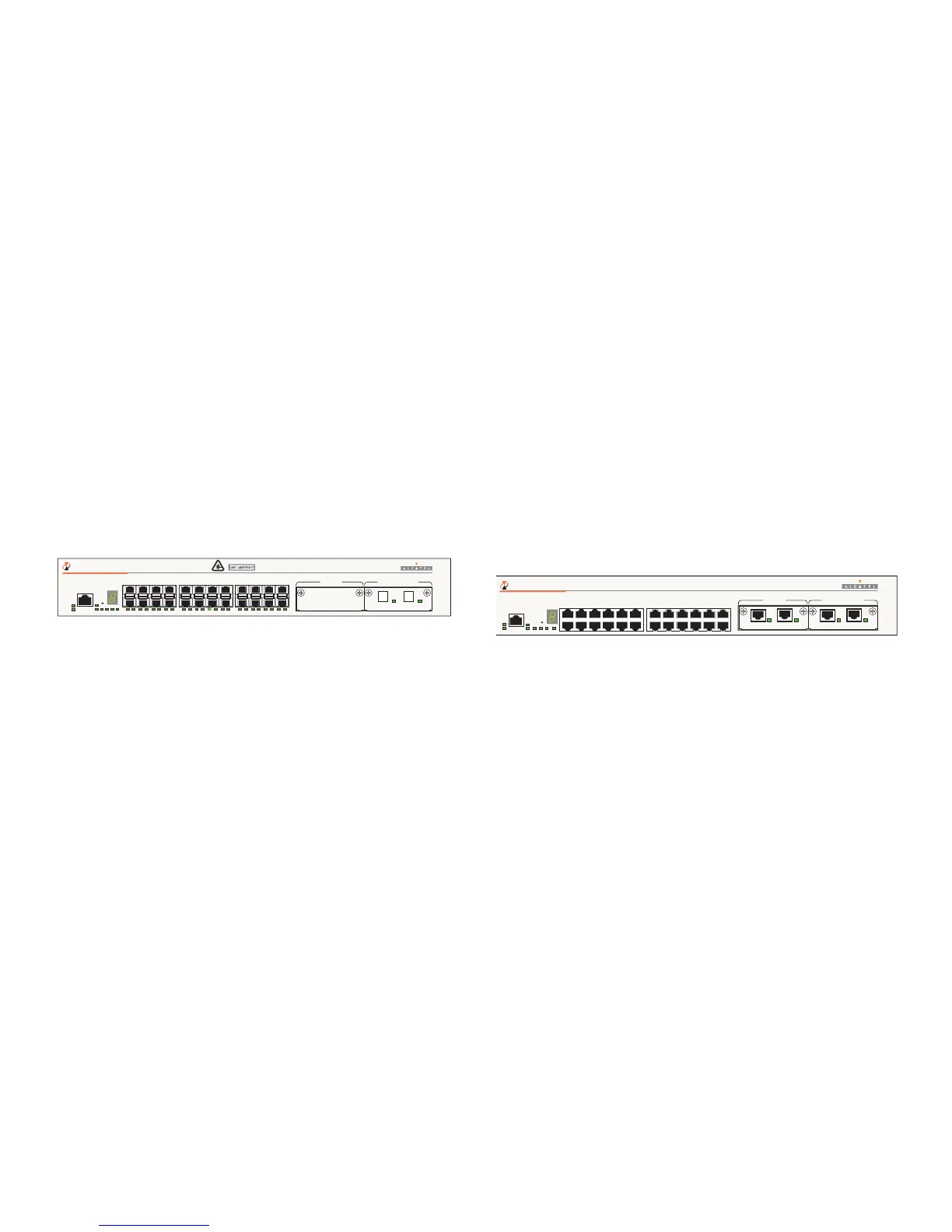

CONSOLE
EXPANSION/STACKINGEXPANSION
25 26 27 28
TM
OmniSwitch 6600-U24
OK1
OK2
PS1
PS2 PRI SEC TEMPFAN
SEL
357 911
13 15 17 19 21 23
1
LINK/ACT
LINK/ACT
2 24
214365871091211
14
13
1615 1817 2019 2221 2423
CONSOLE
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
EXPANSION/STACKINGEXPANSION
25 26 27 28
TM
OmniSwitch 6600-P24
OK1
OK2
PS1
PS2
PRI
SEC
TEMP
FAN
SEL
LINK/ACT
LINK/ACT
LINK/ACT
LINK/ACT

Alcatel OS6602-24 Specifications

General

Manageable	Yes
Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Storage Temperature	-40 to 70 °C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
MAC Address Table Size	8K entries
Jumbo Frame Support	Yes
Routing Protocol	RIP-1, RIP-2
Remote Management Protocol	SNMP, RMON, HTTP, HTTPS
Authentication Method	RADIUS, TACACS+
Features	VLAN, QoS, IGMP Snooping
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1p
Power Supply	AC 100-240V, 50/60Hz
Dimensions (W x D x H)	440 x 44 x mm
Operating Temperature	0 to 50 °C
