March 2005 OmniSwitch 6600 Family 3
Chassis Types

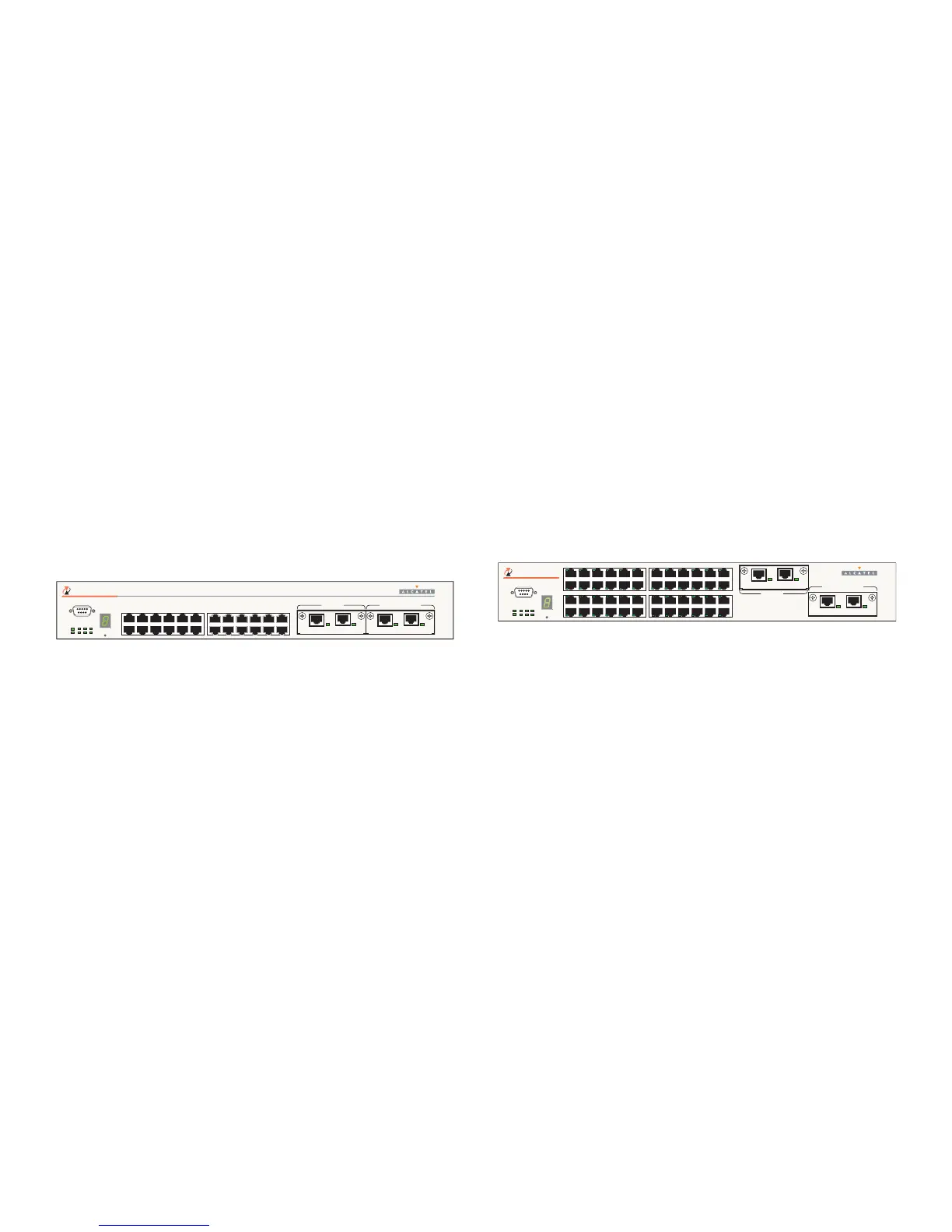

OmniSwitch 6624 (OS6624)
The OS6624 is a stackable edge/workgroup switch offering
24 10/100 Ethernet ports. The OS6624 can also be equipped
with up to four Gigabit Ethernet ports for connections to a
high speed backbone or server.
The OS6624 chassis contains the following components:
• Console port (DB-9)
• Stack indicator and status LEDs
• 24 10/100 Ethernet ports
• One slot for OS6600-GNI-U2 (fiber) or OS6600-GNI-
C2 (copper) Gigabit Ethernet uplink module
• One slot for a Gigabit Ethernet uplink module as
described above or a stacking module
• Factory-installed power supply
• Bay for optional back up power supply
• Built-in fan tray with three fans
• Grounding block for type LCD8-10A-L grounding lug
OmniSwitch 6648 (OS6648)
The OS6648 is a stackable edge/workgroup switch offering
48 10/100 Ethernet ports. The OS6648 can also be equipped
with up to four Gigabit Ethernet ports for connections to a
high speed backbone or server.
The OS6648 chassis contains the following components:
• Console port (DB-9)
• Stack indicator and status LEDs
• 48 10/100 Ethernet ports
• One slot for OS6600-GNI-U2 (fiber) or OS6600-GNI-
C2 (copper) Gigabit Ethernet uplink module
• One slot for a Gigabit Ethernet uplink module as
described above or a stacking module
• Factory-installed power supply
• Bay for optional back up power supply
• Built-in fan tray with three fans
• Grounding block for type LCD8-10A-L grounding lug
