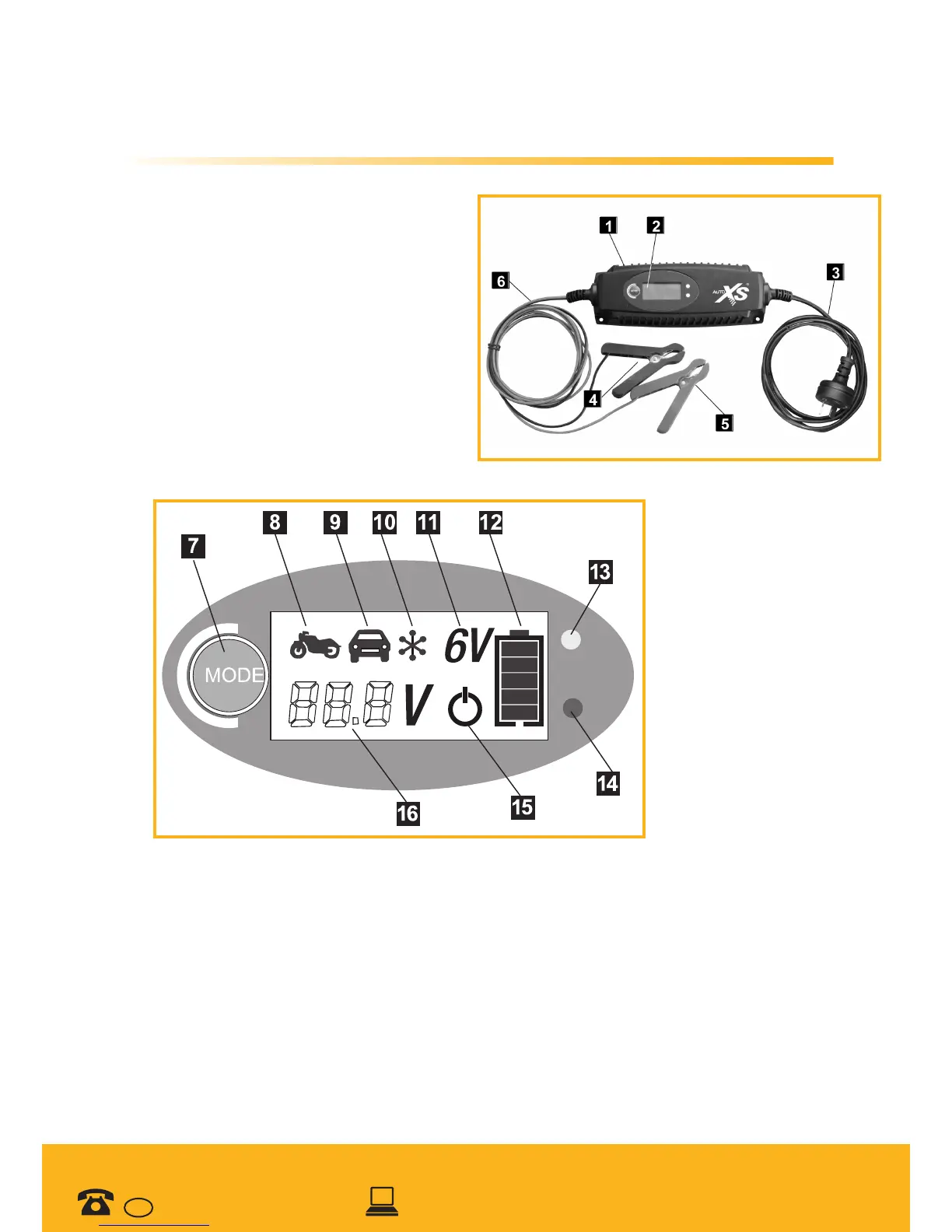

Part description

1. Vehicle battery charger CPL-2054

2. Operating panel

3. Mains cable

4. Battery clamp

black / negative terminal (-)

5. Battery clamp

red /positive terminal (+)

6. Charging cable

7. Mode key for selecting the charging program

(except for 6 V as it is automatically detected)

8. Motorcycle charging program: for batteries 12 V, 1.2 Ah-14 Ah

9. Car charging program: for 12 V, 14 Ah-120 Ah

10. Cold weather charging program: for batteries 12 V, 14 Ah-120 Ah

11. 6 V charging program: for batteries 6 V, 1.2 Ah-14 Ah

12. Battery charging status display (charging: bars partially lled, frame ashing;

fully charged: bars lled, frame lit permanently)

13. Mains light: green light lit when connected to mains

14. Fault light: lights up red in case of incorrect polarity, short-circuit and overheating.

15. Symbol for standby mode

16. Battery voltage display: shows current voltage of connected battery.
