4

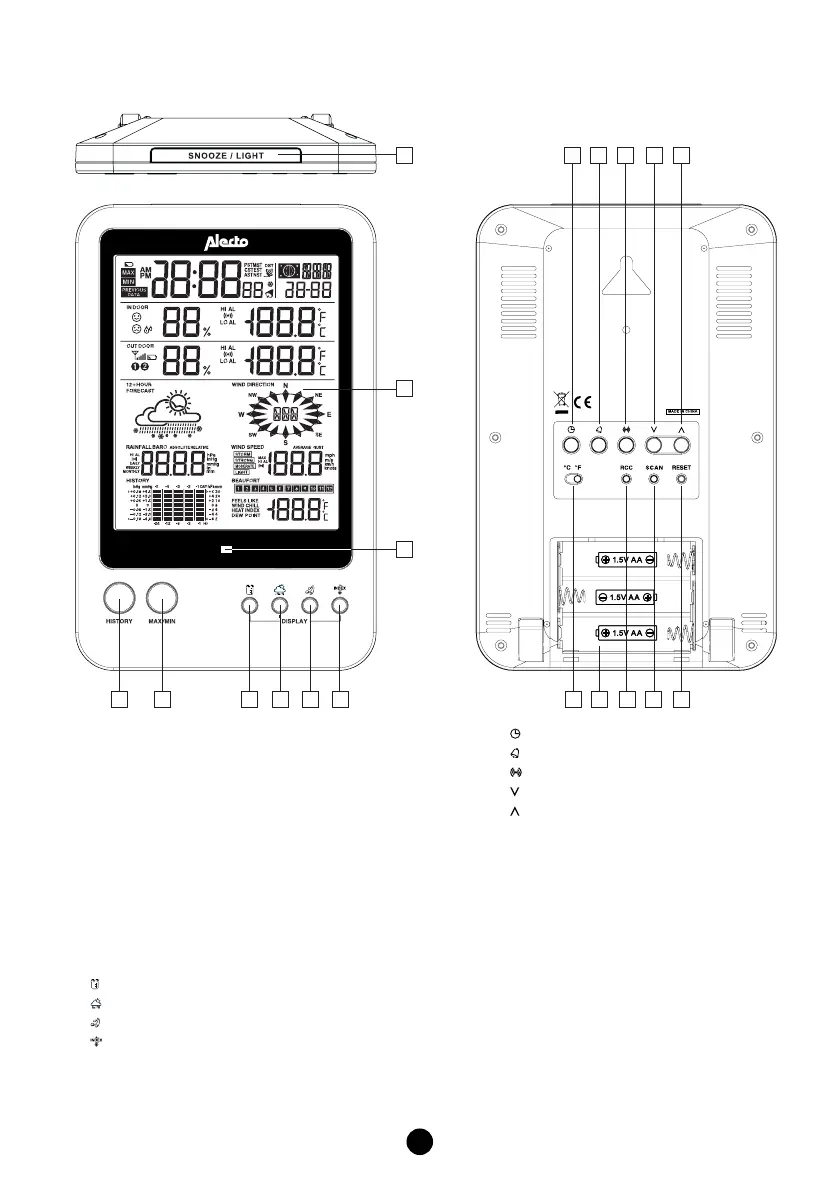

2. OVERVIEW
2.1 Indoor unit:
1. SNOOZE/LIGHT button:
snooze button in alarm mode, also for
activating the display lighting
2. Display
(the following pages will explain what
everything on the display means)
3. Alert LED for the MAX/MIN alarm
4. HISTORY button:
displays the data of the past 24 hours
5. MAX/MIN button:
displays the measured minimum and
maximum values, including at what time and
on which date the measurement was taken
6. button: ‘rainfall’ button
7. button: ‘barometer’ button
8. button: ‘wind’ button
9. button: ‘index’ button
10. button: clock setup button
11. button: alarm clock setup button
12. button: alarm setup button
13. button: down button
14. button: up button
15. °C/°F switch:
to set the temperature display to degrees
Celsius or degrees Fahrenheit
16. Battery compartment
17. RCC button: to switch the DCF receiver
onoro
18. SCAN button: to have the indoor unit
search for the outdoor unit
19. RESET button: to reboot the indoor unit
in case of a (possible) fault
1
2
5
3
98764
10 14131211
19181715 16
MOLDINSERT
Alecto
设计编号
WZY
客 户 设计
比例 A2 / 1:1
Unit:mm
产品编号
描述
This article is the property of CCL Electronics Ltd (CCL) and is intended to use as conceptual study, product introduction etc.
Any unauthorized usage either in electronic or hardcopy format will be strictly prohibited. CCL reserves all rights to raise legal action to any illegal manipulation of this article.
RDD-008-A0
Film Size: 15 x 5.6mm
PRODUCT SIZE :
120 x 186 x 22mm (不加底座尺寸)
LCD SIZE :
90 x 110 mm
Battery :
AA x 3
C8528A
设计日期 2 1 / 0 4 / 2 2
F01-V0
修改日 期 0 0 / 0 0 / 00
