Alecto WS-4900 User Manual

6

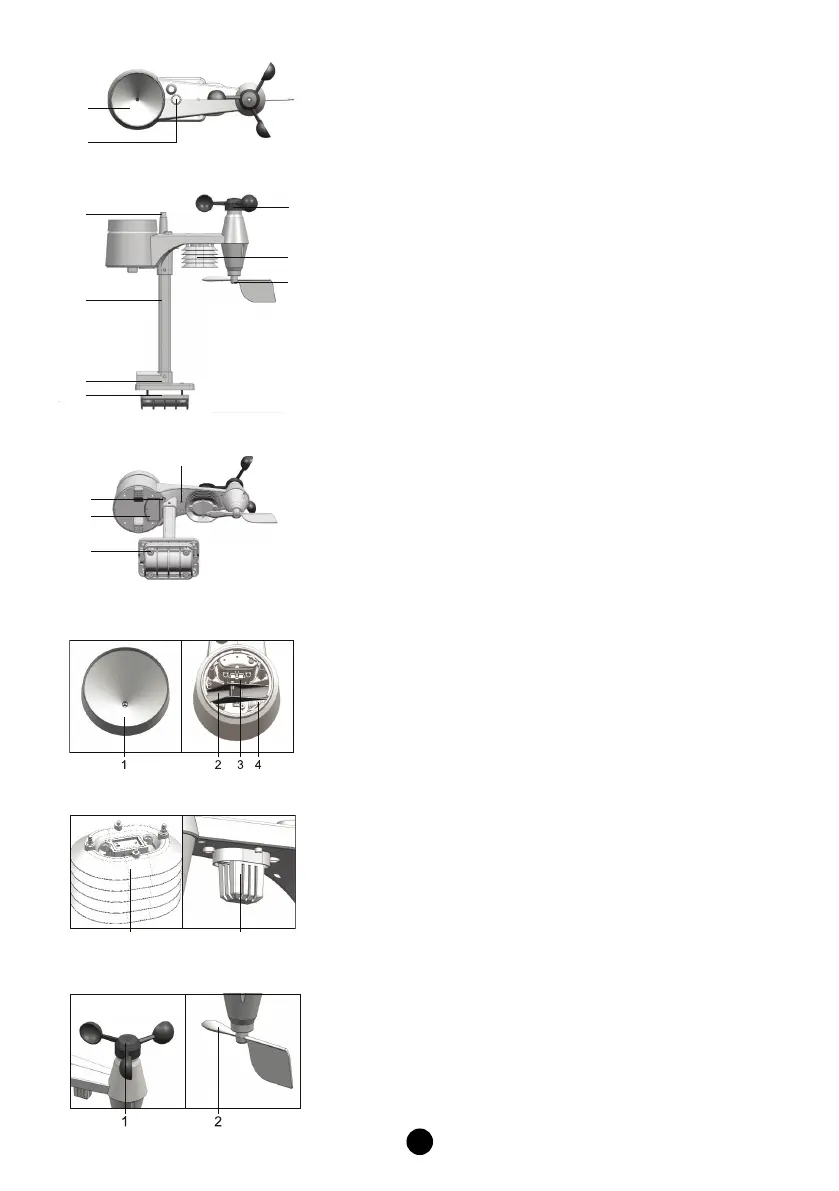

2.2 Outdoor unit:
1. Rain meter
2. Spirit level (to mount the outdoor unit as horizontally as possible)
3. Antenna
4. Wind speed meter
5. Mounting pole
6. Air guides for the temperature and humidity sensor
7. Wind vane for the wind direction
8. Mounting plate
9. Attachment for installation on a pole
10. LED light, illuminates while transmitting the measurement data
11. RESET button: to reset the outdoor unit in case of a (possible) error
12. Battery compartment
13. Fastening screws for installation on a pole
2.3 Rain meter:
1. Rain collector
2. Tipping tray (for rainfall measurement)
3. Sensor (for the tipping count)
4. Water drain
2.4 Temperature and humidity sensor:
1. Air guides for the temperature and humidity sensor
2. Temperature and humidity sensor
2.5 Wind sensor:
1. Wind catchers for measuring the wind speed
2. Wind direction vane
1
2
1
2
12
11
13
10
3
5
8
9
4
7
6
