4.4 Outdoor rain unit:
Registration:

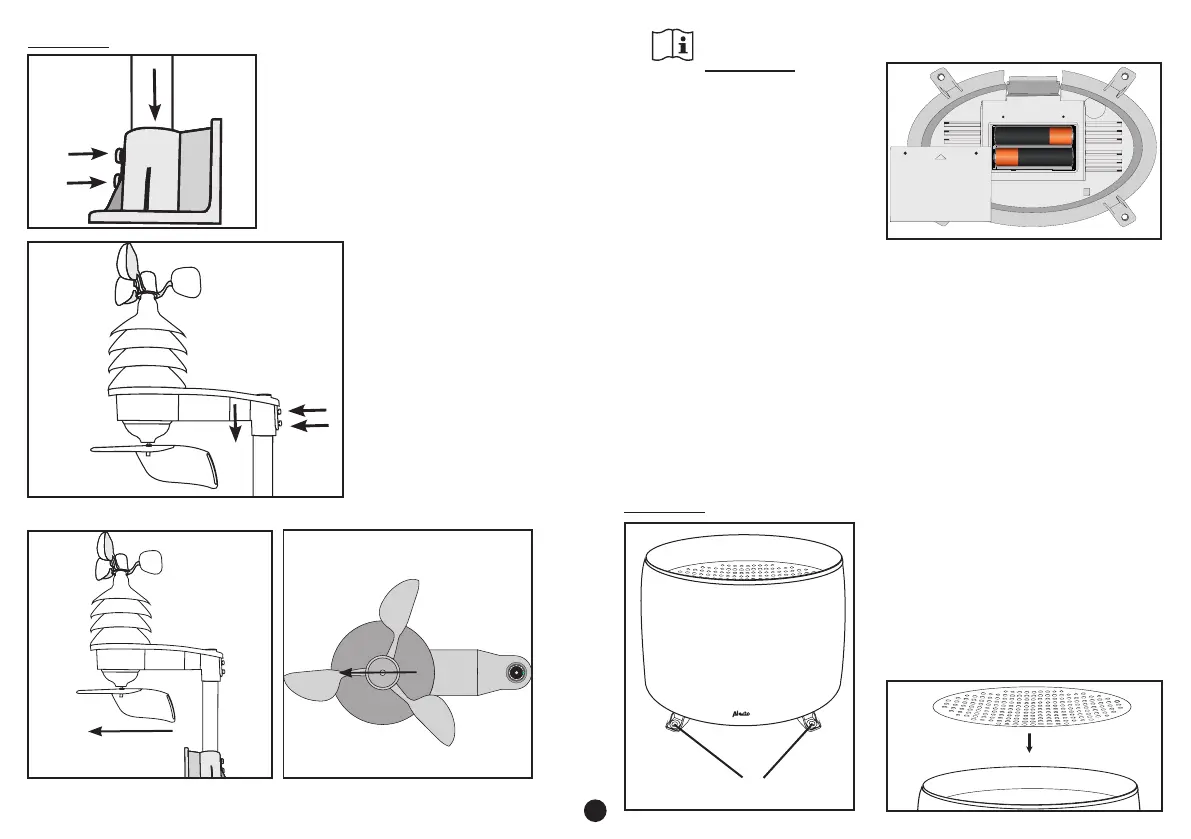

Remove the battery compartment
screws at the bottom of the rain
screw holes, and remove the battery
cover. Insert 2 x 1,5V AA batteries in
the battery compartment as shown
in the diagram:
Install the battery within the 5 minute
registration time of the indoor unit, or set the indoor unit to receive.
If the indoor unit is set to receive, both the wind and rain unit should also
register.
detected by the indoor unit and the ---- disappears from the display.
Replace the battery cover and secure it with the screws. This ensures that
the batteries do not get wet.
The batteries should be installed before mounting the rain gauge.
Installation:
Place the rain gauge on a horizontal
surface where the rain will not be
obstructed. Fasten the rain gauge by
inserting the screws through the legs.
To replace the batteries, the rain gauge
Installation:
Insert the aluminium pole into the
mounting base and fasten it with the
screws provided. The mounting base can
be mounted on a horizontal or vertical
surface. Please note that the outdoor
wind unit must still be orientated to the
north. Make sure there is enough space
to do this adequately. Screw the base to a
wooden or stone wall using the supplied
screws and plugs.
Slide the outdoor wind unit
onto the pipe and fasten it with
the screws provided.
Orientate the outdoor wind
unit using the compass to
ensure the correct wind
direction.
The wind speed sensor,
temperature, humidity, and
wind direction part must be
south facing. See diagram:
S
N
E
S
W
WS
ES
EN
WN
S
AA 1,5V
AA 1,5V
