Alesis Command Kit User Manual

Connection Diagram Schema dei collegamenti
Diagrama de conexión Anschlussübersicht
Schéma d’installation
C
(1)
alesis.com
Manual Version 1.0
Important: Use the cable snake (U) to connect the drum pads and cymbal pads to the module
(V) (as shown in the Connection Diagram).
Importante: Use el grupo de cables (U) para conectar los módulos de tambores y platillos al
módulo (V) (como se muestra en el diagrama de conexión).
Important : Utilisez les câbles (U) afin de raccorder les pads de batterie et de cymbales au
module (V), comme indiqué sur le schéma d’installation.
Importante: Servirsi del fascio di cavi (U) per collegare i pad della batteria e i pad dei piatti al
modulo (V) (come illustrato nello schema dei collegamenti).
Wichtig: Verwenden Sie den Kabelbaum (U), um die Drum-Pads und Becken-Pads an das
Moduls (V) (wie im Anschlussübersicht dargestellt) anzuschließen.
Crash
Ride
Hi-Hat
Tom 1
Tom 2
Tom 3
Snare
Kick
Hi-Hat
Control

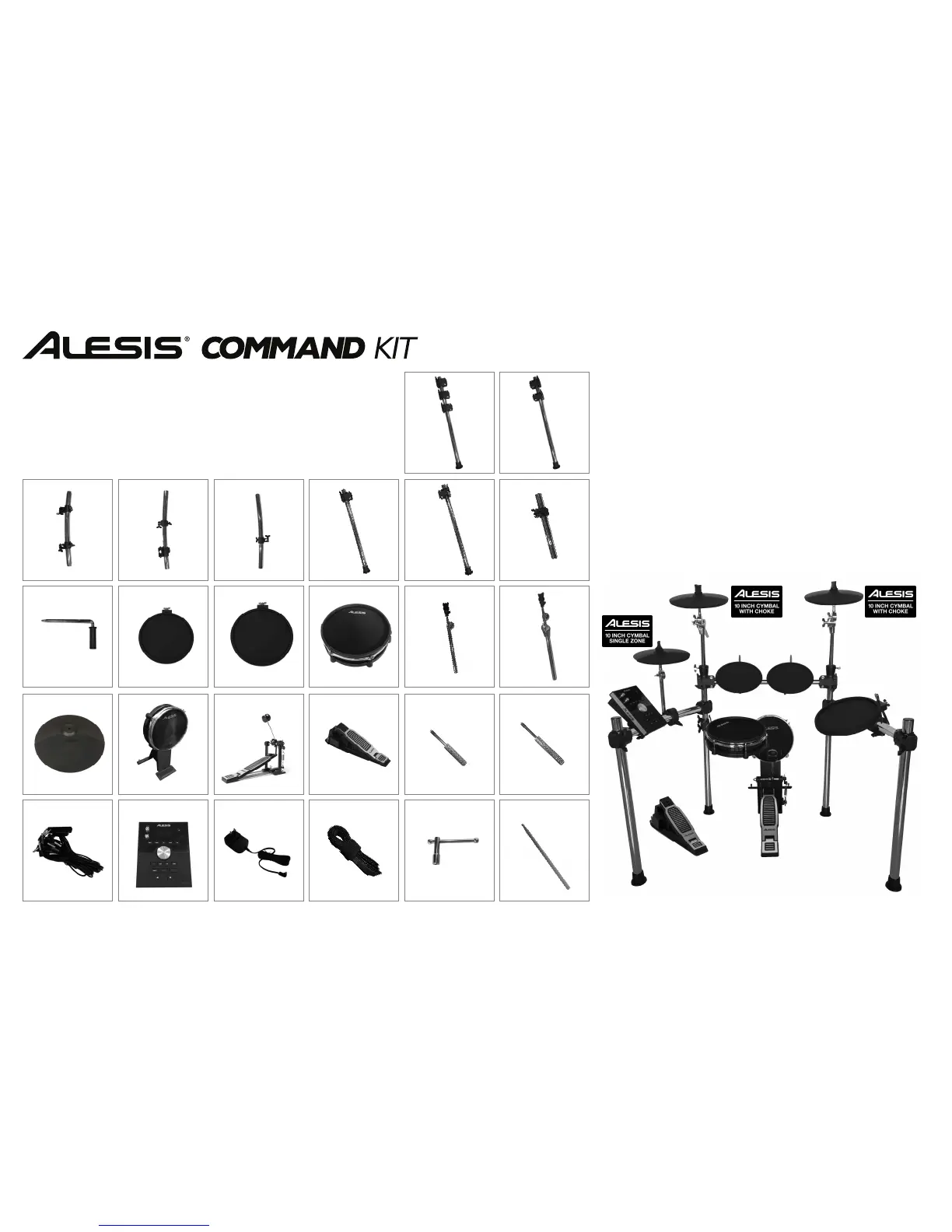

Box Contents Contenuti della confezione
Contenido de la caja Lieferumfang
Contenu de la boîte
D
(1)
E
(1)
F
(1)
G
(1)
H
(1)
I
(4)
J
(2)
K
(1)
L
(1)
M
(1)
N
(2)
O
(3)
P
(1)
Q
(1)
R
(1)
S
(2)
T
(1)
U
(1)
V
(1)
W
(1)
X
(5)
Y
(1)
Z
(2)
A
(1)
B
(1)

Alesis Command Kit Specifications

General

Hi-hat Pad	10"
Hi-hat Controller	Included
Sequencer	Yes
Metronome	Yes
Built-in Songs	60
Power Supply	9V DC, 500mA, center-positive
Height Adjustability	Yes
Drum Stand	4-post chrome rack
Kick Pedal	Included
Hi-hat Pedal	Included
Tom Pads	8" dual-zone mesh
Kick Pad	8"
Drum Module	Command Drum Module
Kits	50
Effects	Reverb
Audio Outputs	2 x 1/4" TRS (main out)
Headphone Output	1 x 1/8" TRS
Aux Input	1 x 1/8" TRS
MIDI I/O	USB
Drum Sticks	Not included
Snare Pad	10" dual-zone mesh
