20. EXT In: Connect sources such as tape decks, CD players, and MP3 players to this 1/8"
TRS input whose signal is sent to the Main Out and Phones Out when the EXT USB to
Main switch is engaged.
21. Phones Out: Connect headphones to this stereo 1/4” output.

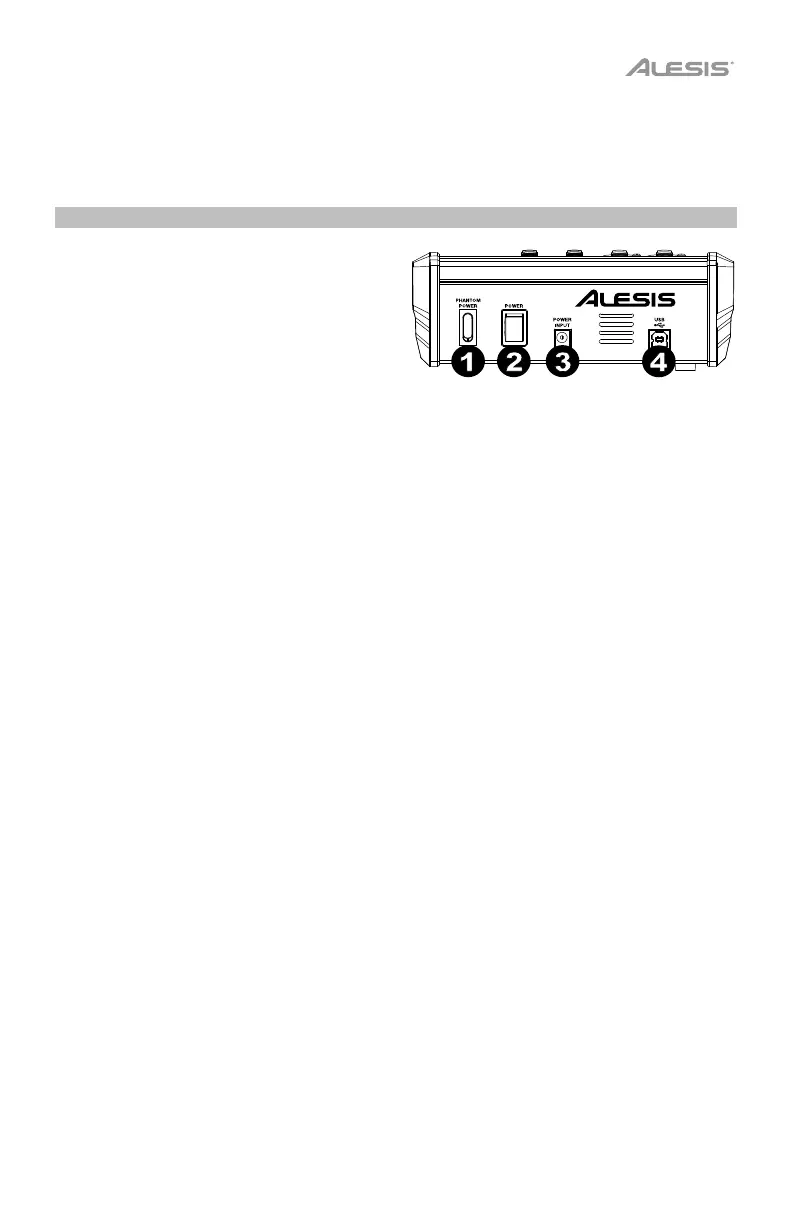

Rear Panel
1. Phantom Power: This switch activates
and deactivates phantom power. When
activated, phantom power supplies +48V
to the XLR mic inputs. Please note that
most dynamic microphones do not
require phantom power, while most
condenser microphones do. Consult your
microphone’s documentation to find out
whether it needs phantom power.
2. Power Switch: Turns the MultiMix 4 USB FX on and off. Turn on the MultiMix 4 USB FX
after all input devices have been connected and before you turn on amplifiers or powered
speakers. Turn off amplifiers
or power speakers before you turn off the MultiMix 4 USB
FX.
3. Power In: Use the included power adapter (18V DC, 800 mA, center-positive) to
connect the MultiMix 4 USB FX to a power outlet. While the power is switched off, plug
the power adapter into the MultiMix 4 USB FX first, and then plug the power adapter into
a power outlet.
4. USB Port: Use the included cable to connect the MultiMix 4 USB FX to a computer.
MultiMix 4 USB FX requires a USB 1.1 or higher (e.g. USB 2.0) connection.

Alesis MultiMix 4 USB FX Specifications

General

Sample rate	48 kHz
Channels quantity	4 channels
Digital sound processing	16 bit
DJ mixer	-
Video capability	No
Microphone input impedance	600 Ω
Balanced line output level	7 V
XLR out	2
USB 2.0 ports quantity	1
Quick start guide	Yes

Weight and Dimensions

Depth	197 mm
Width	152 mm
Height	50.8 mm
Weight	680 g
