Alesis Performance Service Manual

DISASSEMBLY PROCEDURES

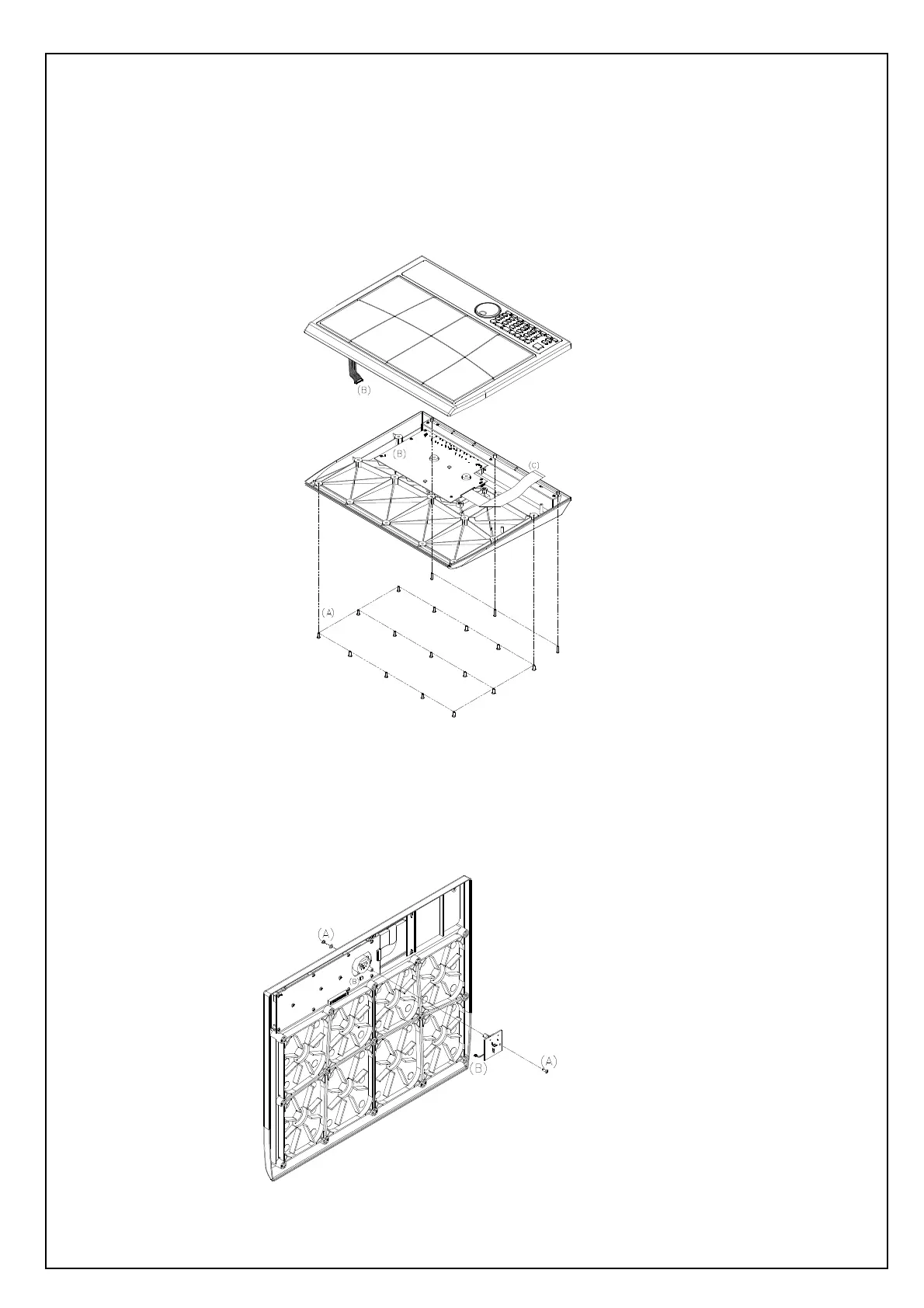

1. REMOVING OF THE BOTTOM CHASSIS .(Fig1)
(A) REMOVE 18 SCREWS FROM BOTTOM CHASSIS. .
(B) REMOVE 1 CABLE FROM MAIN PCB ASSEMBLY.
(C) REMOVE 1 CABLE FROM TOP PAMEL PCB ASSEMBLY.
(Fig1)
2. REMOVING OF THE ENCODE PCB ASS’Y . (Fig2)
(A) REMOVE 1 NUT AND 1 WASHER AND SCREWS.
(B) REMOVE 1 CABLE BEFORE REMOVING OF THE ENCODE PCB ASSEMBLY.
(Fig.2)
