Chapter 7: Editing Effects
CONFIGURATION #2: 2 REVERBS
Delay 1 Pitch 1 Reverb 1
Mono delay Mono chorus Plate 1
Stereo chorus Plate 2
Room
Hall
Large
Gate
Reverse
Reverb 2
Level to Reverb 1
Pitch 3 Reverb 3
Mono chorus Plate 1
Plate 2
Room
Hall
Large
Gate
Reverse
Reverb 4
Reverb 4
Level to Reverb 3

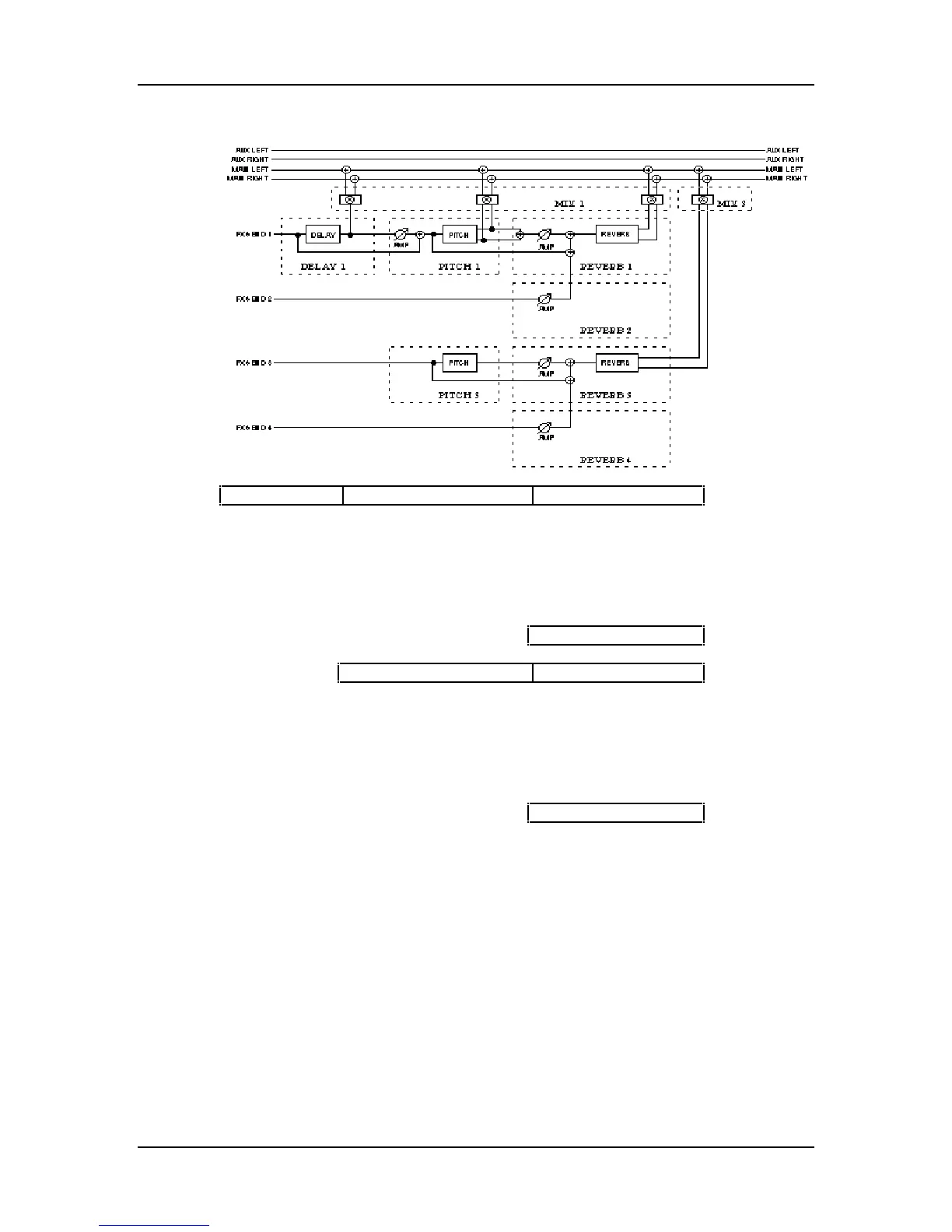

This Configuration differs from Configuration #1 in many ways. In this Configuration,
there is only one Delay effect, two Pitch effects and two Reverb effects. Effect send 1
is routed through the mono Delay, then a stereo Pitch effect, and finally a stereo
Reverb effect. Send 2 has no effects of its own, but can be routed to the same
Reverb effect as send 1. Send 3 is routed through a mono Pitch effect, and then a
stereo Reverb effect. Send 4 has no effects of its own, but can be routed to the same
Reverb effect as send 3.
Effect send 1’s Delay, Pitch, and Reverb can feed the Mix output directly. Unlike the
first configuration, however, Pitch 3 can be routed to the Mix only after passing
through Reverb 3.
94 QS7/QS8 Reference Manual
