Options
A. Male parts or clamp liners in accordance with required standard.
B. ThinkTop® for control and indication.*
C. Indication unit with micro switches.*
D. Indication unit with inductive p roximity switches.*
E. Indication unit with Hall proximity switches.*
F. Explosion proof indication unit with inductive proximity switches.*
G. Bracket for actuator. (Also for ball valves).
H. Handle with two or four positions (standard on DN125 and DN150).
I. Handle for electrical position indication.
J. Handle with infinite intermediate positions (not for DN125 and
DN150).
K. Multipositioning handle**.
L. Lockable Multiposition Handle. Padlock can be mounted as shown
in fig. 5.
Note! Padlock is not delivered.
M. Special cap for 90° turned handle position.
N. Service tool for actuator.
O. Service tool for fitting 25-38 mm (DN2 5 - DN40) valve discs.
* For further information see Product Catalogue chapter "Control
& Ind ication".
** A padlock can be mounted on the Lockable Multiposition
Handle as shown in the opposite figure.
Note! Padlock is not de livered.

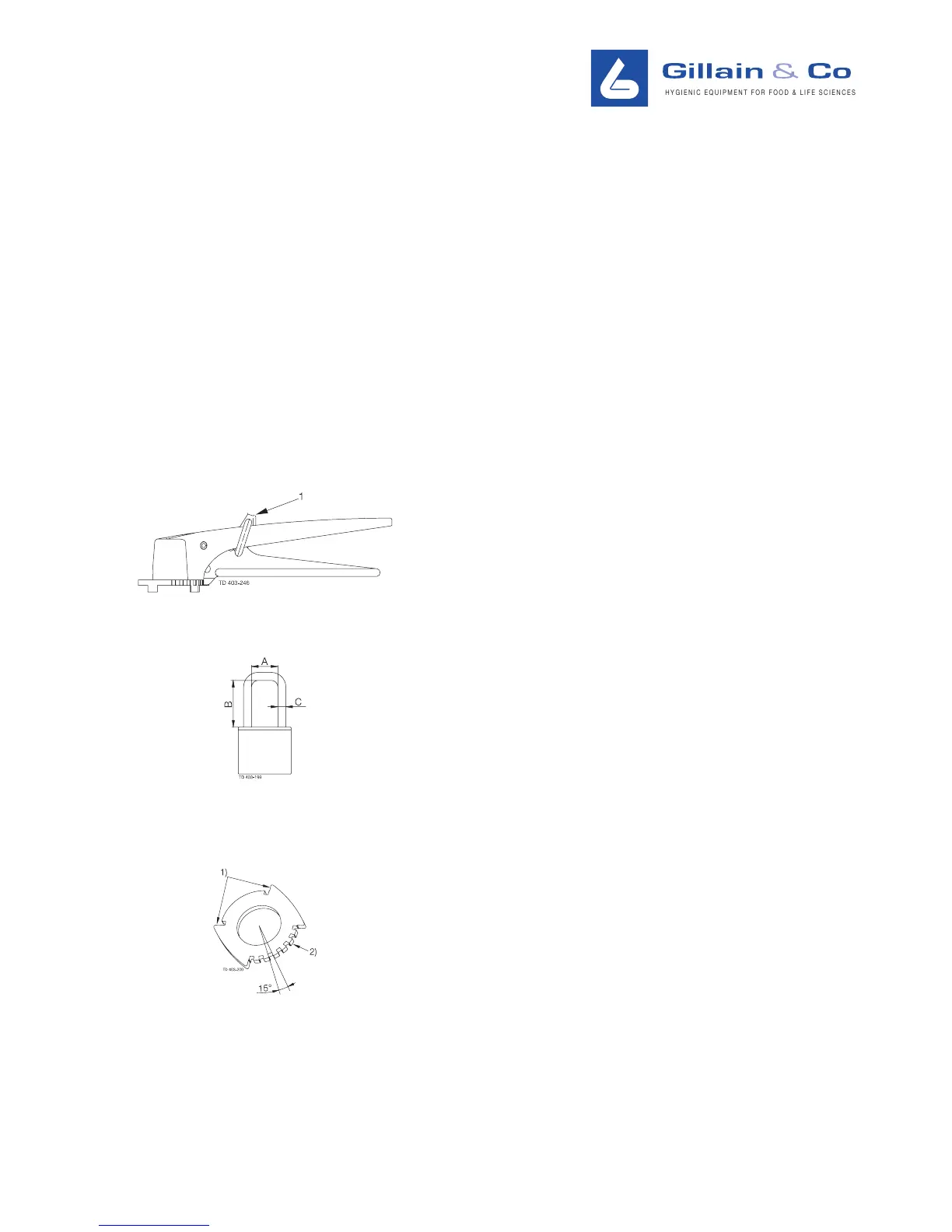

Fig. 3. Lockable Multiposition Handle w ith padlock.
1. Padlock
Fig. 4. Dimensions - padlock.
A. Min. 20 mm
B. Min. 35 mm
C. ø6 mm
Fig. 5. Positioning cap.
1. On/Off
2. Multi positioning
