Alfa Laval S946 - Dimension Drawings

584692-02 9
SLUDGE REMOVAL KIT COMPONENT DESCRIPTION 1 SLUDGE REMOVAL KIT

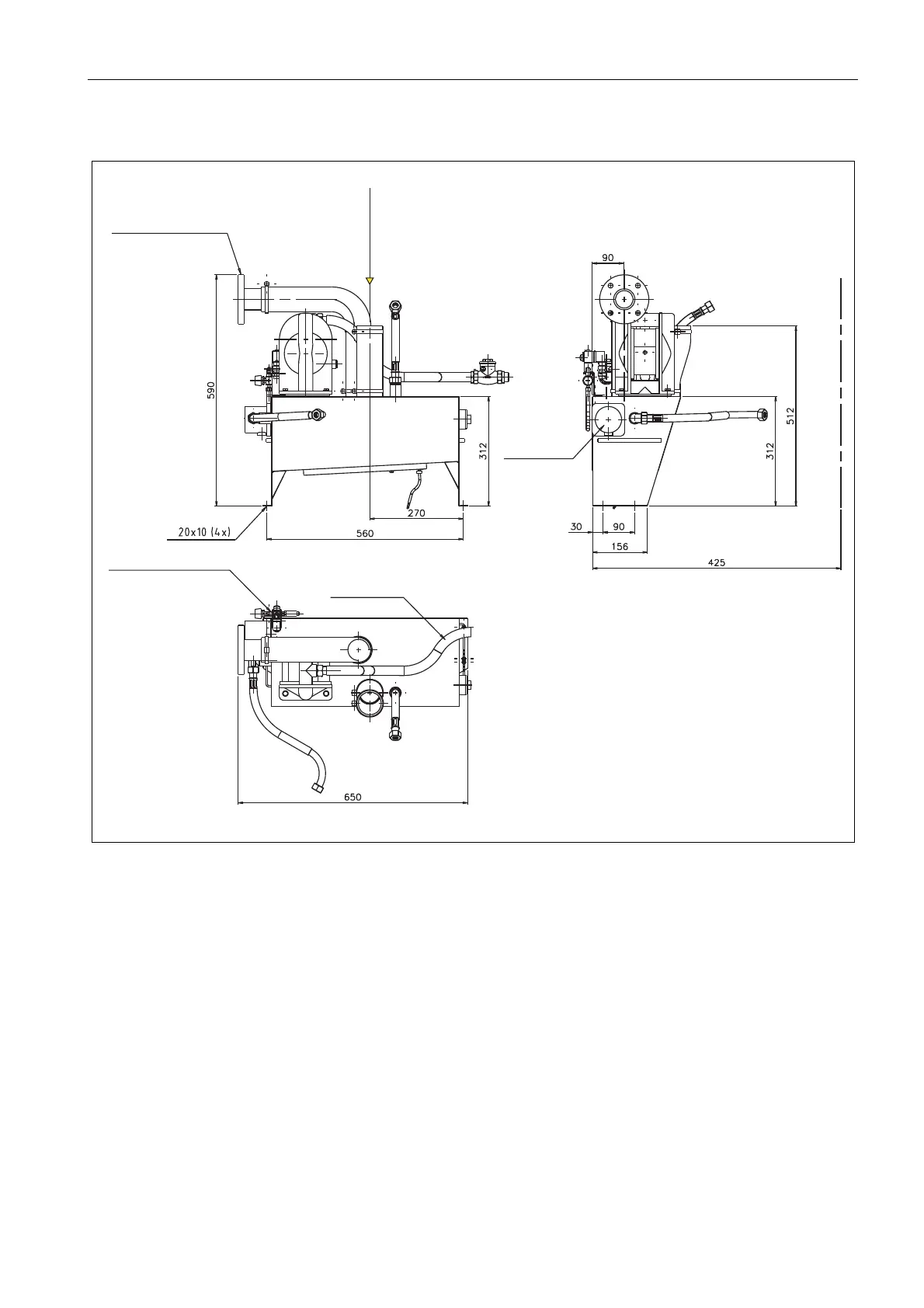

1.6 Dimension Drawings
X024645A
Sludge outlet G1”
Flexible hose
Ventilation DN50 PN6
Separator
sludge outlet
Separator vertical axis
P 605/615, S 805/815
Ref. 584126 Rev. 0
Level switch
Air inlet G1/4” to MV6
596
