Alfa Laval SRU6 User Manual

4 Installation
To ensure optimum operation it is important that any pump unit is installed correctly. When designing a pumping system the
following should be taken into consideration.
Table of Maximum Forces and Moments
Forces Moments
Pump
Model
Units FZ FY FX EF Units MZ MY MX EM
N 806070120Nm
75
90
115
165
SRU1
lbf18131627lbft556685122
N 125 100 110 195 Nm 90 105 130 190
SRU2
lbf28222544lbft667796140
N 165 135 150 260 Nm 100 115 140 205
SRU3/4
lbf37303458lbft
74
85 103
151
N 300 250 250 460 Nm 125 145 175 260
SRU5/6
lbf 67 56 56 103 lbft 92 107 129 192

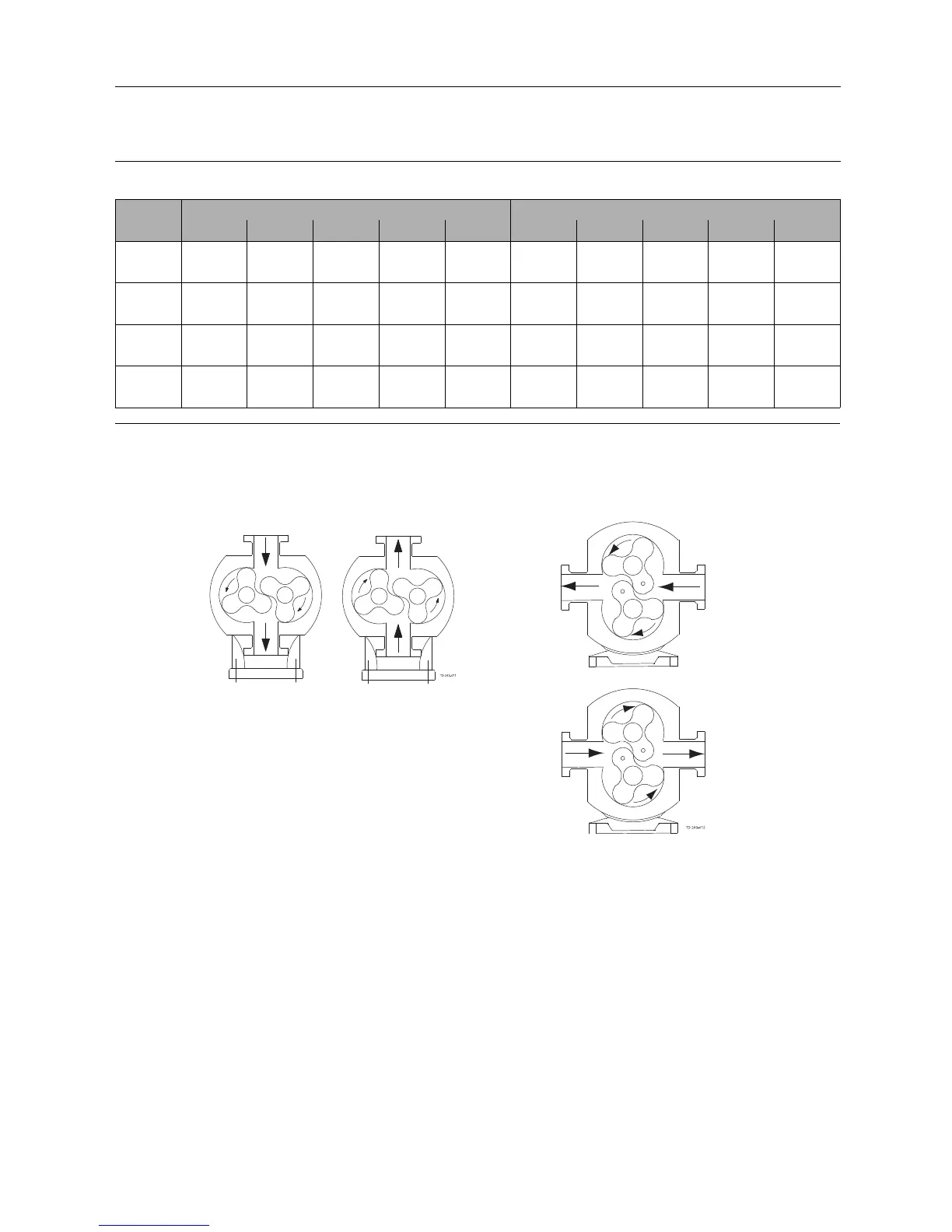

Direction of flow:
The direction of flow is dictated by the direction of rotation of the drive shaft. Reversing the direction of rotation will reverse the
flow direction.
Suction
Discharge
Discharge
Suction
Discharge
Suction
Suction
Discharge
1
0
