3 Installation
The instruction manual is part of the delivery. Study the instructions carefully.
The items refer to parts list and service kits section.
The valve is supplied as separate parts as standard (for welding).
The valve is assembled before delivery, if it is supplied with fittings.
3.1 Unpacking/delivery
Step 1
CAUTION
Alfa Laval cannot be held responsible for incorrect unpacking.
Check the delivery for:
1. Complete valve, shut-off valve or change-over
valve.
2. Delivery note.
Step 2

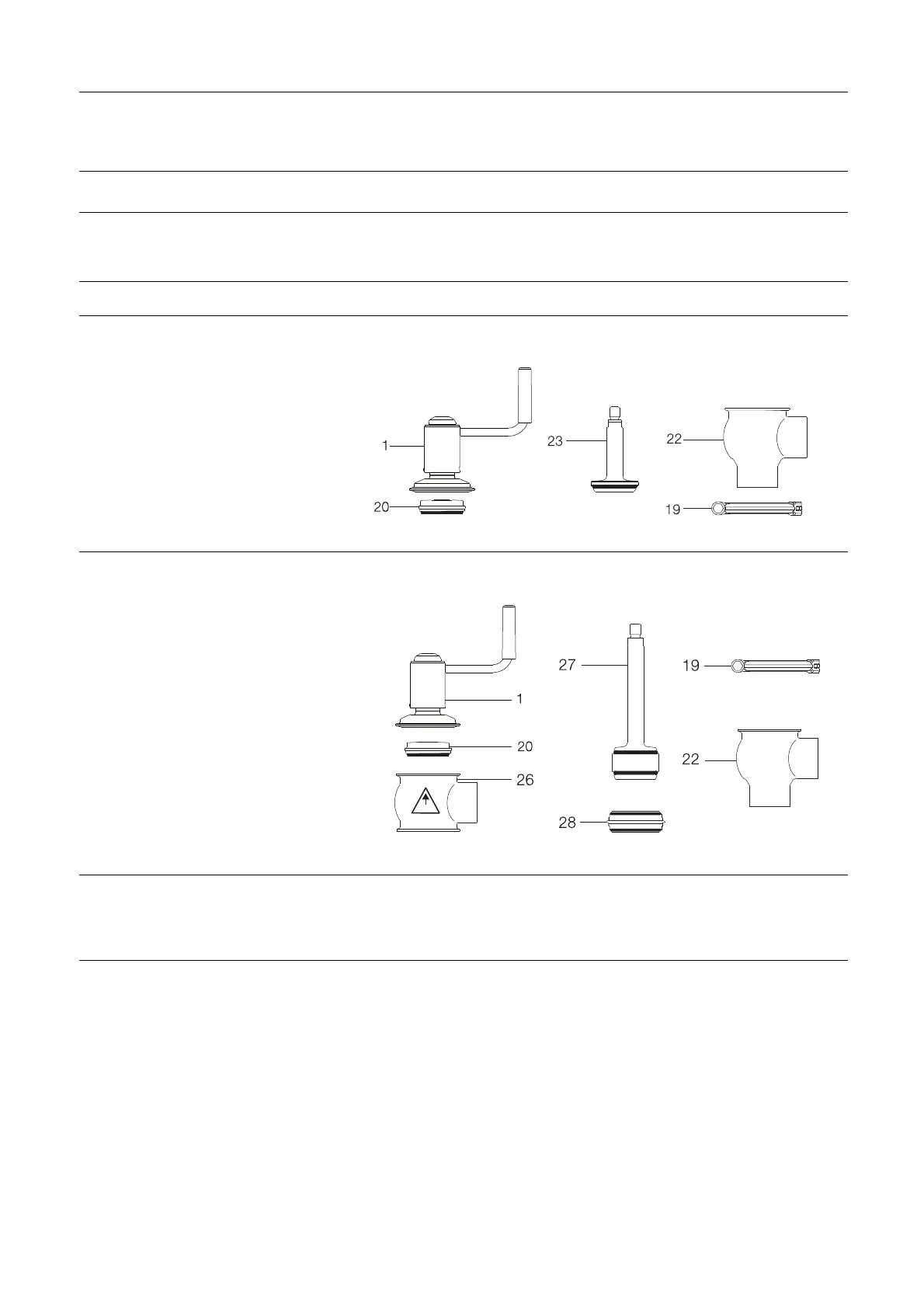

2a
Shut-off valve:
1. Complete handle.
2. Bonnet (20).
3. Clamp (19).
4. Valve plug (23).
5. Valve body (22).
TD 461-585
2b
Change-over valve:
1. Complete actuator.
2. Bonnet (20).
3. 2 x clamps (19).
4. Valve plug (27).
5. Lower valve body (22).
6. Valve seat (28).
7. Upper valve body (26).
TD 461-586_1
UP
Step 3
Remove possible packing materials from the valve/valve parts.
Inspect the valve/valve parts for visible transport damage.
Avoid damaging the valve/valve parts.
