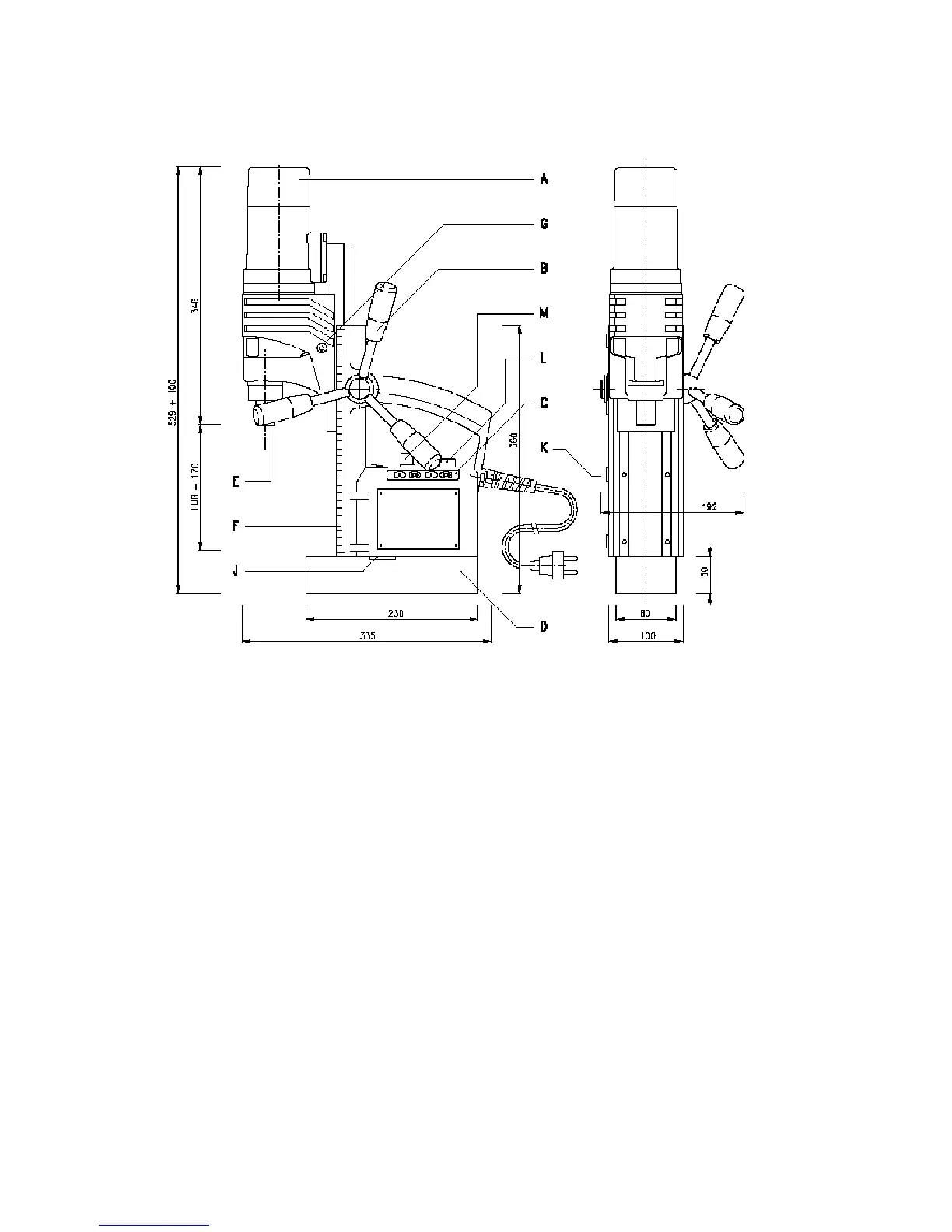

Description
A ) Motor
B ) Spindle
C ) Control Panel
D ) Magnet Foot
E ) Arbor MT 2
F ) Depth Scale
G ) Hexagon screw for the adjustment of the motors´ stroke range
H ) Clamping lever for clamping the magnet foot
J ) Recess for safety belt
K ) Adjusting screws for adjusting the slide
L ) Push button for „Left-hand rotation“
M ) Rotation speed control
