01

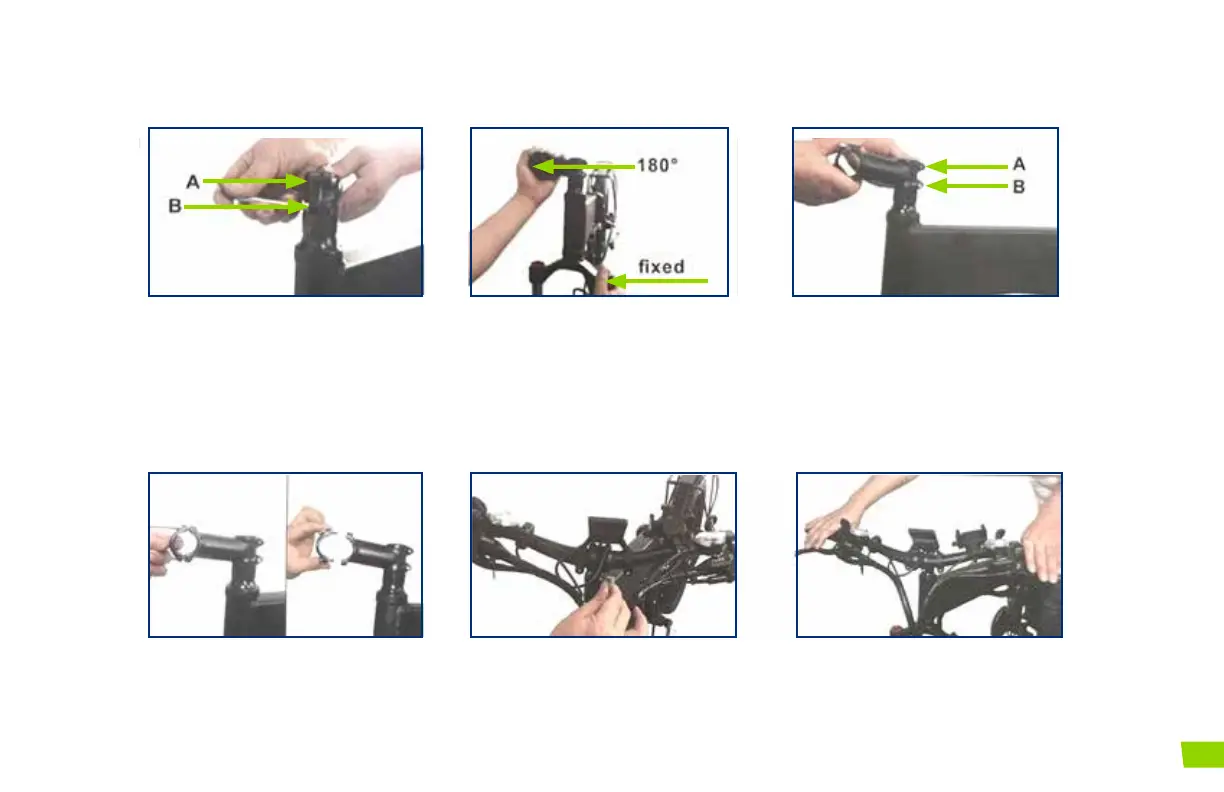

Loosen the riser sides A & B screws.
Before installation, pay close atten-
tion that the front and rear brakes
are on the same side
02
Fix the front shock absorber in the
locked position and rotate the riser
180°
03
Tighten the side A & B screws. Note
if your bike is a Y20 model then you
will have a locking adjustable height
stem
PART 2: HANDLEBAR ASSEMBLY
04
Remove front 4 bolts from the stem
cover, then remove the stem cover
05
Mount handlebar onto the stem,
then replace the stem cover and
tighten all 4 bolts
06
Adjust the handlebar according to
your preference, then ensure all
bolts are tightened rmly
ALIEN E-BIKES USER MANUAL 17
