Steps
1. Align the screw hole on the solid-state drive bracket with the screw hole on the palm-rest and keyboard assembly.
2. Replace the screw (M2x4) that secures the solid-state drive bracket to the palm-rest and keyboard assembly.
Next steps
1. Install the
solid-state drive.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Fans
Removing the fans
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

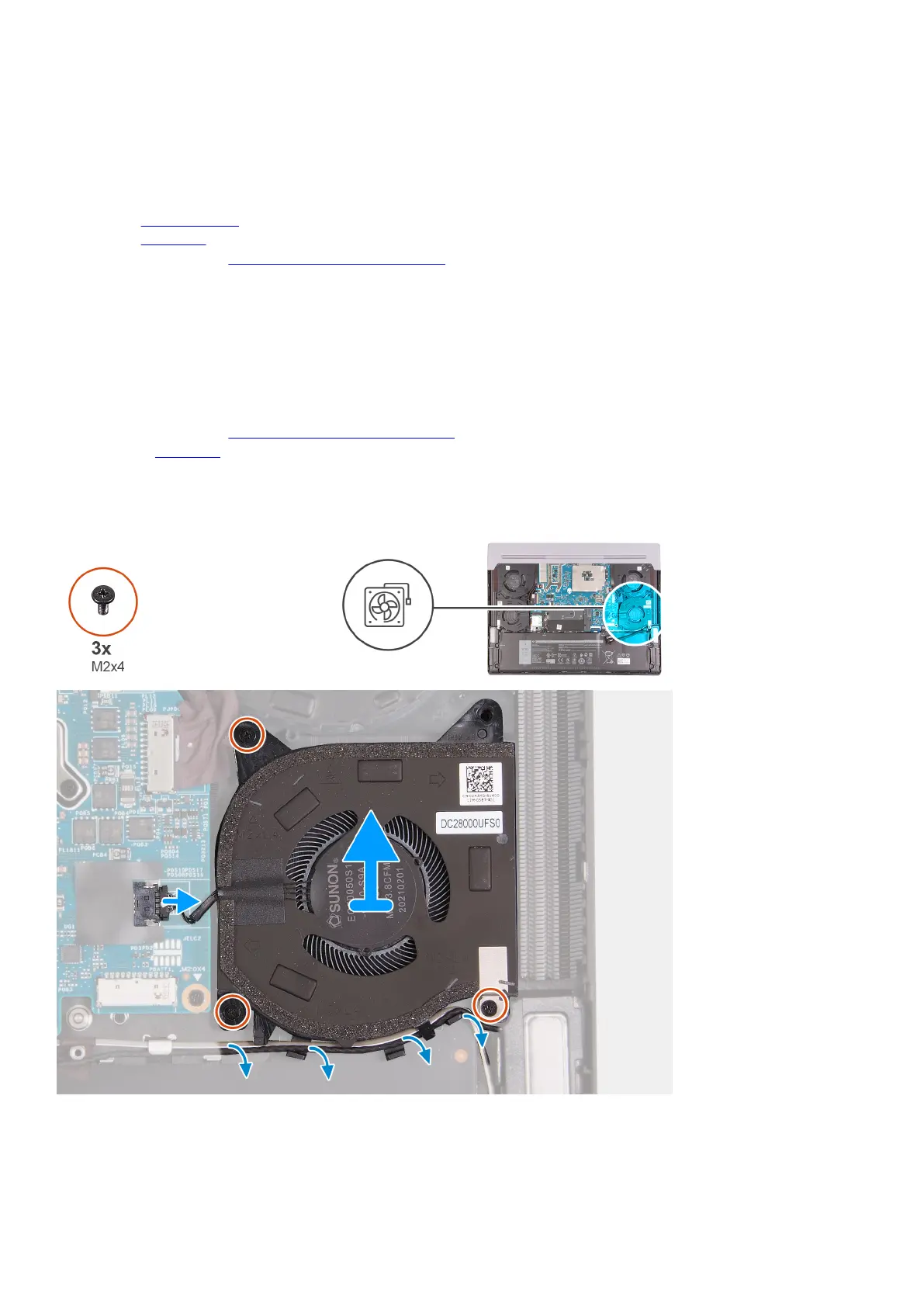

The following image(s) indicate the location of the fans and provides a visual representation of the removal procedure.
26
