Alienware X51 - Page 16

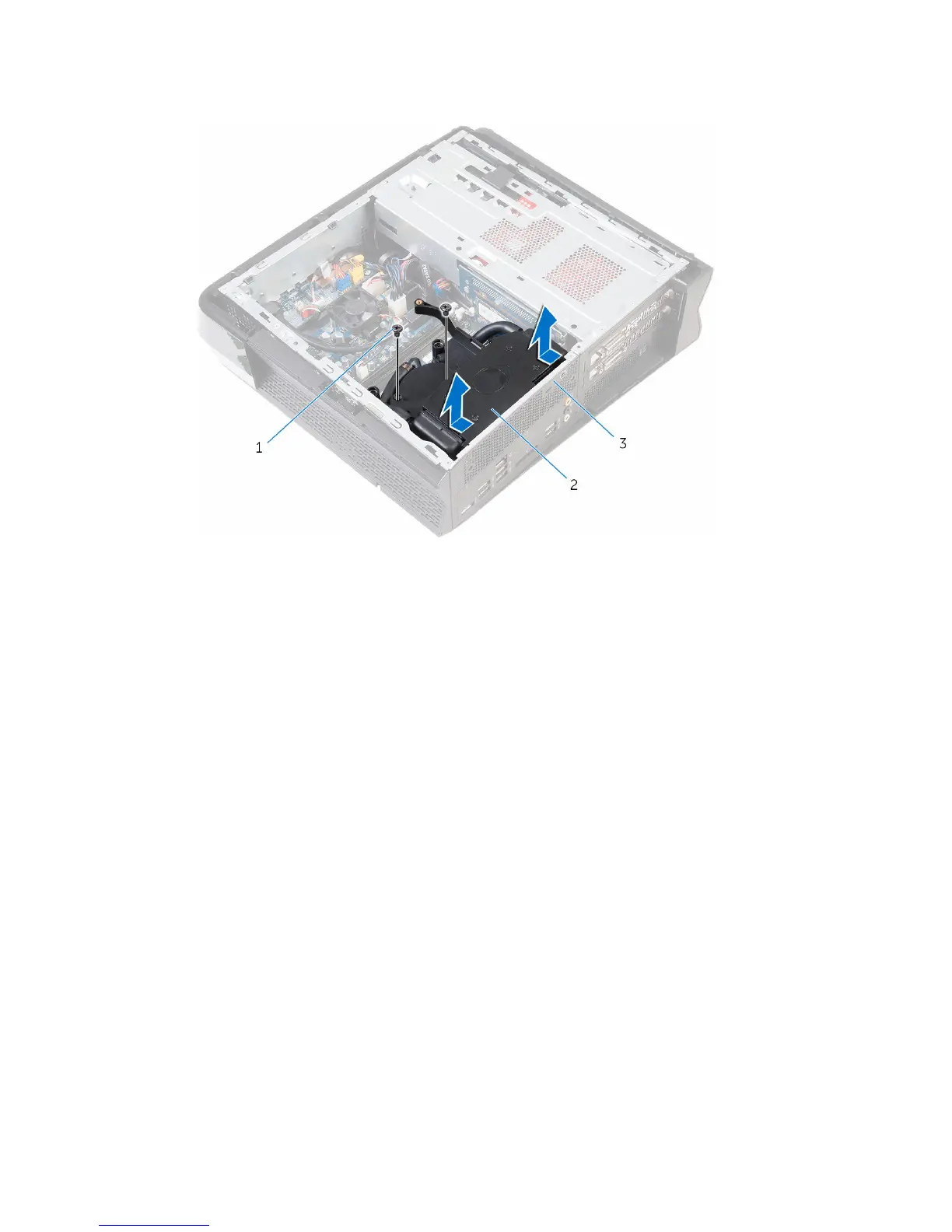

7 Slide the radiator towards the front of the computer and release it from the
chassis.
1 screws (2) 2 radiator
3 chassis
8 Lift the radiator and hold it as shown in the image below to remove the
thumbscrews that secure the processor cooler to the system board.
16
