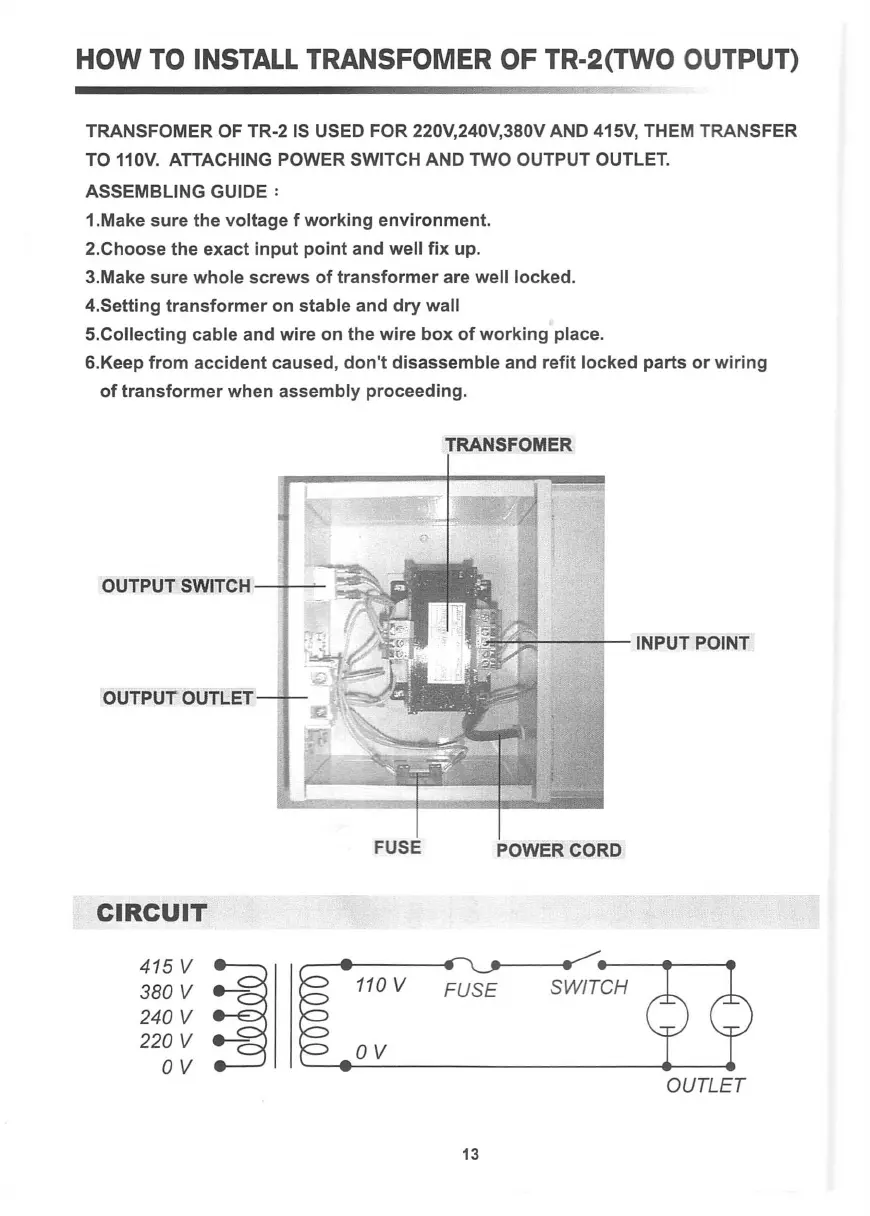

HOW TO INSTALL TRANSFOMER OF TR-2(TW0 OUTPUT)
TRANSFOMER OF TR-2IS USED FOR 220V,240V,380V AND 415V, THEM TRANSFER
TO 110V. ATTACHING POWER SWITCH AND TWO OUTPUT OUTLET.
ASSEMBLING GUIDE:
1.Make sure the voltage f working environment.
2.Choose the exact input point and well fix up.
3.Make sure whole screws of transformer are well locked.
4.Setting transformer on stable and dry wall
5.Collecting cable and wire on the wire box of working place.
6.Keep from accident caused, don't disassemble and refit locked parts or wiring
of transformer when assembly proceeding.
OUTPUT OUTLET
POWER CORD
CIRCUIT
415V ~
~~~~
:
OV
OUTLET
