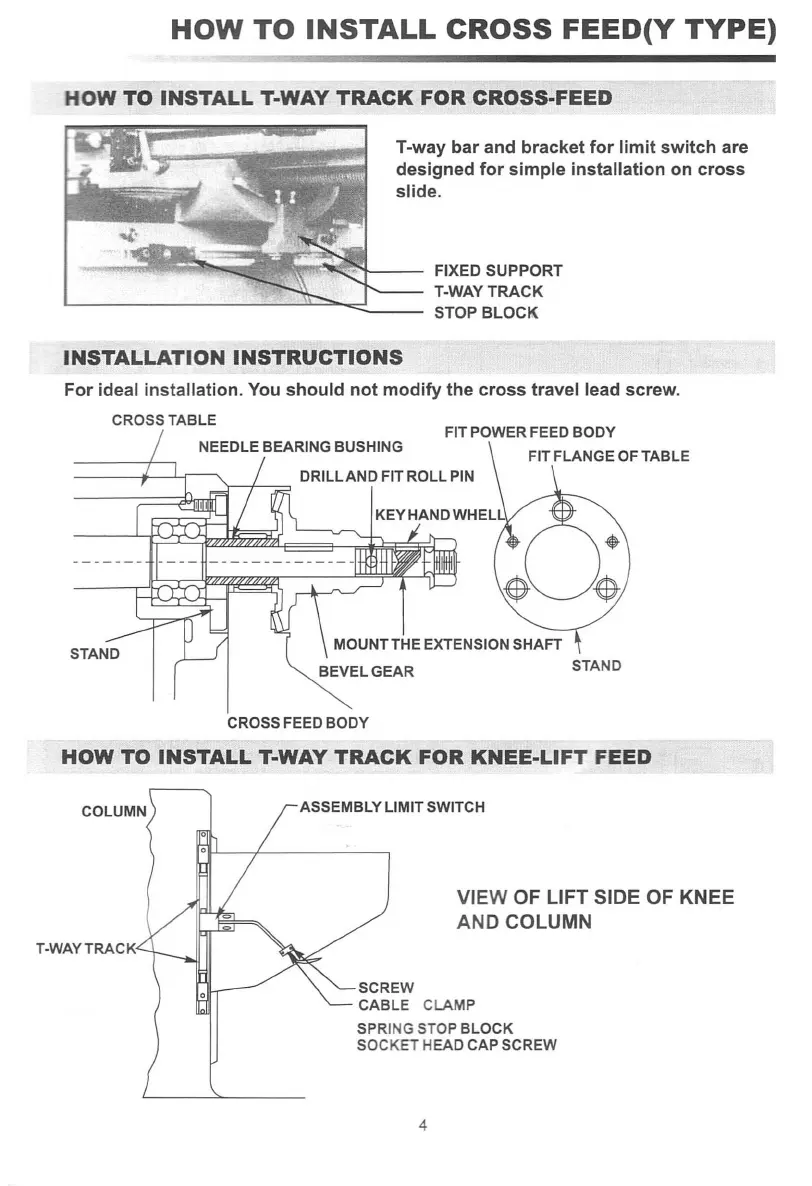

HOW TO INSTALL CROSS FEED(Y TYPE)
HOW TO INSTALL T-WAY TRACK FOR CROSS-FEED
T-way bar and bracket for limit switch are
designed for simple installation on cross
slide.
-_II"
::;:::JC=I~"""" •.•~~~~~--
FIXED SUPPORT
T-WAYTRACK
L- ~~~~
STOP BLOCK
INSTALLATION INSTRUCTIONS
For ideal installation. You should not modify the cross travel lead screw.
CROSS TABLE
FIT POWER FEED BODY
STAND
CROSS FEED BODY
HOW TO INSTALL T-WAY TRACK FOR KNEE-LIFT FEED
T-WAYTRACK
ASSEMBLY LIMIT SWITCH
VIEW OF LIFT SIDE OF KNEE
AND COLUMN
SCREW
CABLE CLAMP
SPRING STOP BLOCK
SOCKET HEAD CAP SCREW
4
