Alinco DR-130 - Adjustment Points Locations; Adjustment Quick Reference

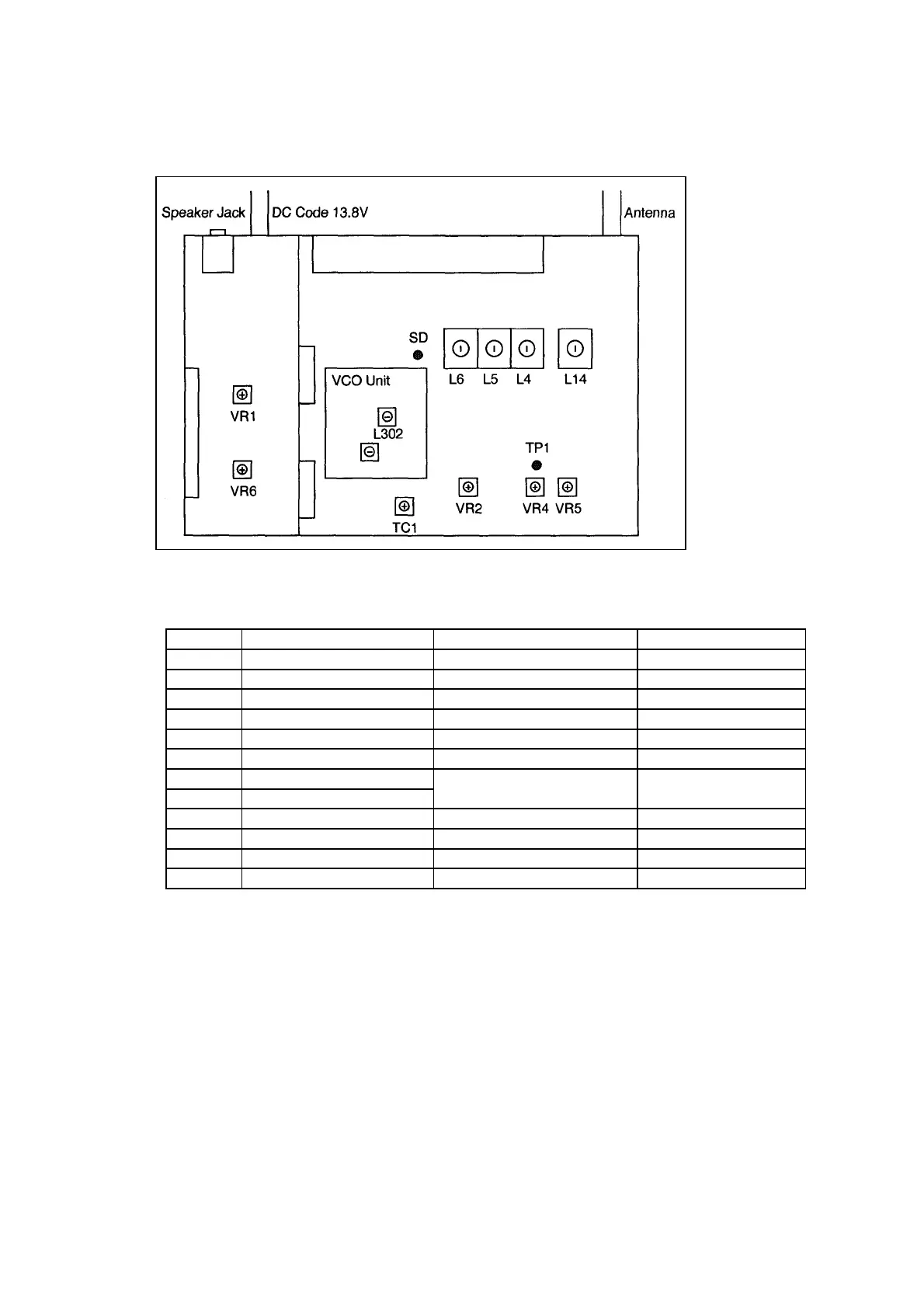

3) Adjustment Points
4) Adjustment Quick Reference
SSG Output = EMF
Parts Item Specifications Specifications
L4 RX Sensitivity -10dBpV (12dB SINAD) -10dBpV (12dB SINAD)
L5 RX Sensitivity -10dBpV (12dB SINAD) -10dBpV (12dB SINAD)
L6 RX Sensitivity -10dBpV (12dB SINAD) -10dBpV (12dB SINAD)
L14 RX Sensitivity -10dBpV (12dB SINAD) -10dBpV (12dB SINAD)
L302 VCO Frequency 1.8V~2.2V 1.8V~2.2V
TC1 Reference Frequency 145.00MHz +/-100Hz 145.00MHz +/-100Hz
VR1 TX High Power 52W +/- 1.0W 52W +/- 1.0W
10.5W +/- 0.5W (EZ) 10.5W +/- 0.5W (EZ)
VR2 Deviation 4.7kHz +/-0.2kHz 2.4kHz +/-0.1kHz
VR4 Mic Gain 4.0kHz +/-0.2kHz 2.0kHz +/-0.1kHz
VR5 S Meter 15dBu "Full" 15dBu "Full"
VR6 TX LowPower 5W+/-0.5W 5W+/-0.5W
Page 30
