back in place and tightening star nut.
11. Open valve assembly and check for leaks.
NOTE: Foul smelling diesel fuel is an indication of
micro biological contamination. A change in fuel
source is recommended. Always carry spare elements
as one thankful of contaminated fuel will plug filter
elements prematurely.
NOTE: Intervals stated are for normal operating
conditions. The intervals suggested may be shortened
(or lengthened) as determined by the presence
(or absence) of the indicated condition.

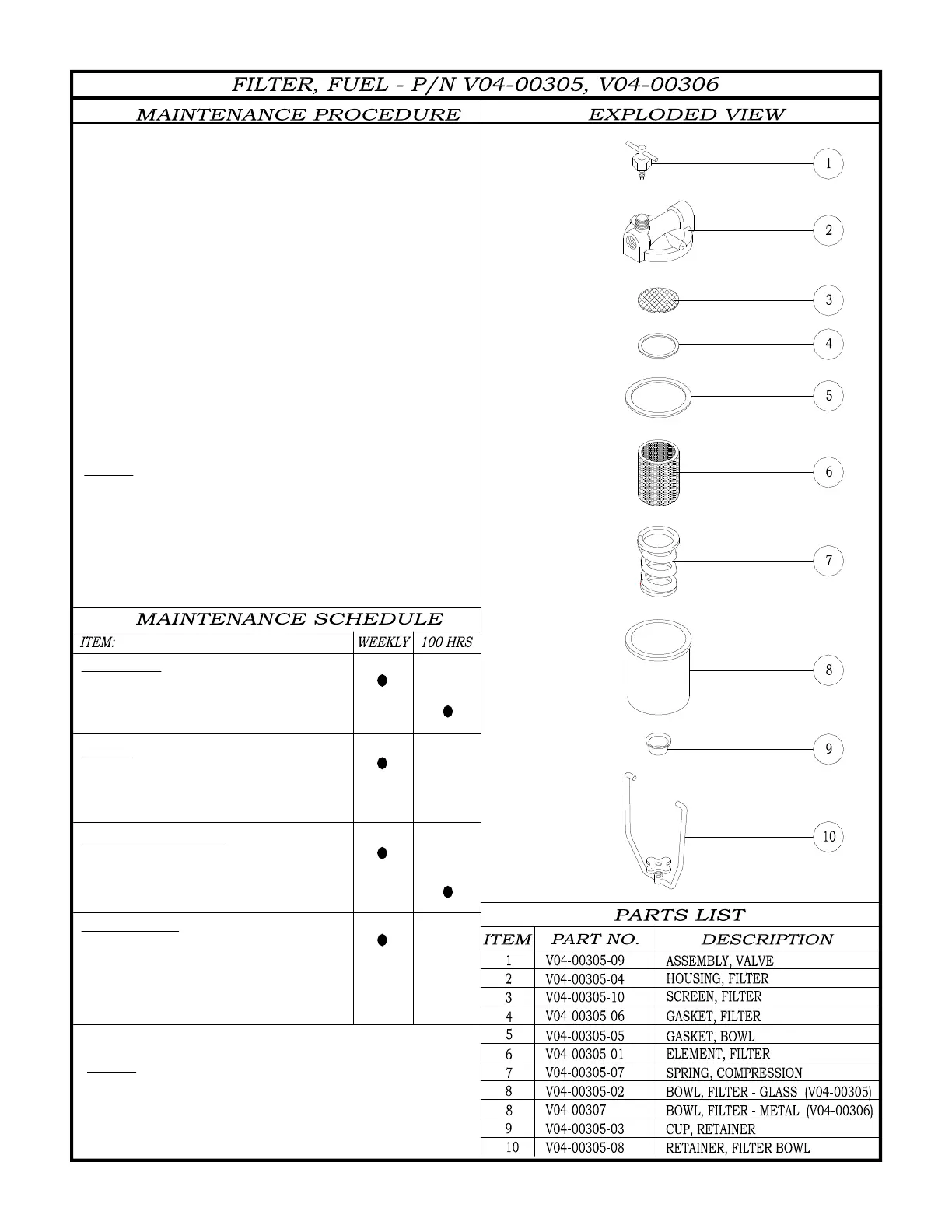

1. Close valve (ITEM 1) by turning clockwise.
2. Loosen star nut while supporting bowl and swing
retainer (ITEM 10) to the side freeing bowl and its
components.
GASKETS:
A. Inspect for deterioration or
tearing.
B. Remove and replace.
BOWL:
Inspect rim and bowl to insure it
is free of nicks, cracks, or
scratches.
FILTER ELEMENT:
A. Inspect for damage or
deterioration.
B. Remove and replace.
FUEL BOWL:
A. If contaminants are found,
check more frequently.
B. If no contaminates are found,
check less frequently.
3. Remove element (ITEM 6) and clean by using a
soft brush and naphtha or clean fuel.
4. Inspect element for damage or deterioration.
5. Inspect the rim of the bowl (ITEM 8) to insure it is
free of nicks and scratches.
6. Remove the gasket (ITEM 4) and screen (ITEM 3).
7. Clean and inspect gasket and screen.
8. Reinstall gasket and screen.
9. After cleaning bowl, reinstall spring (ITEM 7) and
element.
10. Reinstall bowl and components swinging retainer
12-01-00 Z08-00021ECN-02397 Supersedes 03-86 Z08-00021
20
