ALLEN & HEATH Qu-16 Technical Notes

ALLEN&HEATH TB1403 - Qu-16 Phantom Power Hot Plugging Page 2/6
Disassembly Instructions
For disassembly instructions please see pages 6,8,10 & 18 the Qu16 service manual which can be
downloaded from our website.

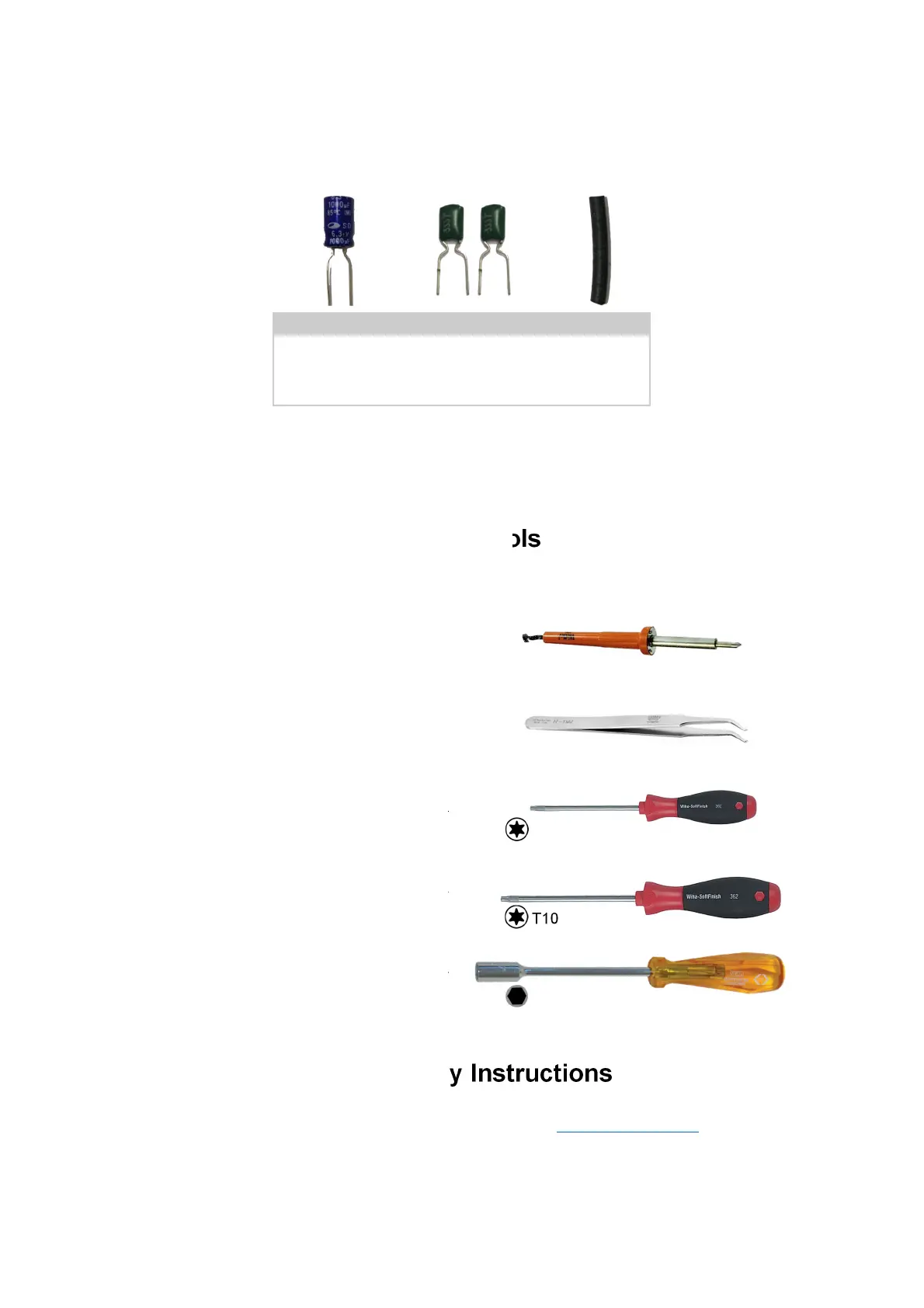

Required Components
We can provide these free of charge on request.
Contact Technical Support to order.
Description Quantity A&H Part Number
Electrolytic Capacitor 1000uF 6.3V 1 AF8123
Mylar Capacitor 0.0022uF 100V 2 AF0151
17mm H12 Rubber Sleeving 1.2mm 1 AH0316
Soldering Iron & Solder
SMD Tweezers
T8 Torx Screwdriver
T10 Torx Screwdriver
9mm Nut Driver
Required Tools
T8
T10
9mm

ALLEN & HEATH Qu-16 Specifications

General

Sample rate	48 kHz
Channels quantity	16 channels
Digital sound processing	- bit
Output impedance	75 Ω
Built-in display	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	82 W
XLR out	12
RJ-45 ports quantity	1
Headphone connectivity	6.3 mm
Number of microphone inputs	16
DJ mixer	-
Product color	Black
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	500 mm
Width	440 mm
Height	186 mm
Weight	10000 g
Package depth	680 mm
Package width	610 mm
Package height	350 mm
Package weight	13500 g
