19 WZ16:2DX AND WZ12:2DX USER GUIDE
DIGITAL STEREO EFFECTS

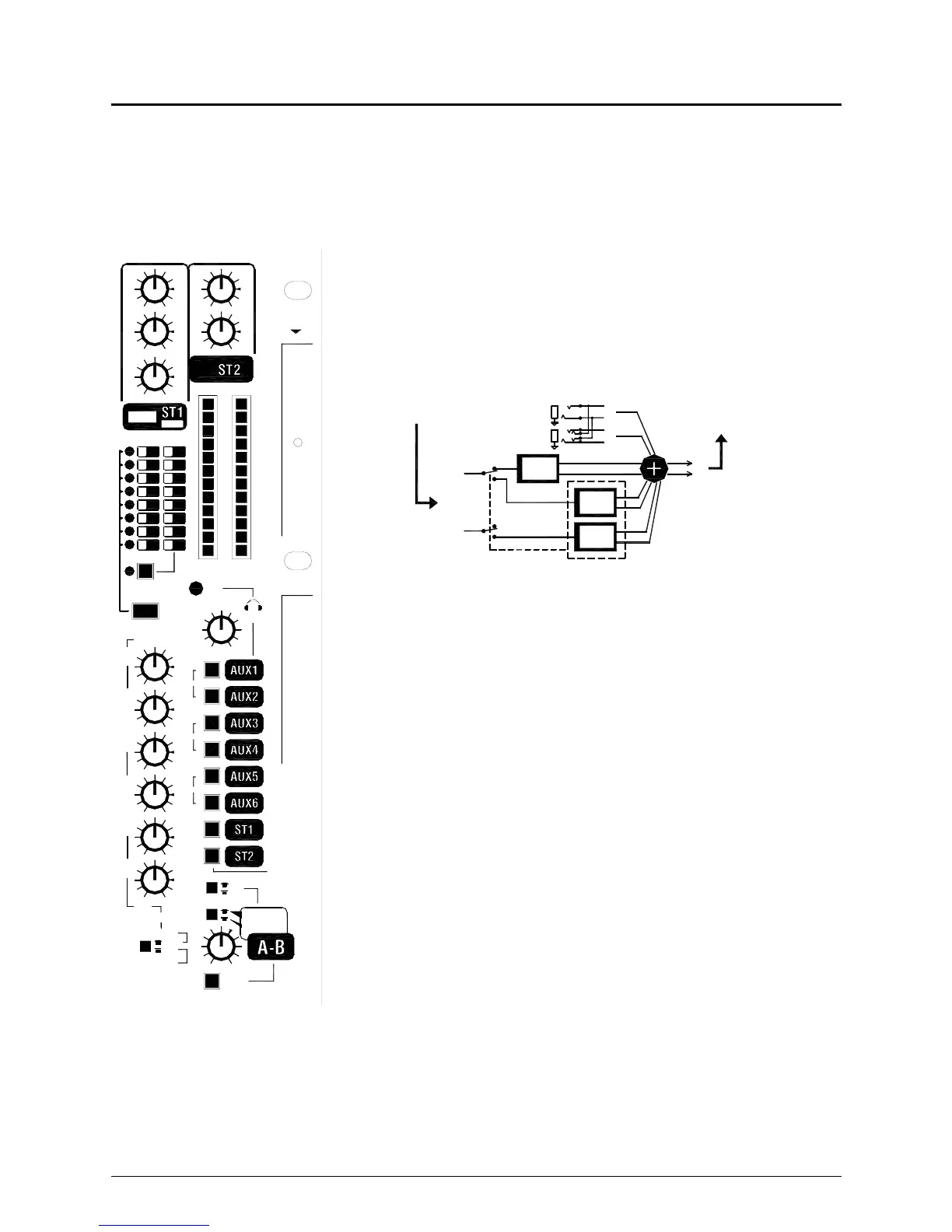

The WZ12:2DX and WZ16:2DX are provided with a built-in stereo digital effects processor. This can be
configured as a single stereo effect fed from aux 5 or as two independent stereo effects fed respectively from
aux 5 and aux 6.
In both single and dual modes the processed signal is routed internally to
the ST1 stereo return as shown below. This connection is after the ST1
input connectors so external signal processing can also be patched into
this input if required. This way you can have the internal and external
effects mixing into one stereo return input. This provides up to three stereo
effects returning through ST1. The processed signals can be routed to LR,
Aux 1 and Aux 2 using the stereo return facilities. Note that Aux 5 and 6
sends are always available on their respective connectors. The internal
effects unit can be disabled using its OFF mode if you prefer to use
external effects processors fed from Aux5 and Aux6 instead.
AUX 1(2) LEV – Routes the mono sum of the stereo effects return to the
aux mix. This lets you add effects such as reverb to the monitor mixes.
L-R LEV Routes the stereo effects return to the main mix.
ST1 ON – Switches the ST1 return channel on when pressed, off when
released. This affects the return to L-R and the Aux1/2 and is used to turn
the effects on when they are required.
SELECT – Press this key to toggle through the available effects. The
column of 8 LEDs displays which effect is active. The last position with all
LEDs off disables the internal effects unit. Release the key once you have
reached the effect number you want.
BANK – The red LED lights when the second bank of 8 effects is active. In
single mode this selects effects 9 to 16. In dual mode this selects between
the Aux5 effects (1-8) and the independent Aux6 effects (9-16).
MODE – Selects single mode (switch up) or dual mode (switch down). Use
a pointed implement such as a pen tip to access the switch. It is under
panel to protect it from accidental operation during live performance.
The effects preset type is printed on the front panel. The Aux5 and Aux6
dual mode types are shown at the top, the Aux5 single mode types below.
These are the factory defaults. They can be overwritten with your own user
preferences using the Allen & Heath effects editing software running on a
PC and communicating with the MixWizard via MIDI.
RESET - To restore the factory defaults hold down the SELECT key while
powering up the mixer. The 8 FX LEDs flash in sequence followed by the
BANK LED flashing on then off to confirm the reset.
SI NGL E
DUAL
SELECT
MONO
5-6
6
3-4
4
3
5
1-2
2
1
LOCAL MONITOR
MONO OUT
ALT L- R OUT
+3
+6
+9
-16
-20
-12
-9
-6
-3
-30
LR
PFL
LEV
0
+16
OO
0
+6OO
0
+6
O +6
0
O
O +6
0
O
OO
0
+6
0
+4OO
0
+4OO
0
+4OO
0
+4OO
+4OO
+4OO
+10OO
2
8
0
1
01
9
4
3
7
5
6
0
L-R
1
AUX
2
AUX
1
AUX
L-R
POST
PRE
AUX
6
AUX
5
POST
4
AUX
3
AUX
2
AUX
1
AUX
PRE
FAC TORY
PRES ETS
EFFECTS
ALL UP = L-R
EFFECTS
PHASER
CHORUS
ECHO
DELAY13
14
15
16
SLAP DLY
HAL L
ROOM
STAGE9
10
11
12
STAGE1
CAT HEDRA L
ARENA
GAT ED REV
6
7
8
ROOM
HAL L
CHA MBER
PLA TE
2
3
5
4
DUAL
PH+ REV
CH+ REV
15
16
ECH O+ R EV
DLY+ REV
SLA P+ REV
CHORUS11
12
13
14
PING PONG
KARAOKE
GAT ED REV
ARENA
9
8
7
10
ROOM
2
CAT HEDRA L
CHA MBER
PLA TE
HAL L
4
3
6
5
STAGE
SI NGL E
1
BANK
10
9
13
12
11
16
15
14
6
8
7
5
4
3
2
1
AUX5 = 1- 16
AUX5 = 1- 8
AUX6 = 9- 16
MODE
SEND
+
+
EFFECT
EFFECT
DUAL
AUX6
9-16
EXT. I NPUT
AUX5
SINGLE
ST1
1-16
EFFECT
R
1-8
L/M
R
L
RETURN
-
-
MIX
ST1
