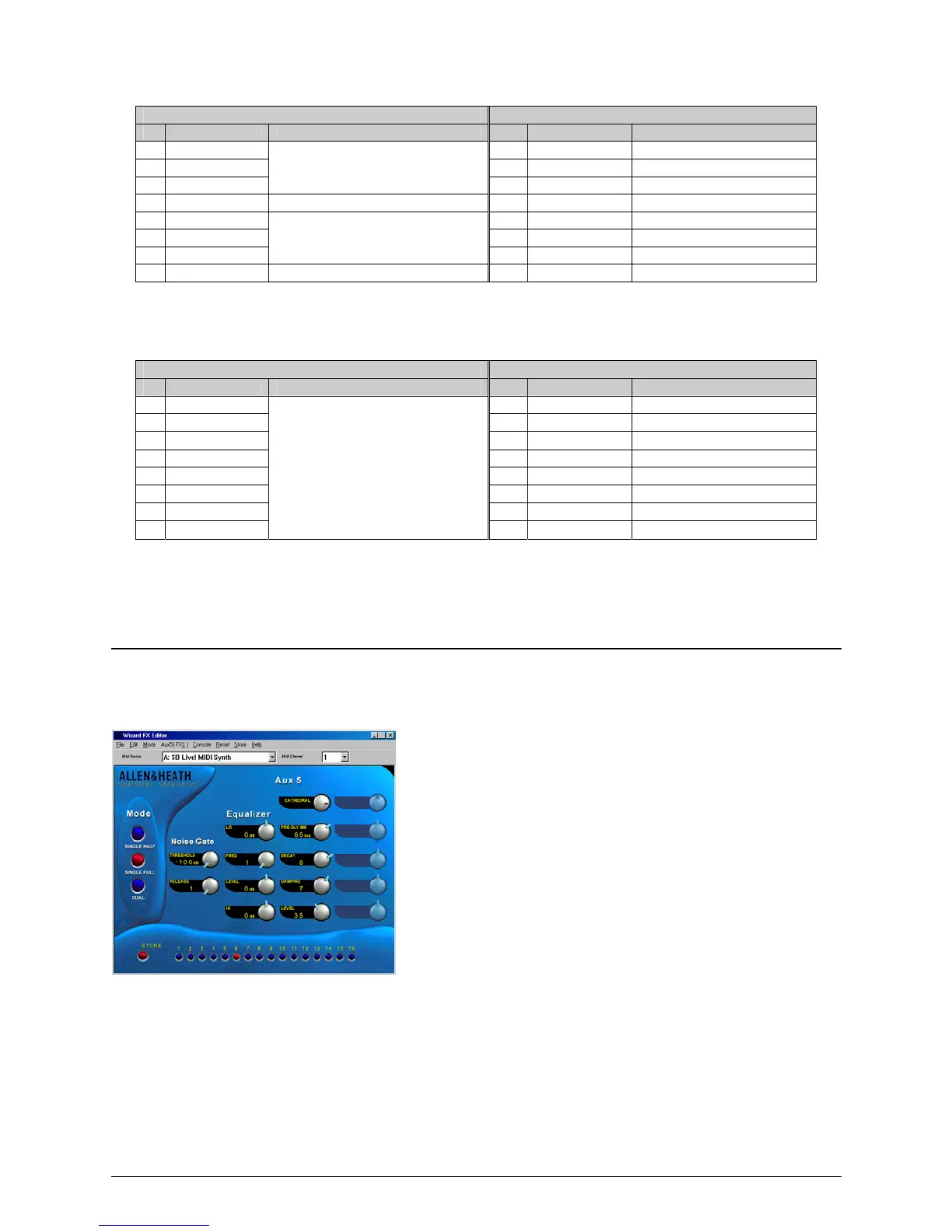

20 WZ16:2DX AND WZ12:2DX USER GUIDE
SINGLE MODE - ONE EFFECTS UNIT FED FROM AUX5
PRESET 1-8 PRESET 9-16
# NAME EFFECT # NAME EFFECT
1 Stage 9 Karaoke
Stereo Vocal Echo Effect
2 Room 10 Ping Pong
L-R repeat effect
3 Hall
Short Reverbs of increasing length and
differing brightness
11 Chorus
Stereo chorus effect
4 Plate
Typical studio plate reverb
12 Slap + Rev
Slap delay with hall reverb
5 Chamber 13 Dly + Rev
Delay with hall reverb
6 Cathedral 14 Echo + Rev
Echo with plate reverb
7 Arena
Long reverbs for special effects and
simulation of large spaces
15 Ch + Rev
Chorus with arena reverb
8 Gated Rev
Special reverb typical for snare drums
16 Ph + Rev
Phaser effect with plate reverb
DUAL MODE - TWO EFFECTS UNITS FED FROM AUX5 AND AUX6
PRESET 1-8 (AUX5) PRESET 9-16 (AUX6)
# NAME EFFECT # NAME EFFECT
1 Stage 9 Stage As effect #1
2 Room 10 Room As effect #2
3 Hall 11 Hall As effect #3
4 Plate 12 Slap Dly 100ms delay
5 Chamber 13 Delay 200ms stereo delay
6 Cathedral 14 Echo Stereo echo
7 Arena 15 Chorus Ideal for guitar chorus
8 Gated Rev
These effects are similar to
those in Single Mode
16 Phaser Instrument/vocal phaser
MIDI
A rear panel MIDI IN socket is provided. This lets you control the internal effects unit via MIDI. For example,
you could use a MIDI sequencer or controlling device to remotely change the preset type or bypass the effect.
Individual effects parameters can be changed and these loaded
back into the mixer to overwrite the factory default settings.
This is best done using the Allen & Heath MixWizard FX
Editor software running on a PC with MIDI port. You can
download this free from the Allen & Heath web site.
MIDI Channel Number - The factory default is MIDI channel 1.
To change this hold down the BANK key while powering up the
mixer.
While holding the BANK key use the SELECT key to step
through channels 1-16. The FX1-8 and BANK LEDs will light in
sequence. After cycling through MIDI channels 1 to 16, the
processor will then turn all channels on and then all off.
Release both BANK and SELECT keys when the required MIDI
channel is selected. The BANK LED will flash twice to confirm
channel change.
MIDI Effects Type Change – MIDI Program Change message CnH xxH
Where n = MIDI channel number
xx = 00H to 0FH (preset 1 to 16)
MIDI Effects Mute – MIDI Program Change message CnH xxH
Where xx = 65H (mute on) 64H (mute off)
