Allen-Bradley 1398 ULTRA Plus Series - Page 38

Publication 1398-5.1 — January 2000
2-20 Install the ULTRA Plus PDM Components

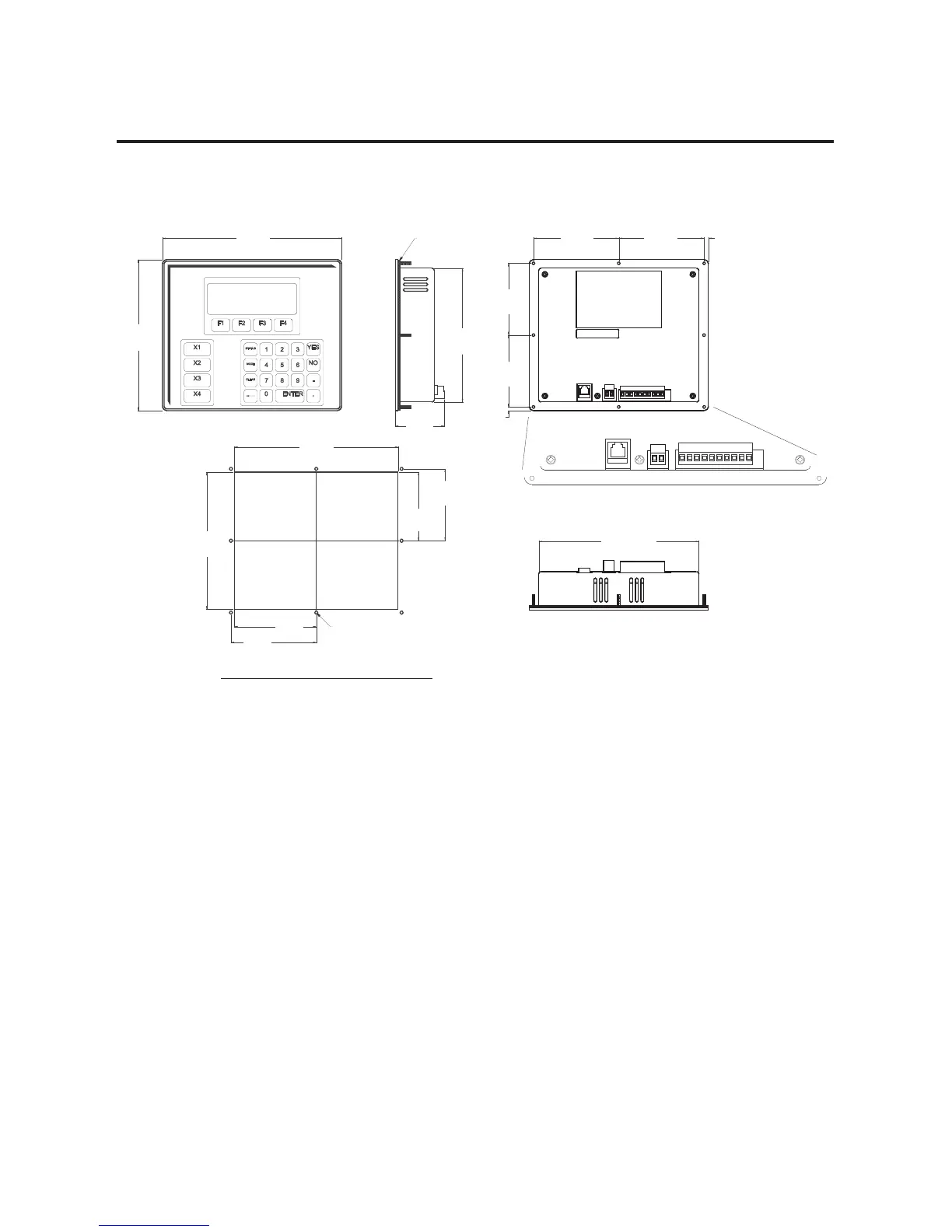

Figure 2.14
Operator Terminal (1398-HMI-003) Dimensions
RS-232 connector24 VDC
Not used
1 2 3 4 5 6 7 8 9 10
8.11
[206.0]
6.89
[175.0]
6.26
[159.0]
7.40
[188.0]
3.28
[83.25]
3.28
[83.25]
3.28
[83.25]
2.22
[56.5]
0.17
[4.25]
6.13 MAX.
[155.7]
7.27 MAX.
[184.7]
3.13
[79.5]
Ø 0.14 (8)
[3.5]Ø
3.86
[98.0]
3.70
[94.0]
3.86
[98.0]
3.86
[98.0]
0.20
[5.0]
GASKET SUPPLIED
WITH UNIT
RECOMMENDED PANEL CUTOUT DIMENSIONS
