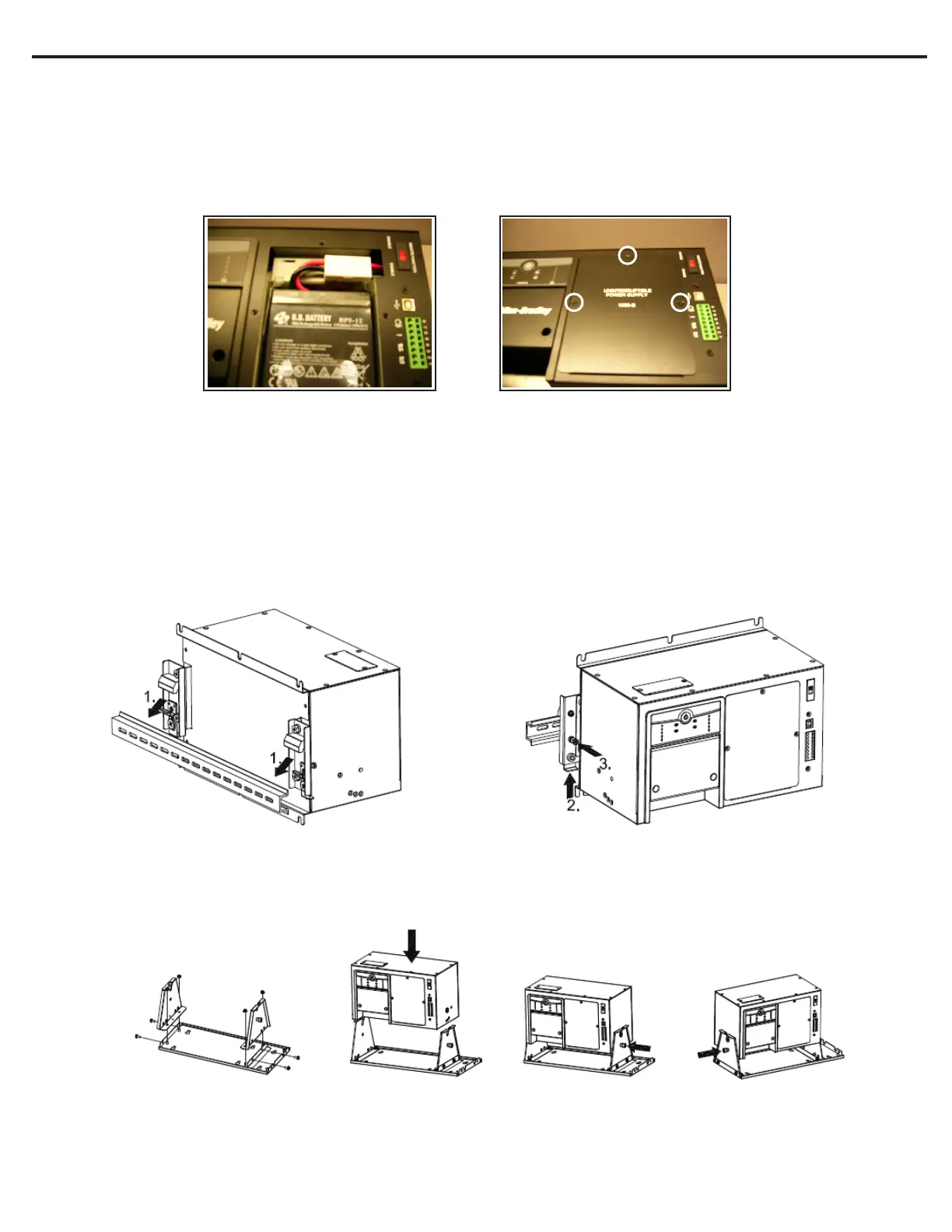

2. Remove the battery container, jumper and wire harness
from the battery compartment. Place the battery
container and batteries onto a flat surface. Use the
provided jumper wire to connect the batteries in series.
Connect the positive terminal (red) of the battery to the
negative terminal (black) of another battery. Connect
the red wire of the harness to the positive terminal (top
red) and the black wire of the harness to the negative
terminal (bottom black). See photo below for details.
Mount the UPS
The 1609-B products are designed to mount to heavy duty DIN-rail (see Diagram 1 below). The 1609-B
products are also designed with an option bracket assembly (1609-BRK) that allows it to mount to either
the panel or floor (see Diagram 2 below).
Diagram 1 - Standard DIN-Rail Mount
Diagram 2 - Optional Panel or Floor Mount
Batteries Wiring and Installation Instruction for the UPS (Cont’d)
5. To complete the battery installation, close the white connector retainer and reattach the battery door with
the three screws (torque of 8.7+/-1.7 lb-in).
