Chapter 2 Organizing Tags
EXAMPLE
Single-dimension array
In this example, a single timer instruction times the duration of several steps. Each step requires
a different preset value. Because all the values are the same data type (DINTs) an array is used.
42367

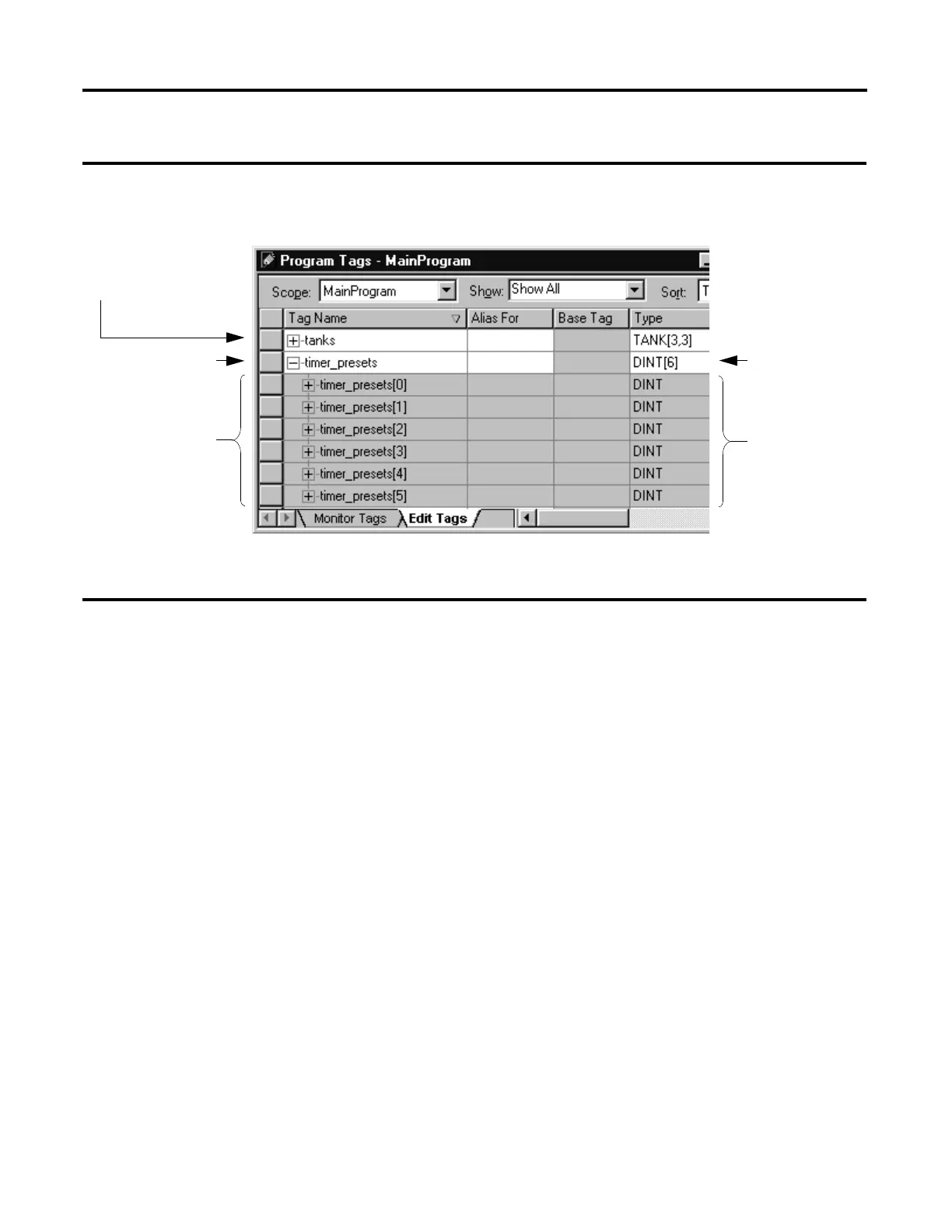

To expand an array and display its
elements, click the + sign.
To collapse an array and hide
its elements, click the – sign.
This array contains six
elements of the DINT data
type.
Six DINTs
Elements of
Timer_Presets
