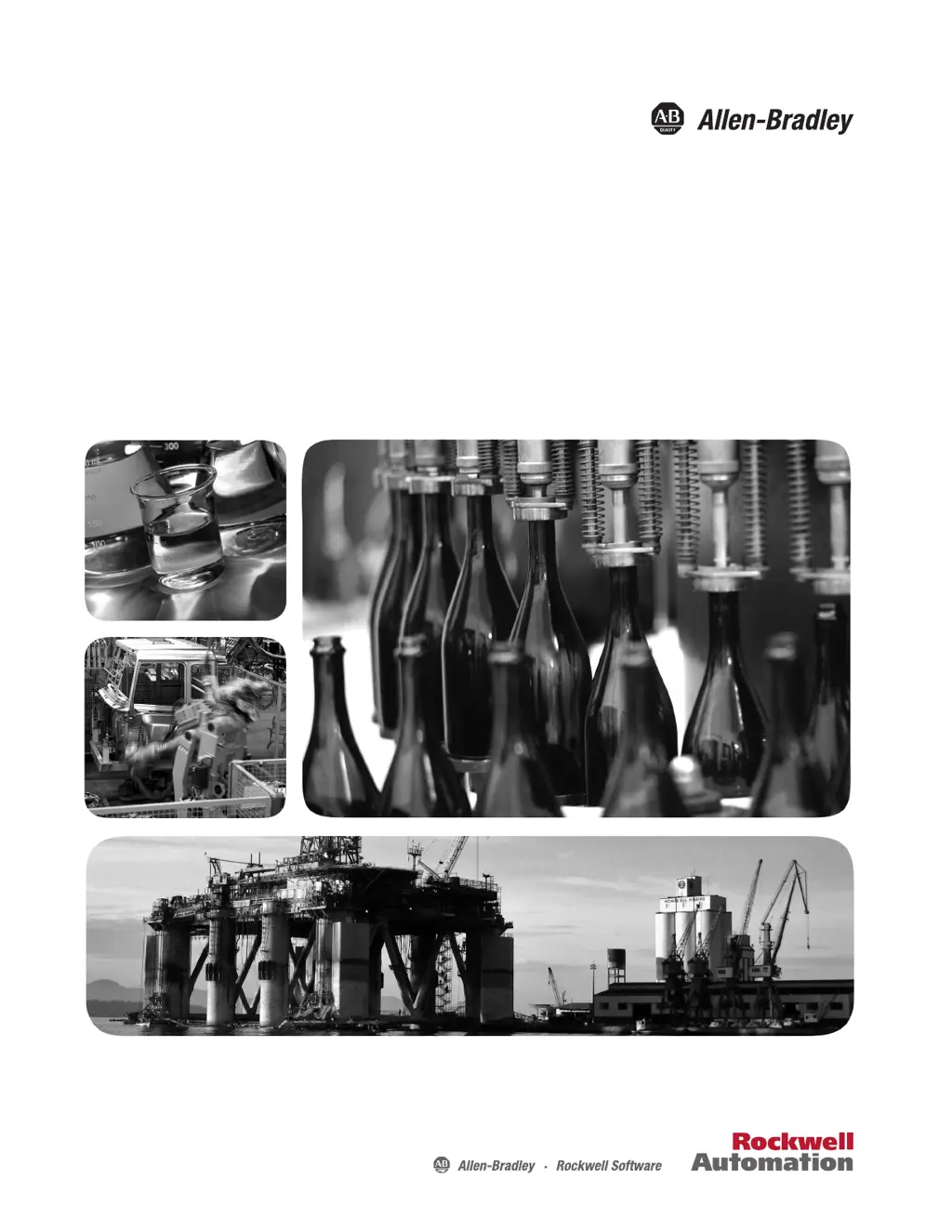

Kinetix 5700 Servo Drives
Catalog Numbers 2198-P031, 2198-P070, 2198-P141, 2198-P208, 2198-RP088, 2198-RP200, 2198-RP263, 2198-RP312,
2198-D006-ERS3, 2198-D012-ERS3, 2198-D020-ERS3, 2198-D032-ERS3, 2198-D057-ERS3, 2198-S086-ERS3,
2198-S130-ERS3, 2198-S160-ERS3, 2198-S263-ERS3, 2198-S312-ERS3, 2198-D006-ERS4, 2198-D012-ERS4,
2198-D020-ERS4, 2198-D032-ERS4, 2198-D057-ERS4, 2198-S086-ERS4, 2198-S130-ERS4, 2198-S160-ERS4,
2198-S263-ERS4, 2198-S312-ERS4, 2198T-W25K-ER, 2198-CAPMOD-2240, 2198-CAPMOD-DCBUS-IO,
2198-DCBUSCOND-RP312
User Manual
Original Instructions

Table of Contents

Other manuals for Allen-Bradley 2198-D020-ERS3

Preview: Original Instructions
Original Instructions4 pages

Questions and Answers

  • M
    Michael RogersAug 21, 2025
    What to do if Allen-Bradley Servo Drives motor does not respond to a command?
    • N
      Natalie WallaceAug 21, 2025
      If your Allen-Bradley Servo Drives motor isn't responding to commands, here's what you can check: * The axis cannot be enabled until stopping time has expired: Disable the axis, wait the configured stopping time, and enable the axis. * Open motor wiring: Check the wiring. * Improper motor cable shield connection: Check feedback and cable shield connections. * Motor malfunction: Repair or replace the motor. * Broken coupling between motor and machine: Check and correct the mechanics. * Incorrectly set primary operation mode: Check the programmed primary operation mode. * Incorrect velocity or torque limits: Check and properly set the limits. * Brake connector not wired: Check brake wiring.
  • S
    Stacy MckeeAug 25, 2025
    What to do if Allen-Bradley Servo Drives motor operates erratically?
    • P
      prestonwilliamAug 25, 2025
      If your Allen-Bradley Servo Drives motor is operating erratically, locking into position, running without control, or with reduced torque, the motor power phases U and V, U and W, or V and W may be reversed. Check and correct motor power wiring.
  • V
    veronicarichardsAug 28, 2025
    How to eliminate noise on Allen-Bradley Servo Drives command or motor feedback signal wires?
    • L
      Leroy EscobarAug 29, 2025
      To address noise issues on command or motor feedback signal wires in Allen-Bradley Servo Drives, consider these points: * Grounding issues: Verify grounding according to installation instructions, route wires away from noise sources. Refer to System Design for Control of Electrical Noise, publication GMC- RM001. * Line frequency interference: Verify grounding and route wires away from noise sources. * Variable frequency disturbances: Decouple the motor for verification and check/improve mechanical performance (e.g., gearbox or ballscrew mechanism).
  • V
    vasquezkatherineSep 1, 2025
    Why is my Allen-Bradley Servo Drives making abnormal noise?
    • C
      Carolyn ReynoldsSep 1, 2025
      Abnormal noise in your Allen-Bradley Servo Drives motor can stem from: * Motor tuning limits set too high: Run Tune in the Logix Designer application. * Loose parts inside the motor: Remove loose parts, return motor for repair, or replace the motor. * Loose through bolts or coupling: Tighten bolts. * Worn bearings: Return motor for repair. * Mechanical resonance: A notch filter might be required (refer to Axis Properties dialog box, Compliance tab in the Logix Designer application).
  • J
    Joseph MillerSep 5, 2025
    Why is there no rotation in my Allen-Bradley Servo Drives?
    • C
      Crystal SmithSep 5, 2025
      If your Allen-Bradley Servo Drives motor isn't rotating, check the following: * Loose or open motor connections: Check motor wiring and connections. * Foreign matter in the motor: Remove any foreign matter. * Excessive motor load: Verify the servo system sizing. * Worn bearings: Return the motor for repair. * Engaged motor brake: Check brake wiring and function, or return the motor for repair (if supplied). * Motor not connected to the load: Check coupling.
  • C
    Christina ByrdSep 8, 2025
    What causes Allen-Bradley Servo Drives motor overheating?
    • B
      Brian Smith DVMSep 8, 2025
      Overheating in your Allen-Bradley Servo Drives motor may be due to: * Excessive duty cycle: Change the command profile to reduce accel/decel or increase time. * Partially demagnetized rotor: Return the motor for repair, as this can cause excessive motor current.
  • S
    Shannon EvansNov 12, 2025
    Why is my Allen-Bradley Servo Drives axis unstable?
    • G
      Garrett CareyNov 13, 2025
      An unstable axis or system in your Allen-Bradley Servo Drives might be due to several reasons: * Incorrect or open position feedback device wiring: Check the wiring. * Unintentional Torque mode: Verify the programmed primary operation mode. * Motor tuning limits set too high: Run Tune in the Logix Designer application. * Improper position loop gain or position controller accel/decel rate: Run Tune in the Logix Designer application. * Improper grounding or shielding causing noise: Inspect wiring and ground. * Incorrect Motor Select limit: Check setups and run Tune in the Logix Designer application. * Mechanical resonance: A notch filter or output filter may be needed (refer to Axis Properties dialog box, Compliance tab in the Logix Designer application), or enable adaptive t...
  • D
    Desiree WilliamsNov 16, 2025
    Why can't I get the motor acceleration/deceleration I want with my Allen-Bradley Servo Drives?
    • D
      David ValdezNov 16, 2025
      If you're struggling to achieve the desired motor acceleration/deceleration with your Allen-Bradley Servo Drives, consider the following potential causes: * Torque Limit limits set too low: Verify that torque limits are set properly. * Incorrect motor selected in configuration: Select the correct motor and run Tune in the Logix Designer application again. * Excessive system inertia: Check motor size versus application need and review servo system sizing. * Excessive system friction torque: Check motor size versus application need. * Insufficient available current: Check motor size versus application need and review servo system sizing. * Incorrect acceleration limit: Verify limit settings and correct them, as necessary. * Incorrect Velocity Limit limits: Verify limit setting...
