Appendix B Accessories and Dimensions

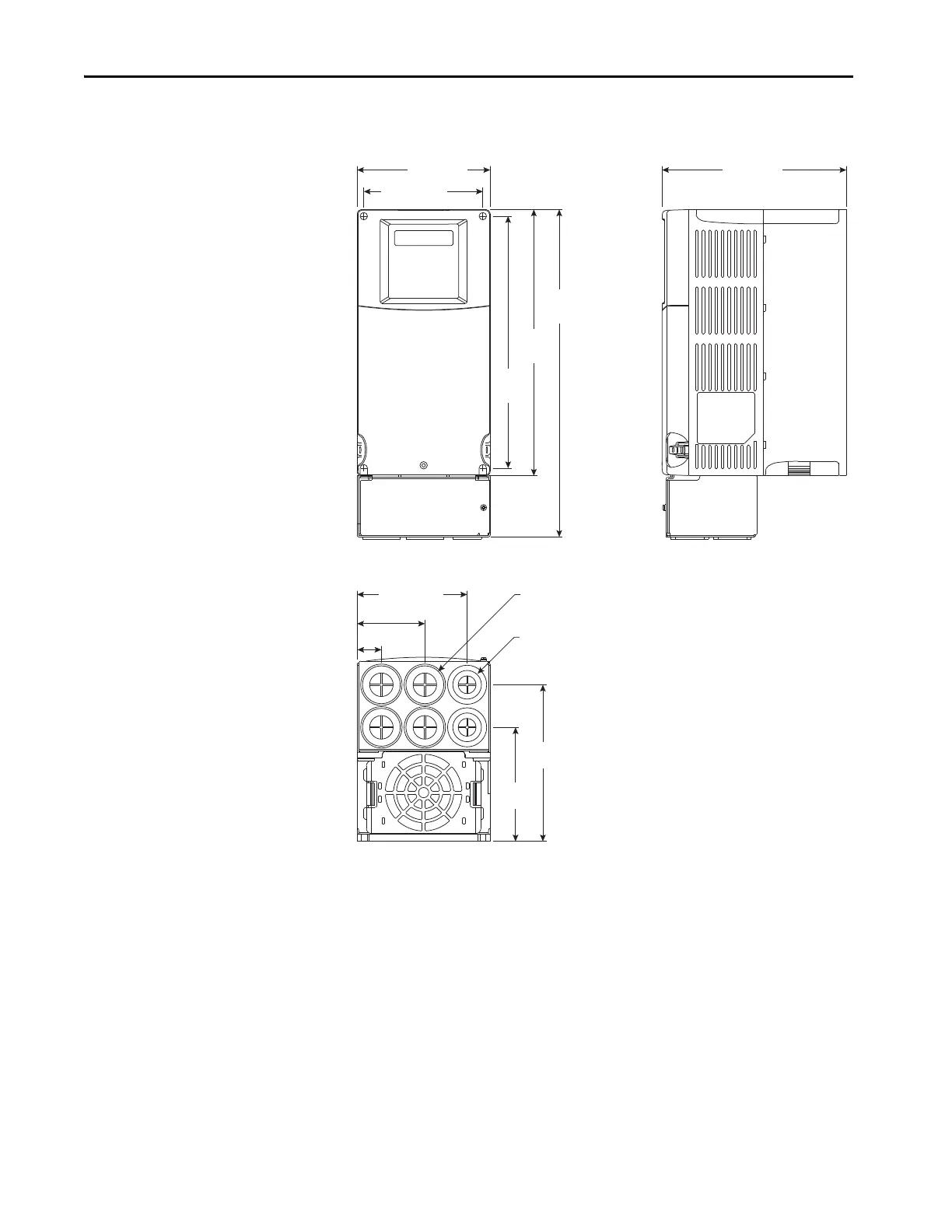

Figure 18 - PowerFlex 400 Frame C Drive
260
(10.2)
320
(12.6)
246
(9.7)
130.0 (5.1)
116.0 (4.57)
111.2
(4.38)
152.2
(5.99)
∅ 22.2
(0.87)
∅ 28.5
(1.12)
107.0 (4.21)
66.0 (2.60)
24.0 (0.94)
180.0 (7.1)
Dimensions are in millimeters and (inches)
