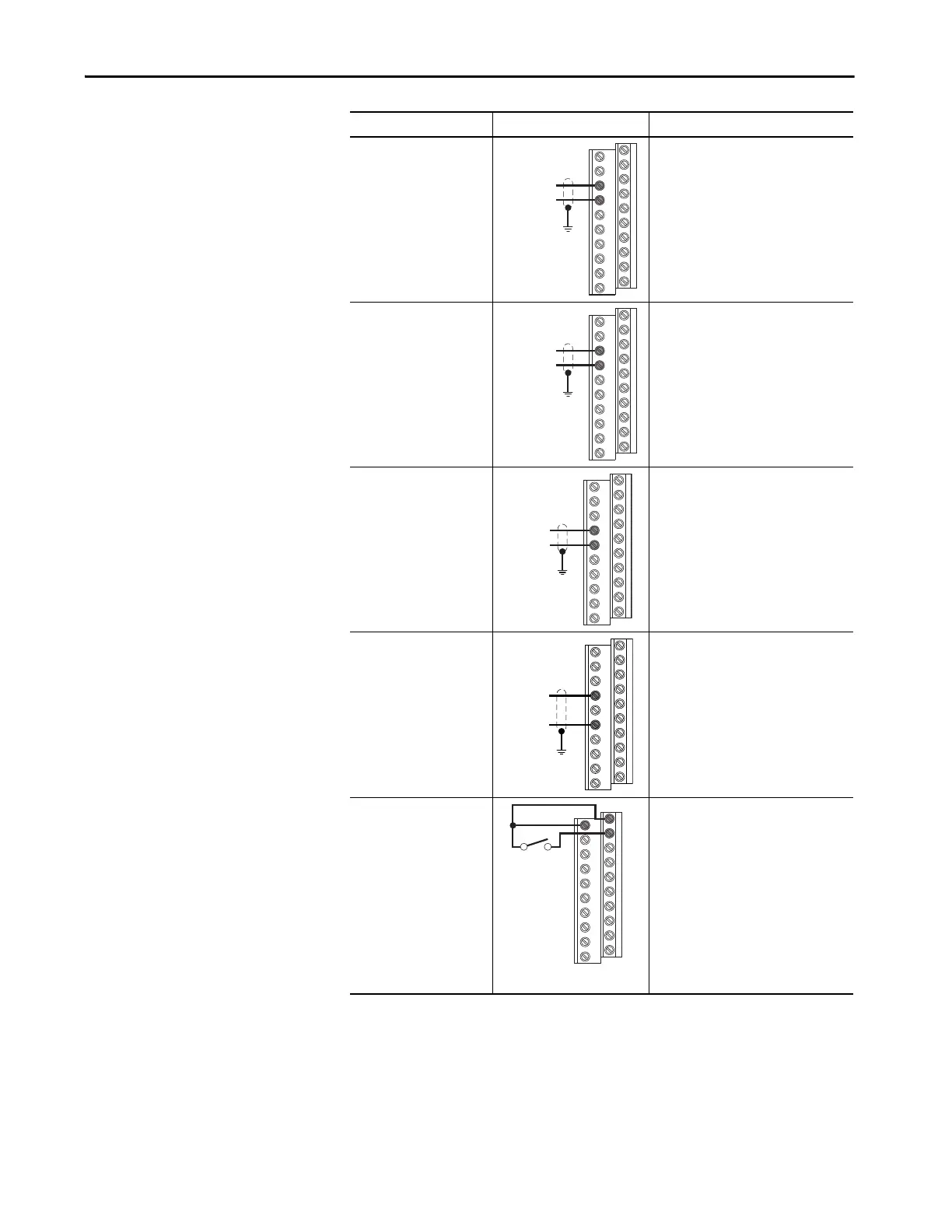

Analog Input
Unipolar Speed Reference,
0 to +10V Input
DIP Switch
AI1 = 10V
Parameters
P038 [Speed Reference] = 2 “Analog In1”
T069 [Analog In 1 Sel] = 2 “0-10V”
Scaling
T070 [Analog In 1 Lo]
T071 [Analog In 1 Hi]
Check Results
d305 [Analog In 1]
Analog Input
Unipolar Speed Reference,
4-20 mA Input
DIP Switch
AI1 = 20MA
Parameters
P038 [Speed Reference] = 2 “Analog In1”
T069 [Analog In 1 Sel] = 1 “4-20 mA”
Scaling
T070 [Analog In 1 Lo]
T071 [Analog In 1 Hi]
Check Results
d305 [Analog In 1]
Analog Output
Unipolar, 0 to +10V Output
• 1k Ohm Minimum
DIP Switch
AO1 = 10V
Parameters
T082 [Analog Out1 Sel] = 0 through 6
Scaling
T083 [Analog Out1 High]
T084 [Analog Out1 Setpt]
Analog Output
Unipolar, 4-20 mA Output
• 525 Ohm Maximum
DIP Switch
AO2 = 20MA
Parameters
T082 [Analog Out1 Sel] = 14 through 20
Scaling
T083 [Analog Out1 High]
T084 [Analog Out1 Setpt]
2 Wire Control
Sourcing (SRC),
Internal Supply,
Non-Reversing
• Input must be active for
the drive to run.
• When input is opened, the
drive will stop as specified
by P037 [Stop Mode].
• Drive will not run if I/O
Terminal 01 is open. Drive
will coast to stop if opened
while running
DIP Switch
SNK/SRC = SRC
Parameters
P036 [Start Source] = 2, 3, 4
P037 [Stop Mode] = 0 through 7
Input/Output Connection Example Required Settings
13
14
+
Common
13
14
+
Common
14
15
Common
+
14
16
Common
+
11
01
02
Stop-Run
