114 Rockwell Automation Publication 2711P-UM006E-EN-P - January 2017
Chapter 4 Windows CE Operating System

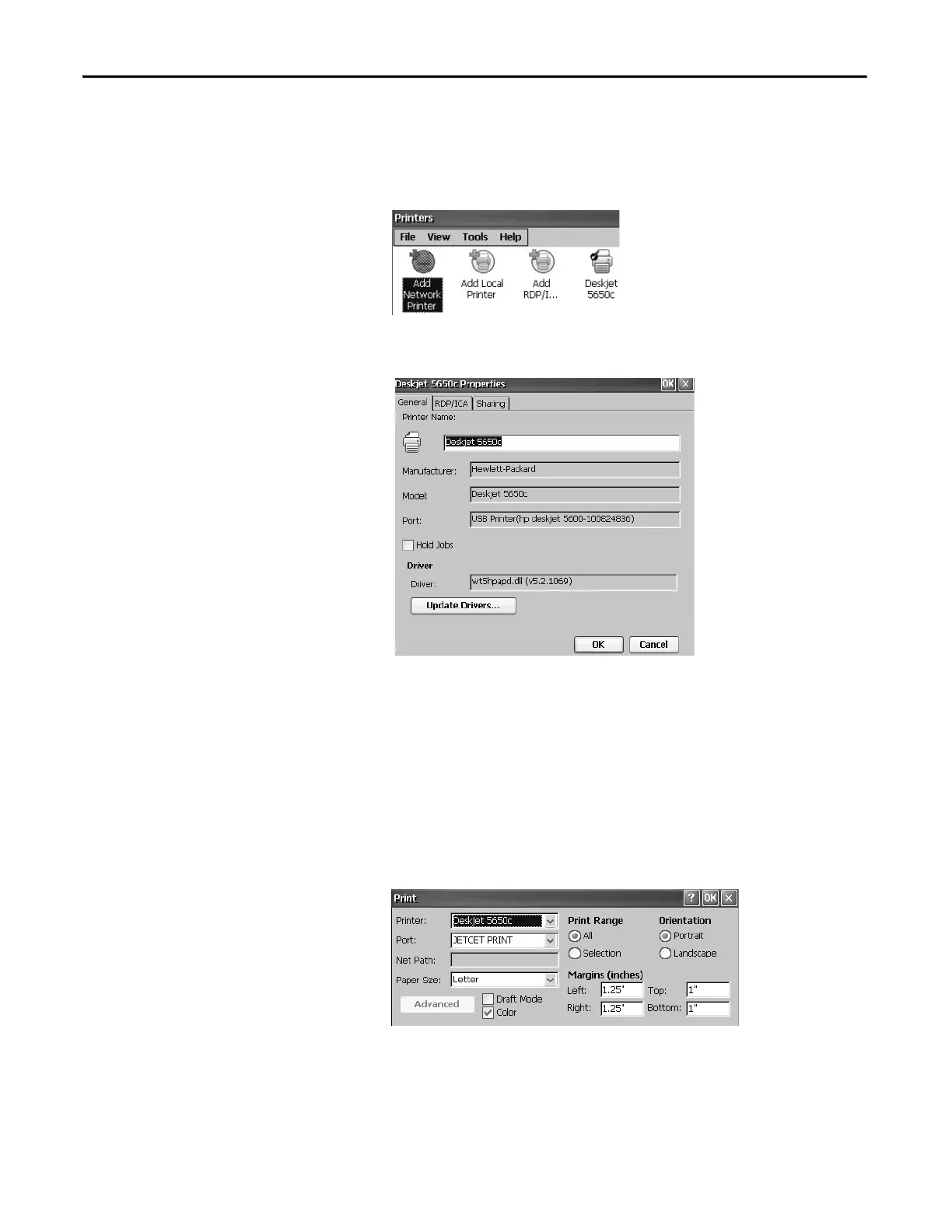

3. Verify printer installation from the desktop control panel by opening the
Printers applet.
Notice the icon for the Deskjet 5650C printer. The check mark indicates
this is the default printer.
4. From the File menu, choose Properties to view the properties of the
printer.
Printer configuration includes the printer name, manufacturer and model,
printer driver, and port-specific parameters.
5. Right-click the printer and print a test page to verify installation.
When printing from an application such as WordPad, a Print dialog box opens
where you can adjust print settings as needed.
• New printer configurations are retained through a power cycle.
• Printers set up through the desktop control panel are also available within
FactoryTalk View ME Station configuration mode when by pressing
Terminal Settings>Print Setup.
