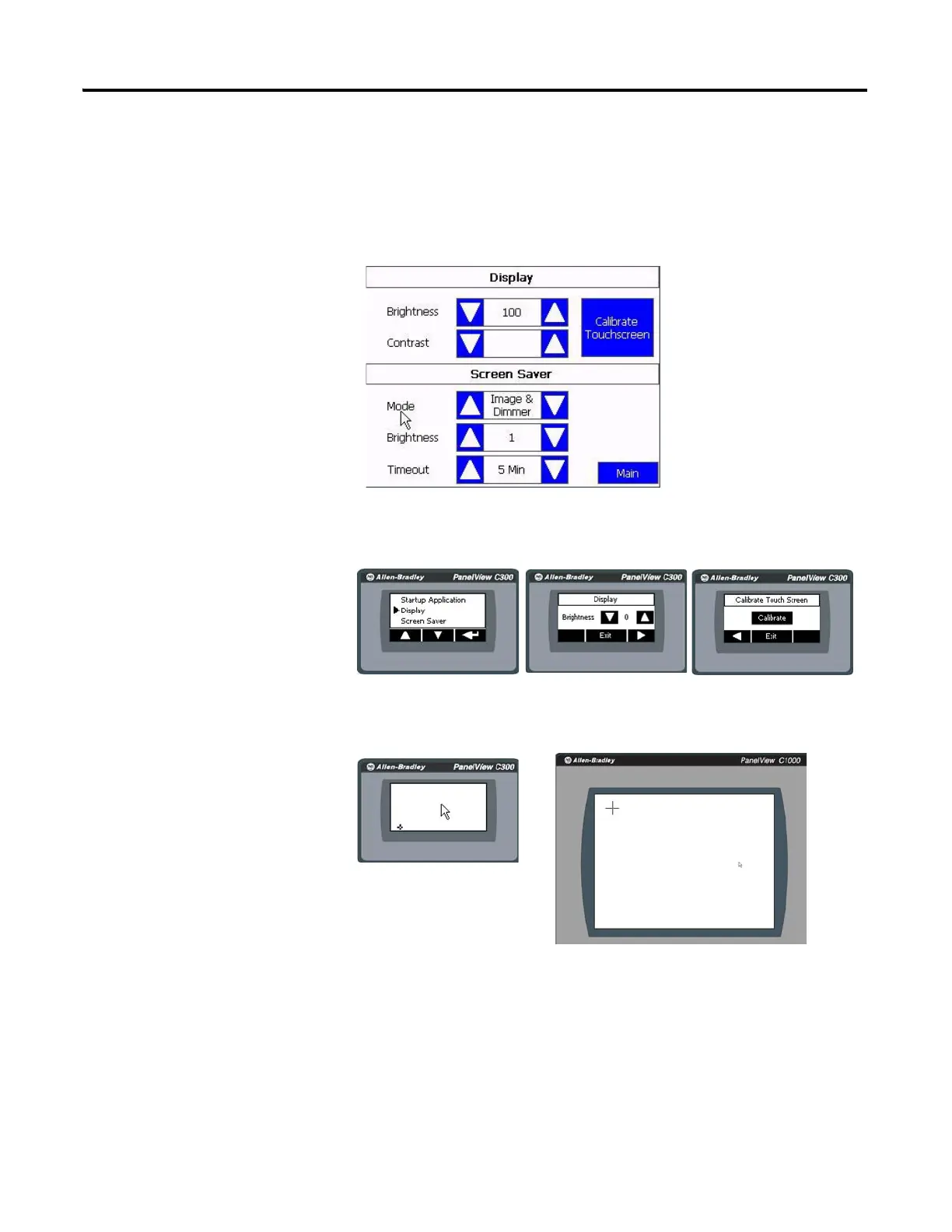

Follow these steps to calibrate the touch screen from the terminal.
1. Click Display on the menu list.
2. For C400, C600 and C1000 terminals, click Calibrate Touchscreen.
3. For C300 touch screen terminals, press the right arrow to go to the
calibration screen.
4. Carefully press and briefly hold stylus on the center of the target.
Repeat as the target moves around the screen.
