Rockwell Automation Publication 2711P-IN001J-EN-P - April 2018 15
PanelView Plus 700 to 1500 and PanelView Plus Compact 1000 Terminals and Display Modules

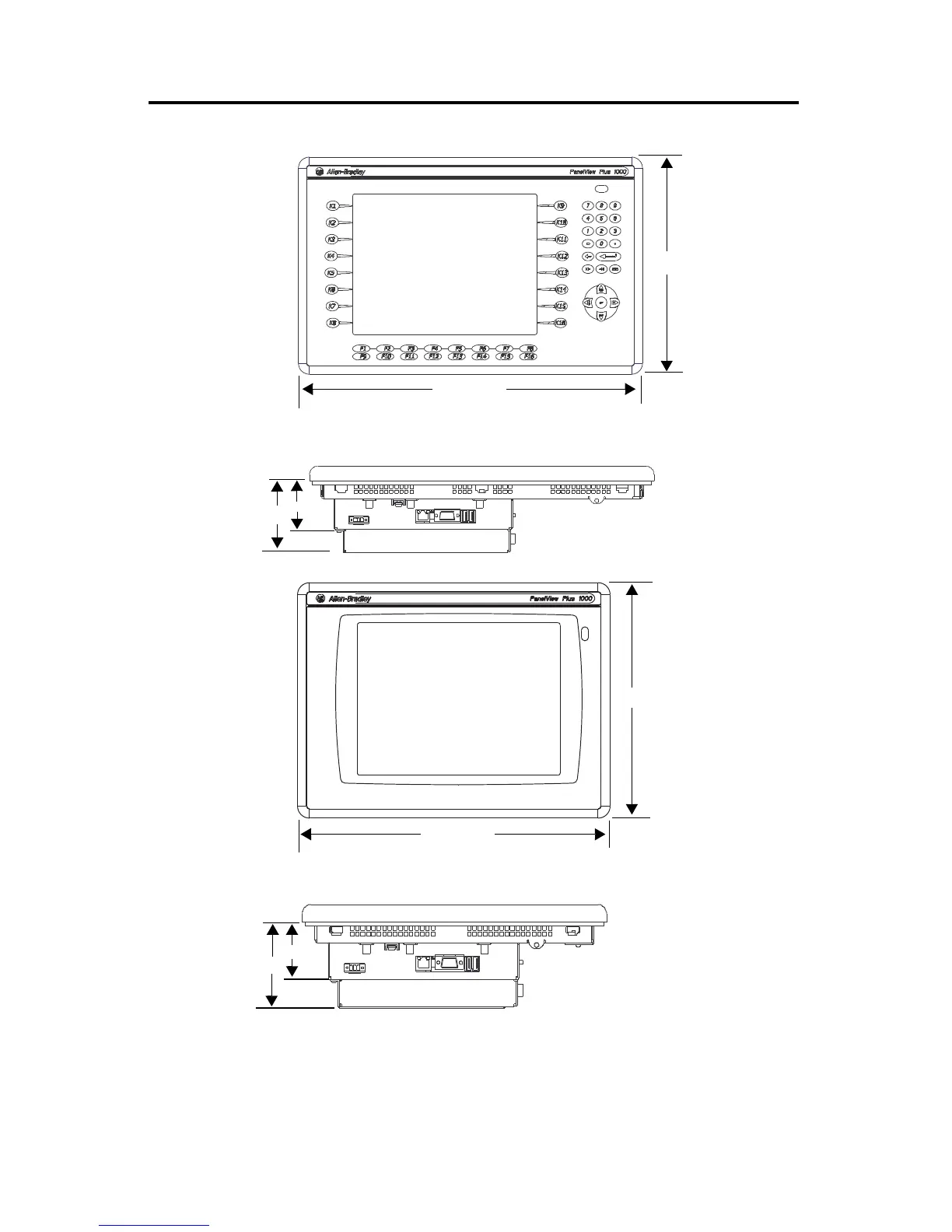

1000 Terminal Dimensions
Keypad or Keypad & Touch
Touch Screen
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Comm Module
a 55 (2.18) Display to Logic Module
248 (9.77)
399 (15.72)
b
a
b
a
329 (12.97)
248 (9.77)
