Rockwell Automation Publication 2711P-IN001J-EN-P - April 2018 13

PanelView Plus 700 to 1500 and PanelView Plus Compact 1000 Terminals and Display Modules

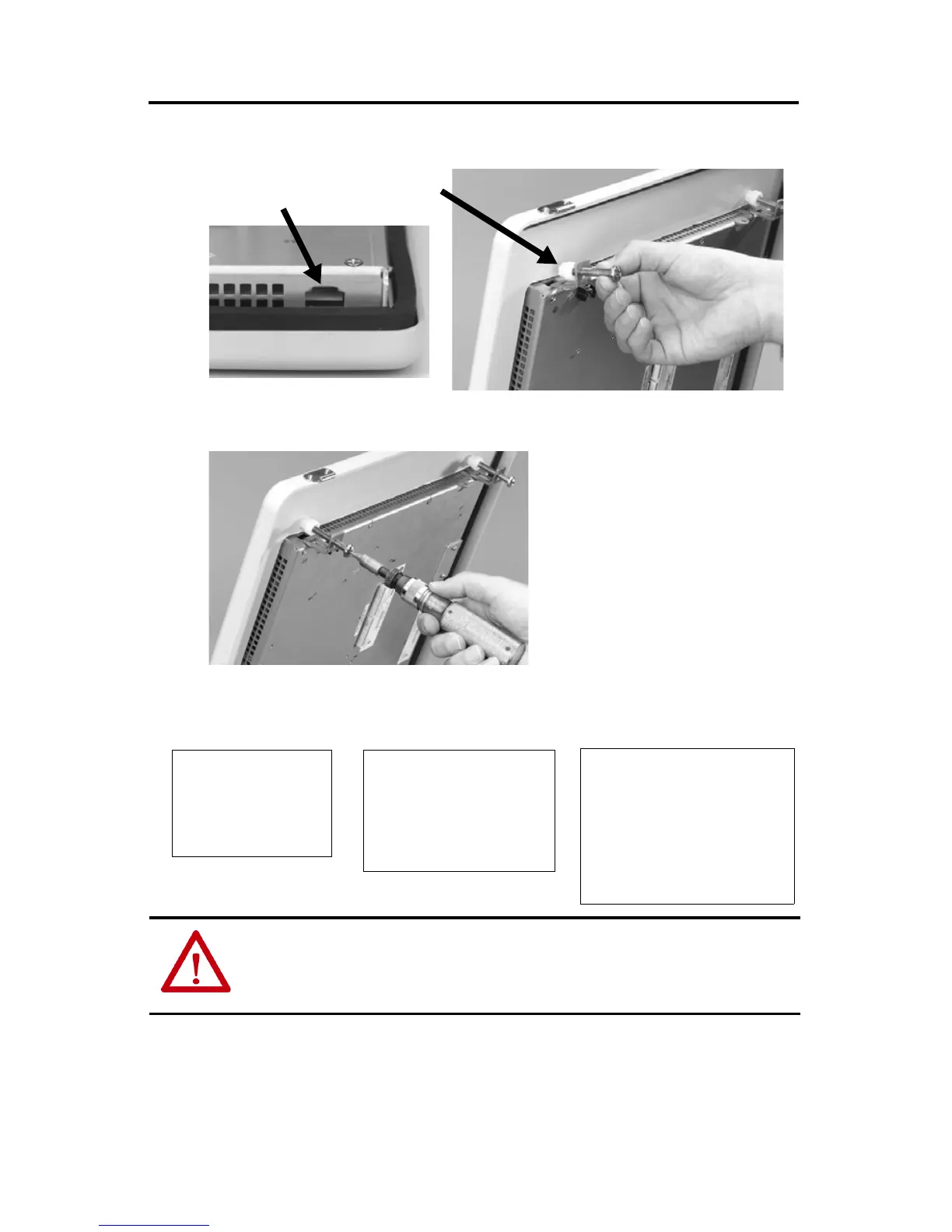

5. Slide the ends of the mounting clips into the slots on the terminal.

6. Tighten the mounting clip screws by hand until the gasket seal contacts the mounting

surface uniformly.

7. Tighten the mounting clip screws to a torque of 0.90…1.1 N•m

(8…10 lb•in) by using the specified torque sequence, making sure not to overtighten.

Tighten the mounting clips to the specified torque to provide a proper seal and

prevent damage to the product. Rockwell Automation assumes no responsibility

for water or chemical damage to the product or other equipment within the

enclosure because of improper installation.

Mounting Clip Slot

Mounting Clip

8 Clips

6 Clips

4 Clips
